3 Axis Double Stage Single Arm Compact Robot
Equipment Details

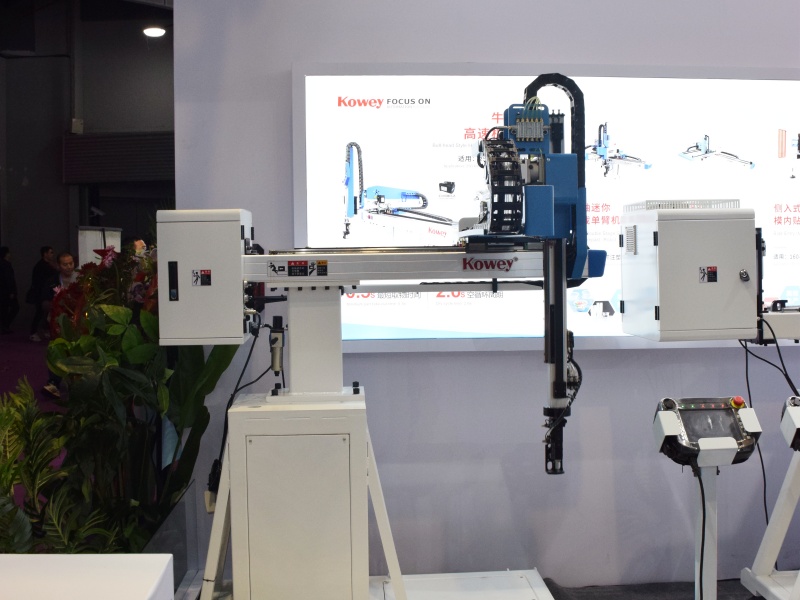

Featuring compact frame structure and double-stage telescopic arm design, this robot delivers more reasonable stroke and smaller footprint compared with traditional manipulators. Full-range 3-axis servo precise control enables accurate and controllable motion trajectory with smooth movement transitions, perfectly matching the production cycle of small-and-medium injection molding machines. Built with modular assembly, it has a simple and compact structure, fitting low-height and narrow workshop stations. It connects to standard horizontal injection molding machines and supports multiple mold production modes such as multi-cavity mold and standard single-cavity mold with great universality.
Equipment Advantages
It features stable load-bearing performance, steadily handling finished products and sprues of 3-5 kg to meet material-taking requirements for most small-and-medium injection-molded products.
Adopting mini compact body design, it greatly reduces installation space, effectively solves overcrowded equipment layout in small-and-medium workshops, and remarkably improves workshop space utilization and layout neatness.
Its overall structure is optimized and calibrated, equipped with precision transmission components. It runs dexterously and responsively, adapting to complex picking angles and narrow working spaces.
With strong anti-interference capability, it operates continuously at high frequency without stalling or position deviation. It maintains extremely high operational stability and long-term high-precision performance, lowering the probability of production failures.
Equipment Parameters
Compatible injection molding machine: 30-100T; Rated load: 3-5 kg; Driving mode: 3-axis full servo drive; Structure: Double-stage telescopic single arm; High operating precision with low repeat positioning error; Supports 24-hour continuous automatic operation; Matches standard injection molding cycle; Low operating noise and energy-saving, meeting mass-production demands of small-and-medium factories.
| 3 Axis Double Stage Single Arm Compact Robot | |||
|
Model description |
Unit |
KWⅢ-M-500P |
KWⅢ-M-600P |
|
I.M.M.Range |
（T） |
30-80 |
50-100 |
|
L |
mm |
1650 |
1650 |
|
W |
mm |
1150 |
1150 |
|
H |
mm |
1450 |
1550 |
|
X |
mm |
500 |
500 |
|
Y |
mm |
500 |
600 |
|
Z |
mm |
800 |
800 |
|
Gripper angle |
(°) |
90 |
|
|
Max load |
Kg |
5 |
5 |
|
Minimum take out time |
（S） |
0.5 |
|
|
Drive system |
V3-AC Servo Motor |
||
|
Working air pressure |
Kgf/cm² |
3——5 |
|
|
Air consumption |
NL/cycle |
1.8 |
2 |
|
Power |
V |
AC220V±10 50/60HZ Single Phase |
|
|
Weight |
Kg |
75 |
78 |
Applicable Products

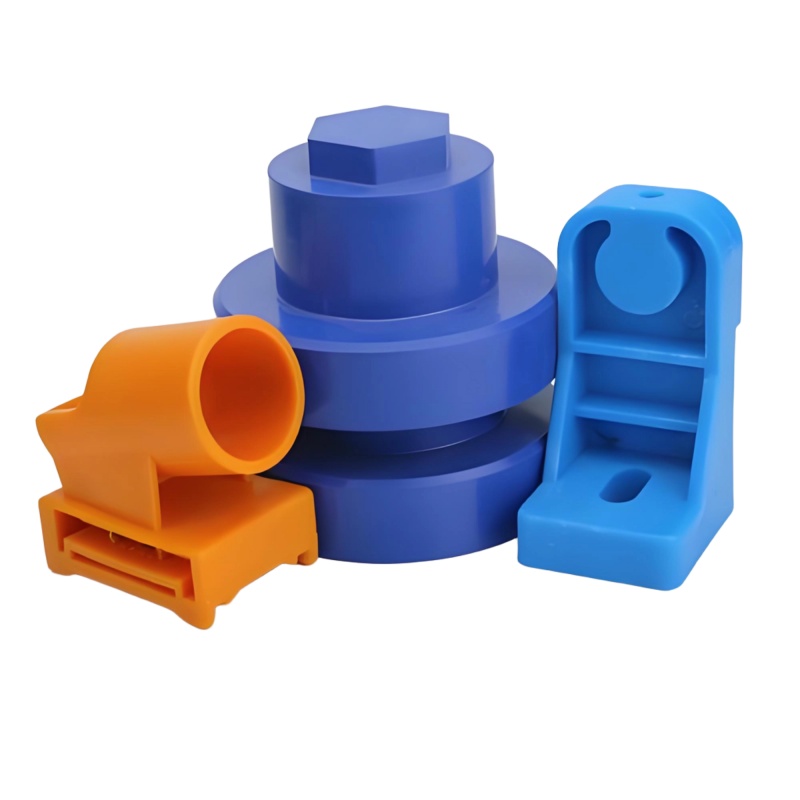

Widely compatible with various small-and-medium precision injection-molded products, including 3C electronic accessories, plastic housings for small home appliances, daily plastic goods, small automotive plastic parts and miniature medical plastic components. Suitable for automatic material-taking production of appearance parts, precision mini-parts and standard structural parts.
Core Components
All core components adopt high-quality industrial-grade parts, including well-known-brand servo motors, precision linear guide rails, high-strength aluminum-alloy telescopic arms, dedicated pneumatic gripping assemblies, intelligent control system and multi-safety sensor modules. Wear-resistant and durable, these components sustain long-term precision, fundamentally guaranteeing equipment accuracy and service life while reducing post-operation maintenance costs.
Application Site & Customer Feedback

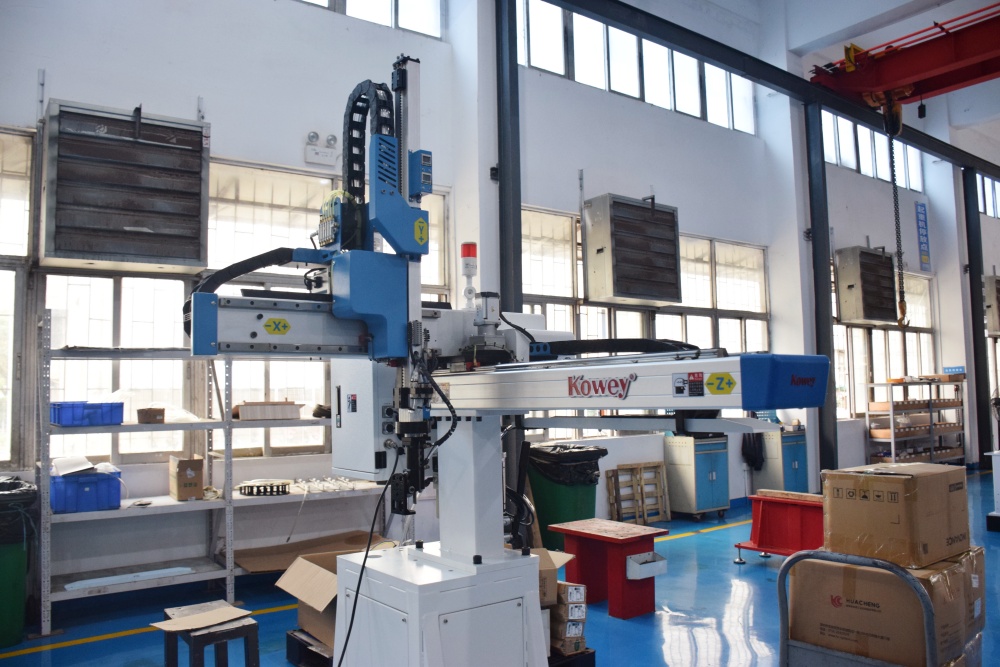

This robot has been widely deployed in various small-and-medium injection molding factories. It features excellent on-site compatibility, easy installation & commissioning, and fast integration with existing production lines. Customers report stable operation and extremely low failure rate. It effectively replaces manual material picking, greatly improves picking efficiency and product consistency, reduces scratches and positioning deviations caused by manual operation, significantly cuts labor cost and defective rate, and delivers outstanding mass-production performance.
Why Choose KOWEY?
KOWEY Intelligent focuses on R&D and manufacturing of injection molding automation equipment with proven technical accumulation and strict quality-control system. Specially developed for small-and-medium injection-molding scenarios, this manipulator delivers high cost-performance and wide compatibility, balancing quality and practicality. The manufacturer provides one-stop services including free model selection, on-site installation & commissioning, full-process technical support and after-sales maintenance with fast response. Every unit undergoes multiple strict inspections before delivery for reliable quality. It effectively helps enterprises reduce costs, improve efficiency and realize rapid automation upgrade, supporting efficient and stable mass production for small-and-medium factories.
