Conveyor Belt
Equipment Details

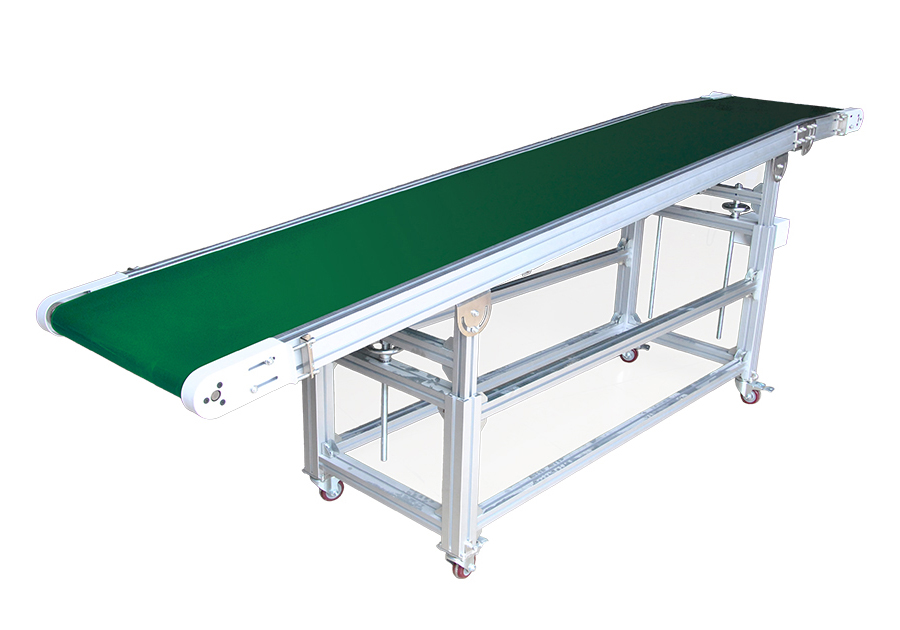

The complete machine adopts a lightweight carbon‑steel frame with solid and robust structure and excellent load‑bearing capacity, resisting vibration and belt deviation during operation. It adopts an integrated transmission structure equipped with an intelligent speed‑regulation system. The whole unit is easy to assemble, disassemble and commission, and can be put into service without complicated operations. With a modular body design and foldable support structure, it balances operational stability and storage flexibility. It fits various complex working sites including indoor, outdoor and narrow workshops, and supports multi‑mode material conveying including horizontal and inclined transport.
Equipment Advantages
Equipped with a stepless speed‑regulation system, the belt speed can be freely adjusted according to material throughput and production rhythm. It delivers precise speed control and smooth operation to suit diverse production conditions with simple, user‑friendly operation.

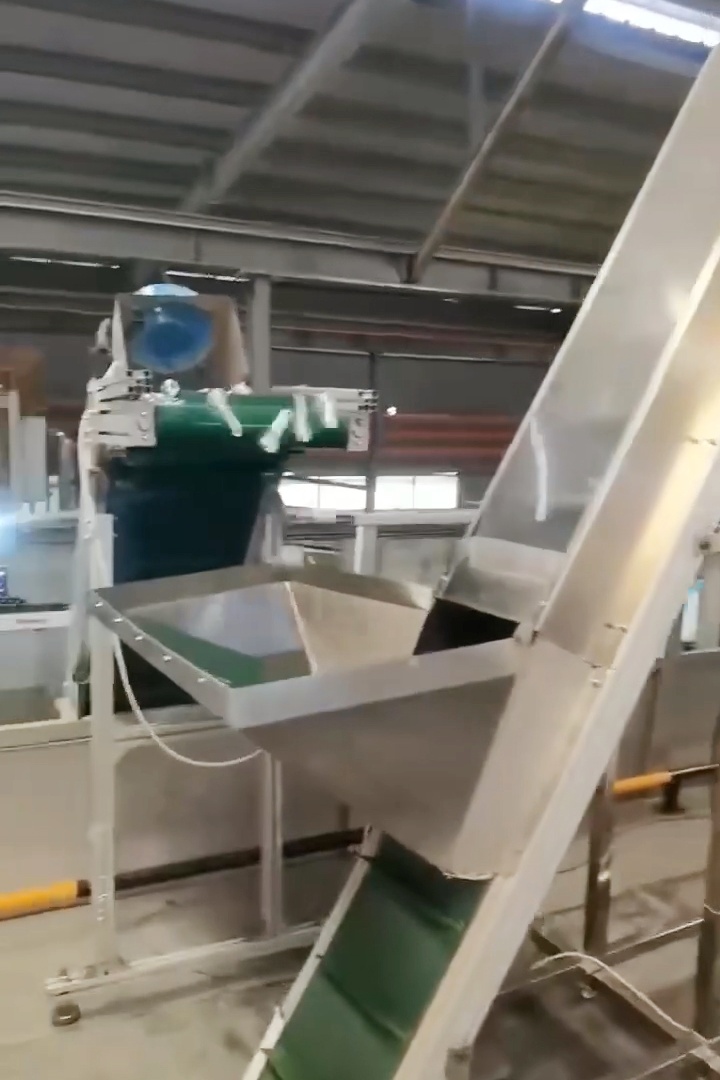

It features strong adaptability to conveying slopes and supports inclined conveying within 0‑35°, easily handling uphill feeding and high‑low position transfer scenarios, breaking the site limitations of conventional conveying equipment.
Four foldable fixing feet are fitted for stable support to guarantee operational safety. They can be folded for storage when idle without occupying warehouse space, enabling convenient transportation and storage.
Meanwhile, the belt is made of special material with multiple properties including flame resistance, anti‑static performance, heat resistance, wear resistance and anti‑corrosion. It adapts to complex working conditions such as high‑temperature, dusty and flammable‑explosive environments, offering long service life and high operational safety.
Equipment Parameters
The frame is made of Q235 carbon steel. The belt features high tensile strength and wide temperature‑resistance range to support long‑term continuous stable operation. All parameters can be customized according to customers’ working conditions.
| Conveyor Belt | |||||||
| Model description | Unit | KWD300 | KWD400 | KWD500 | KWD600 | KWD700 | KWD800 |
| Belt width | W(MM) | 300 | 400 | 500 | 600 | 700 | 800 |
| Belt length | L(MM) | 1500 /2000 / 2500 / 3000 /3500 / 4000 /4500 /5000 /5500 /6000 | |||||
| Platform length | L2(MM) | 600~800 | |||||
| Lower height | H1(MM) | 800~1200 | |||||
| Upper height | H2(MM) | 1100~1600 | |||||
| Input power | V | 220VAC10V 50/60Hz | |||||
| Motor power | W | 60/120/200 | |||||
| Conveying speed | m/min | m/min 0~12 | |||||

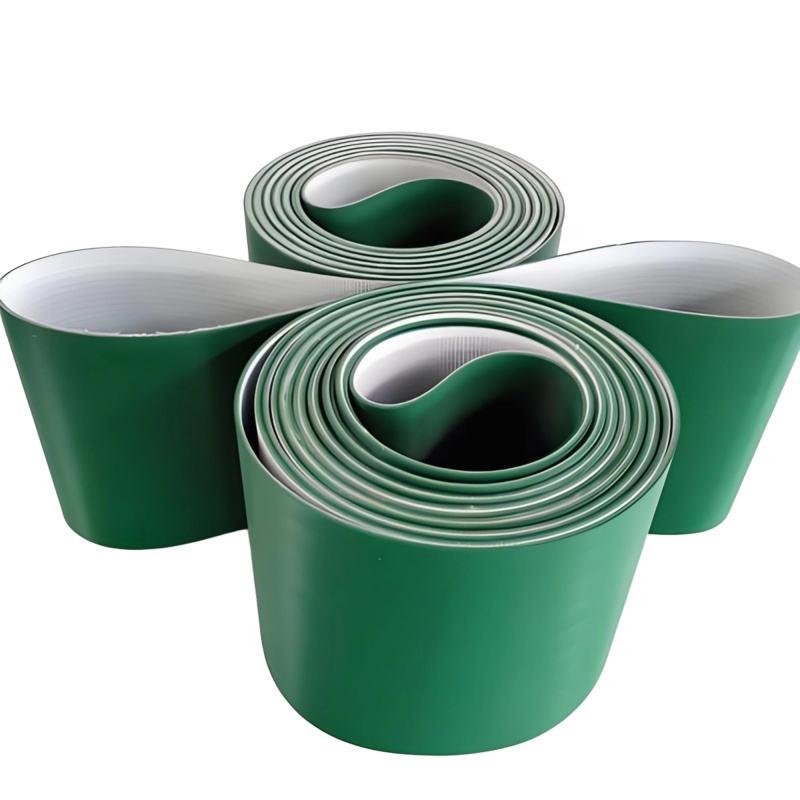

| Belt type | Material:PVC/Thickness: 2MM/ Color: Green / Rating of Temperature:-10°C~+80°C Static-free, wearing, oil proof / Available in food grade | ||||||
| Max load | Kg | 20 | |||||

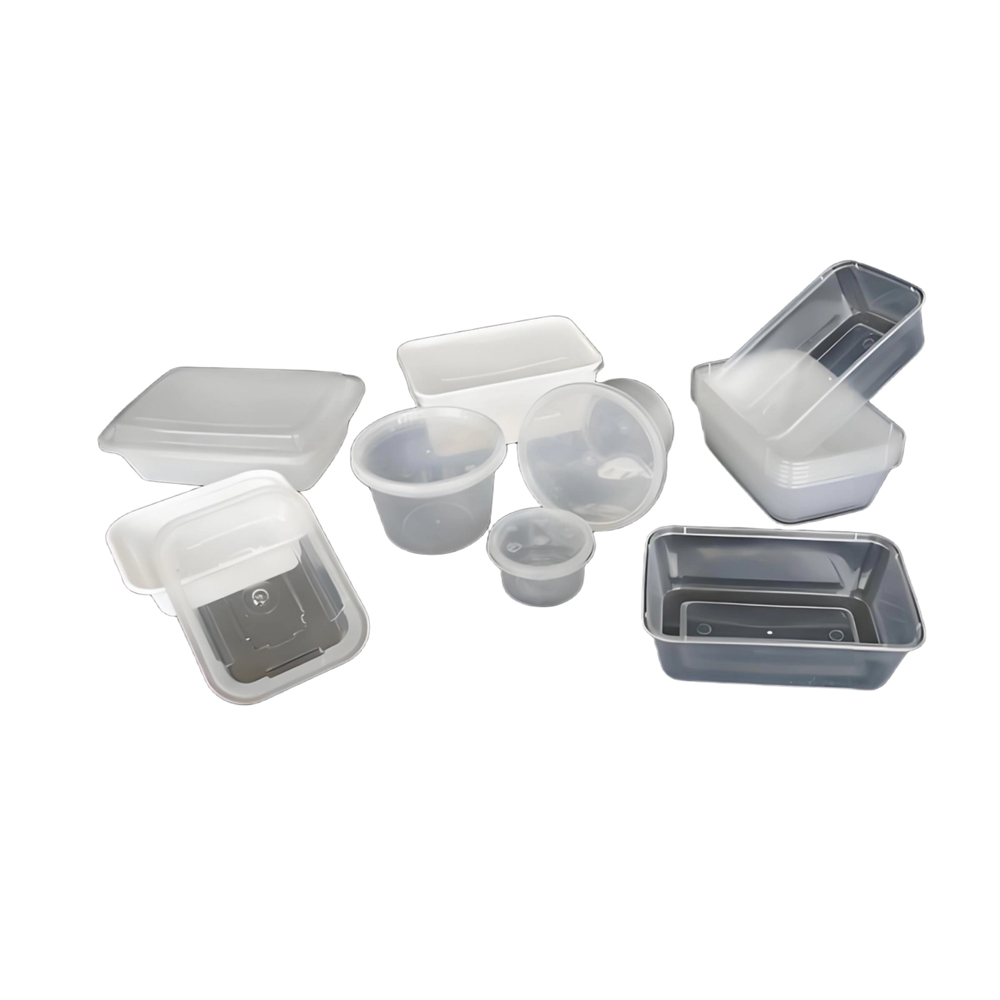

Applicable Products

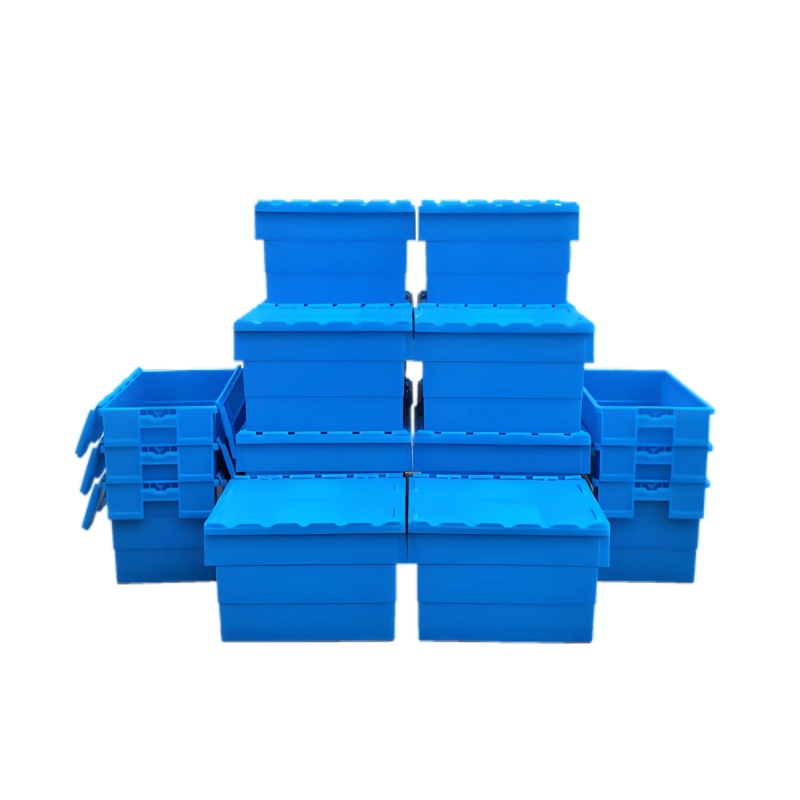

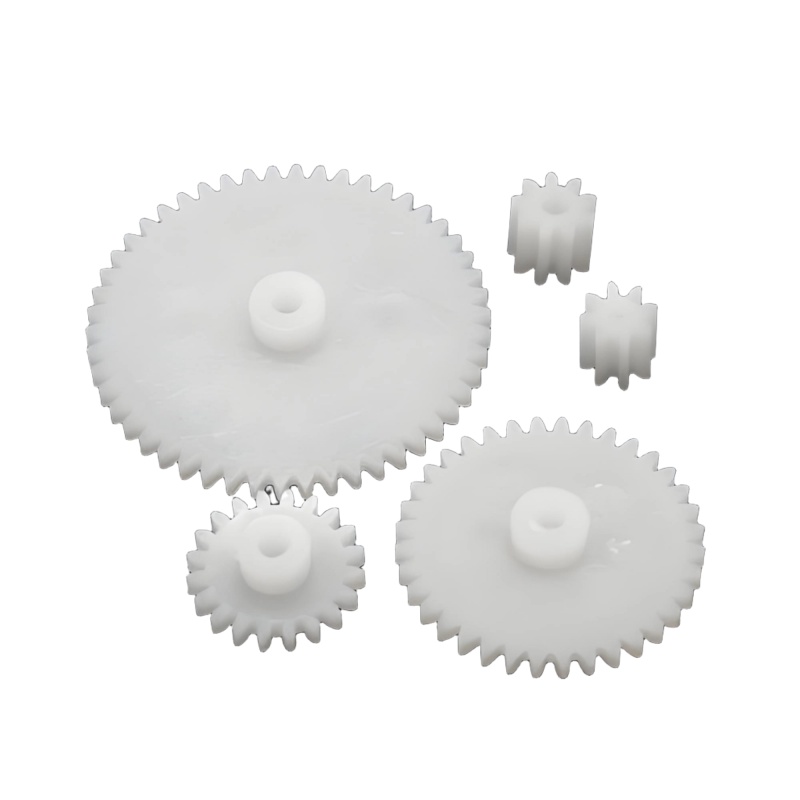

Widely applied in production and transfer scenarios for various injection‑molded products such as food packages, auto parts, electrical accessories and daily‑use articles.
Core Accessories

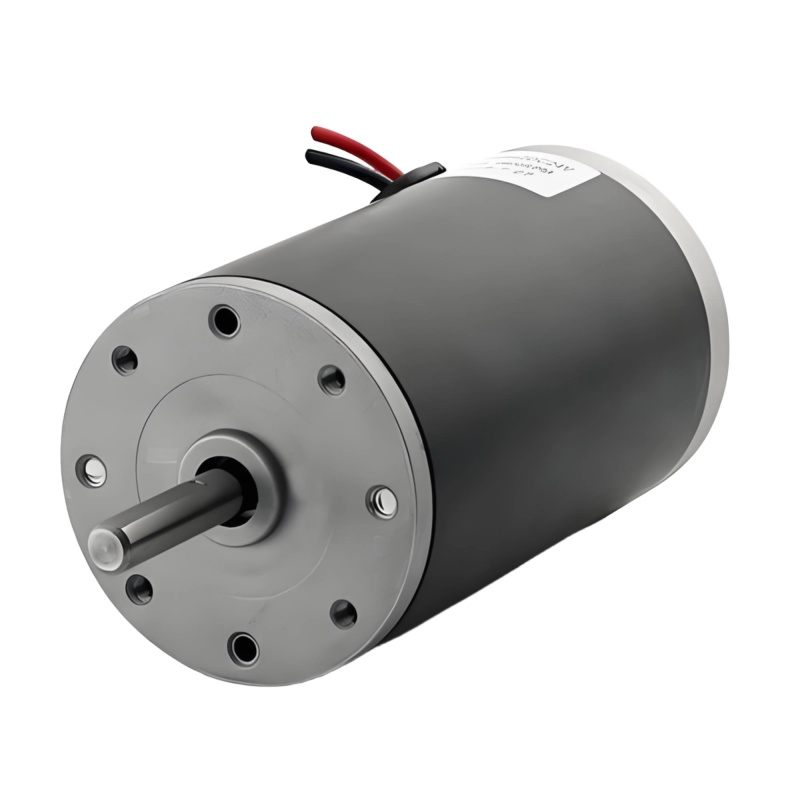

Core accessories include high‑strength wear‑resistant conveyor belt, energy‑saving pure‑copper motor, intelligent speed‑regulation controller, anti‑slip driving drum, wear‑resistant idler roller, automatic tensioning device, anti‑deviation protection assembly and foldable support stand. All core accessories adopt high‑quality materials with high precision and low wear‑and‑tear, ensuring long‑term stable equipment operation and reducing failure rate and maintenance costs.

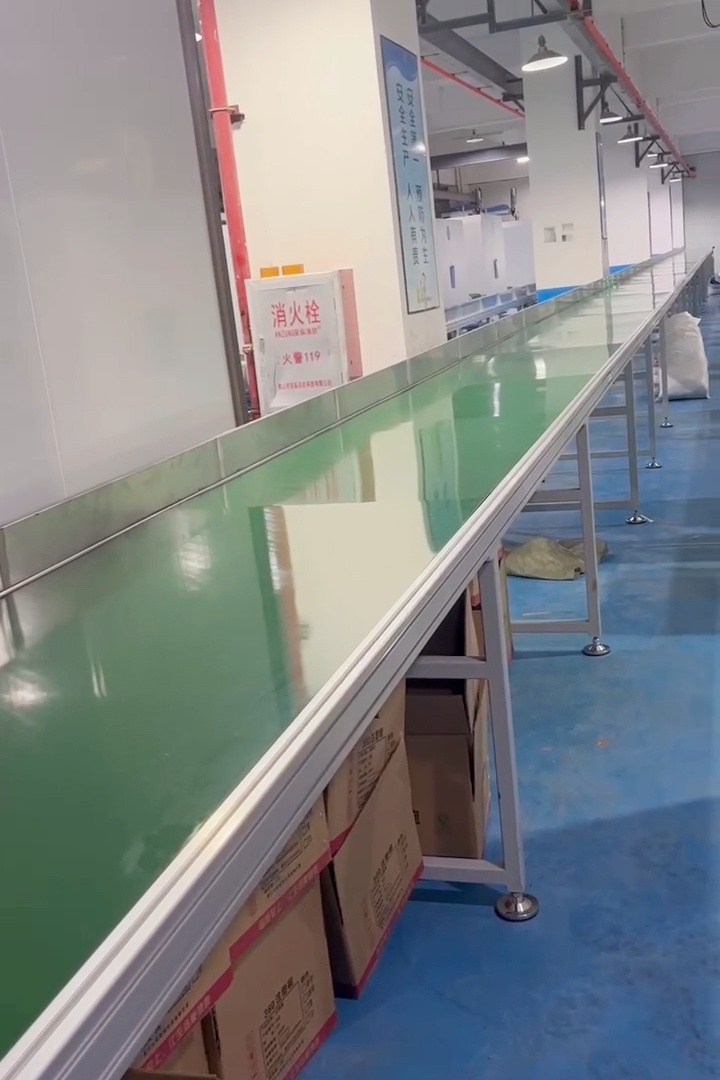

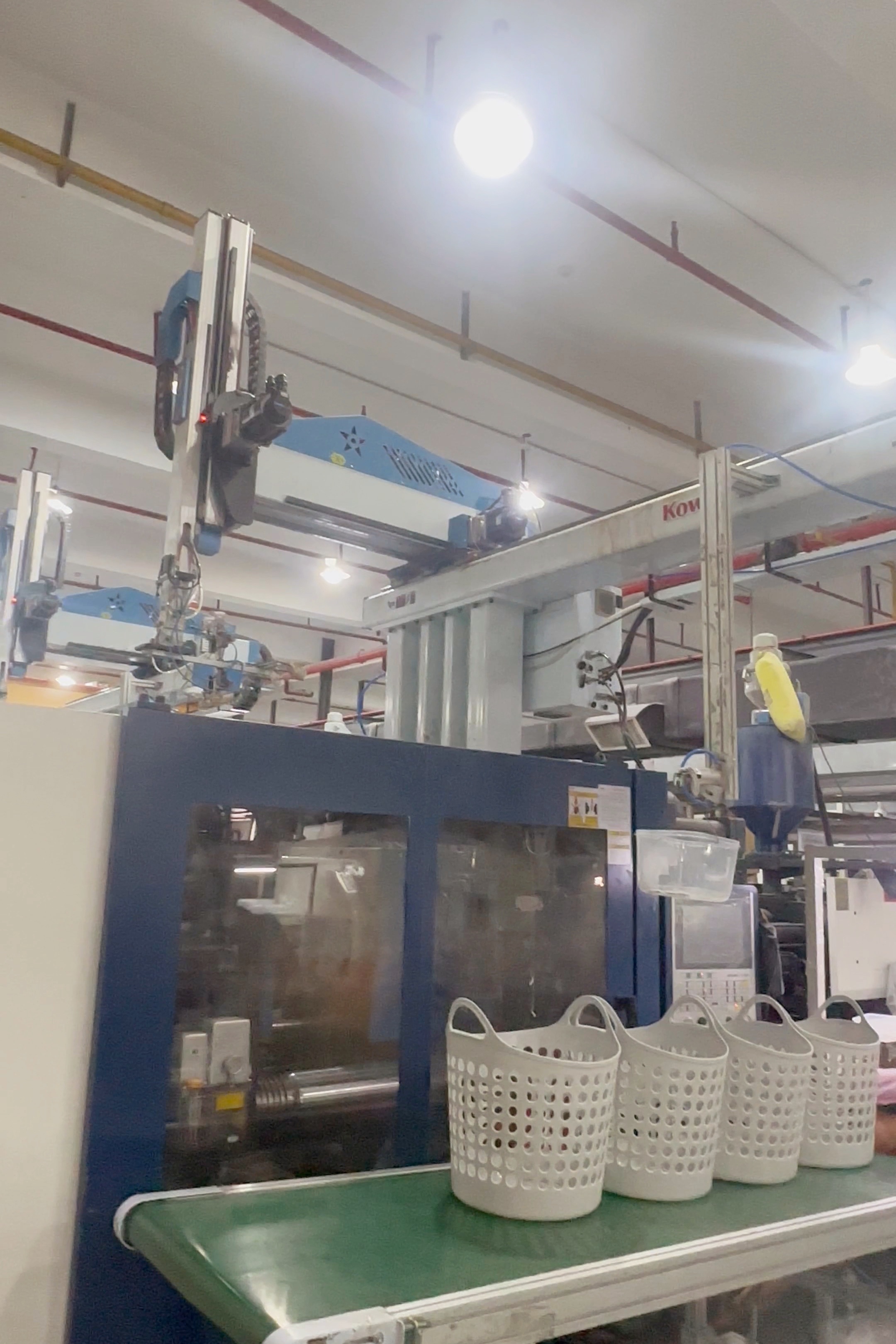

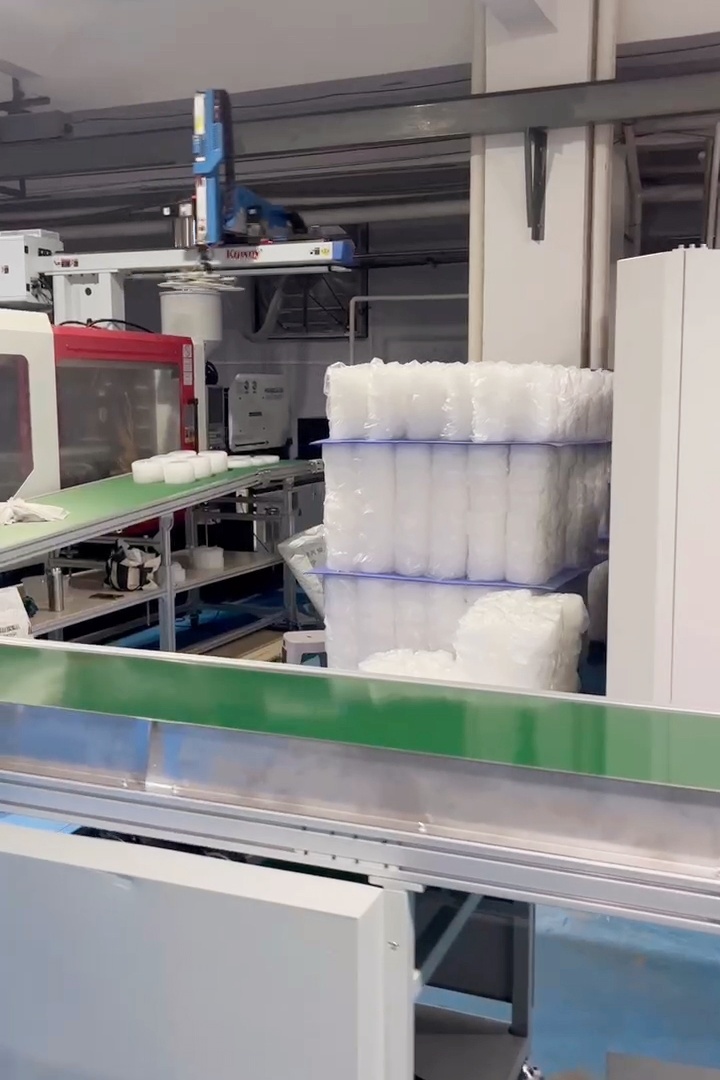

Application Site & Customer Feedback

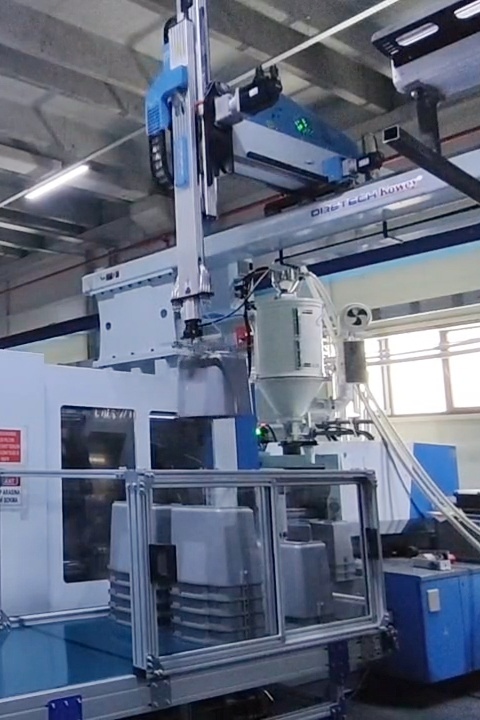

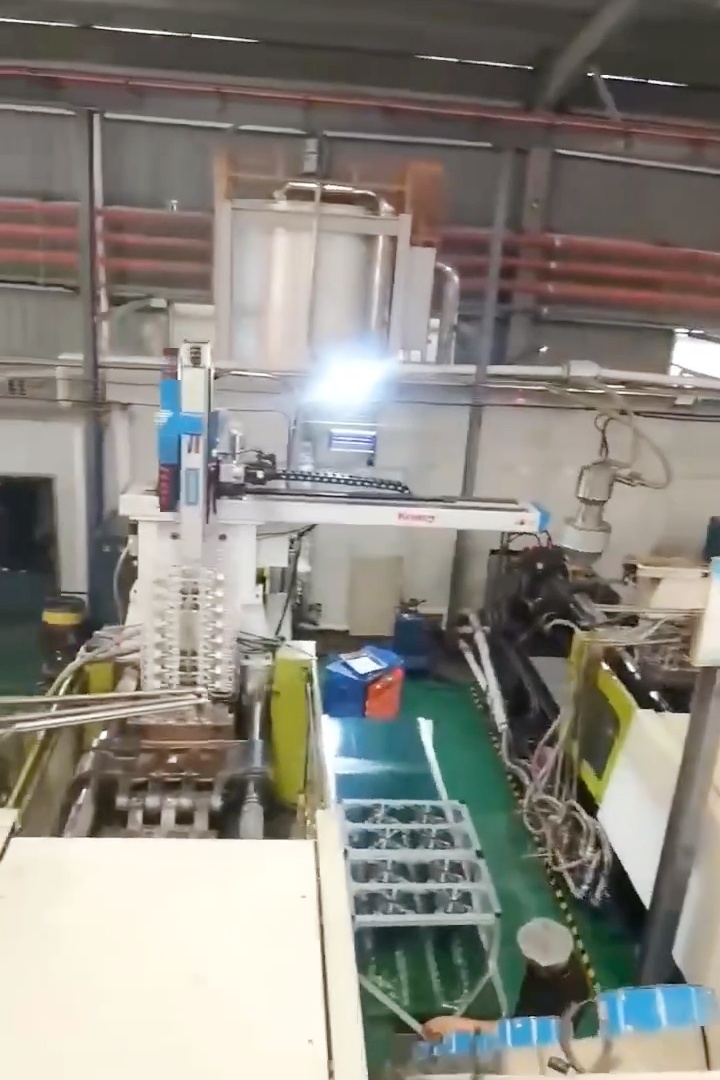

This equipment has been widely deployed on automated production lines of injection‑molding factories. It runs stably on‑site with flexible speed adjustment and outstanding climbing capacity, perfectly matching assembly‑line auxiliary work, material feeding and finished‑product transfer. Most customers report low failure rate, convenient storage and strong adaptability. It effectively solves the drawbacks of conventional conveyors such as many restrictions, large footprint and low efficiency, greatly boosting production transfer efficiency and saving labor and site costs.
Why Choose KOWEY?
For years, KOWEY has focused on R&D of injection‑molding automation equipment and gained in‑depth insights into various industry working‑condition requirements, delivering customized conveyor‑belt solutions. Manufactured in strict accordance with industrial standards with solid materials and exquisite craftsmanship, KOWEY equipment outperforms competing products in stability and durability. We also provide complete pre‑sales model‑selection, in‑sales customization and after‑sales maintenance services with fast response. Compared with peer products, KOWEY conveyor belts feature wider compatibility, higher cost‑performance and lower operation‑and‑maintenance costs. They comprehensively help enterprises cut costs and raise efficiency, making KOWEY the preferred brand for injection‑molding automated conveying equipment.
