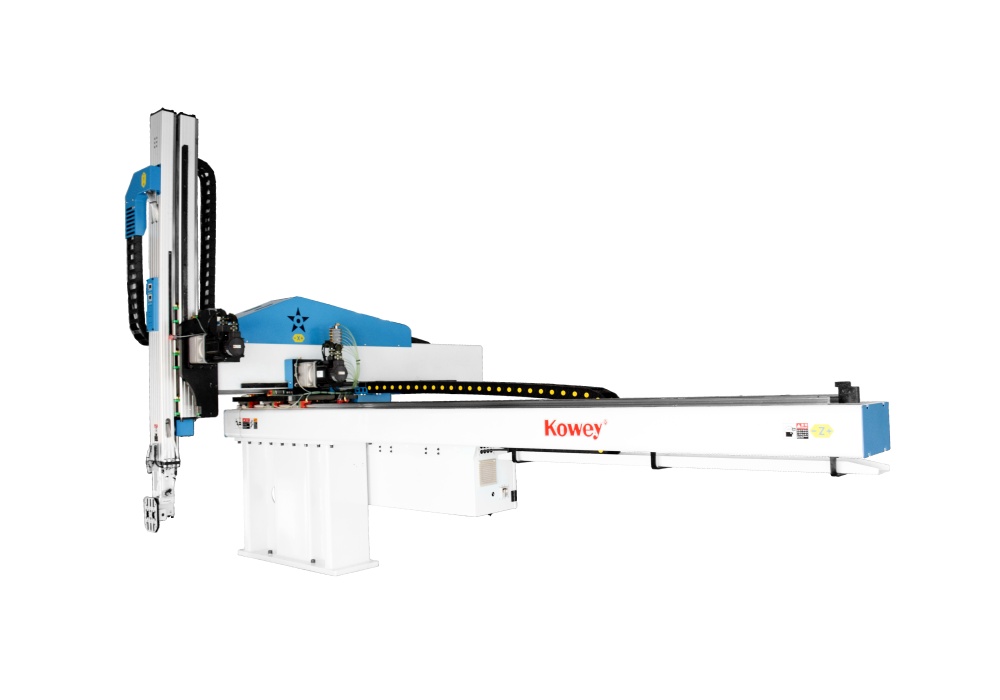

Heavy Duty Top Entry PET Preform Take out Robot

This heavy-duty Top Entry Robot by KOWEY is specially developed for PET preform applications. It comes with a standard Y-axis stroke of 1200-1500 mm, perfectly matching 300-650 T injection molding machines. Custom-built for automated top-side take-out of PET preforms, it is fully compatible with top-ejection production for all PET preform molds ranging from 1-cavity up to 144-cavity.

Built with reinforced high-strength mechanical construction, the robot is engineered for harsh operating conditions in the PET industry including multi-cavity molds, continuous mass production and heavy-load part removal. Its maximum lifting capacity exceeds 25 kg. It effectively addresses common industry pain points of heavy payload and poor stability with high-cavity preform molds. Compared with general injection-molding robots, it delivers prominent advantages in high-cavity compatibility, structural rigidity, load capacity and take-out stability. It serves as the core automation equipment for high-speed, high-volume multi-cavity PET preform injection lines.

product details

Equipment Details

PET preform take-out differs fundamentally from the handling of ordinary plastic products, mainly due to the huge variance in mold cavity quantity. PET preform molds cover a wide cavity range: 1-cavity, 8-cavity, 16-cavity, 32-cavity, 48-cavity, 64-cavity and even 144-cavity. Higher cavity counts mean more preforms per molding cycle and a sharp rise in overall take-out payload.

Conventional robots can only handle low-volume part removal. They cannot satisfy synchronous heavy-load extraction for multi-cavity preforms and fail to guarantee production stability. This robot is precisely tailored for 300-650 T injection molding machines and dedicated to top-side take-out of PET preform molds. After mold opening, the robot accurately enters the mold cavity. Using special end-of-arm tooling, it extracts all multi-cavity preforms in one single motion, retracts smoothly and completes automatic part dropping. Customized solutions are available according to mold cavity count, preform specifications and production cycle time to meet mass-production requirements for full-range PET preforms.

Equipment Advantages

Heavy Duty Top Entry PET Preform Take out Robot

Adopts separated main-unit design for convenient operation and simple commissioning, lowering operation and maintenance barriers for routine shop-floor production.

Core competence lies in dedicated top-side take-out for 1-144 cavity PET preforms. Comprehensive reinforced high-strength mechanical structure enables stable lifting of over 25 kg, eliminating deficiencies of standard robots such as insufficient load capacity, vibration and premature structural wear.

Complete machine optimizations cover arm load, end-effector weight, preform dead weight and inertia from continuous operation, supporting heavy-duty non-stop long-run production.

Shortens molding cycle and improves overall automation efficiency & output, meeting large-scale high-intensity production demands of the PET industry.

Equipment Parameters

This heavy-duty top-entry robot is custom-engineered for PET preform production on 300-650 T injection molding machines with core parameters optimized for high-end mass-production scenarios. It features classic top-entry gantry structure exclusively for 1-144-cavity PET preform top-ejection processes. Equipped with high-strength monocoque mechanical structure, its rated lifting capacity exceeds 25 kg, with special standard end-of-arm take-out mechanism.

All parameters can be customized according to injection machine tonnage, mold cavity quantity, preform weight, mold configuration and production cycle. It precisely matches diversified production-line requirements while balancing universality and specialization for both low- and high-cavity PET preform manufacturing.

Top Entry PET Preform Take-out Robot
Model description	Unit	KWIII-N-PET-1200P	KWIII-N-PET-1400P	KWIII-N-PET-1500P
I.M.M.Range	（T）	300-400	300-450	400-650
L	mm	2670	2830	3070
W	mm	1720	1900	2080
H	mm	1930	2050	2170
X1	mm	870	1040	1160
Y1	mm	1200	1400	1500
Z	mm	1780	1940	2180
Gripper angle	(°)	90
Max load	Kg	30	35	40
Minimum take out time	（S）	1	1.1	1.2
Drive system		V3-AC Servo Motor
Working air pressure	Kgf/cm²	5
Air consumption	NL/cycle	70	90	110
Power	V	AC220V±10 50/60HZ Single Phase
Weight	Kg	675	700	732

Applicable Products

This equipment is highly focused on PET preform injection molding. It widely fits PET preforms for beverage bottles, mineral-water bottles, edible-oil bottles, food-packaging containers and other PET-based injection-molded preforms. It is especially suitable for production lines with 1-144-cavity high-cavity PET preform molds and 300-650 T injection molding machines. It solves key challenges of high-cavity, heavy-load and high-volume preform extraction. It is the preferred automation solution for large-scale PET-preform manufacturers across food, beverage, grain-oil and other PET-packaging sectors.

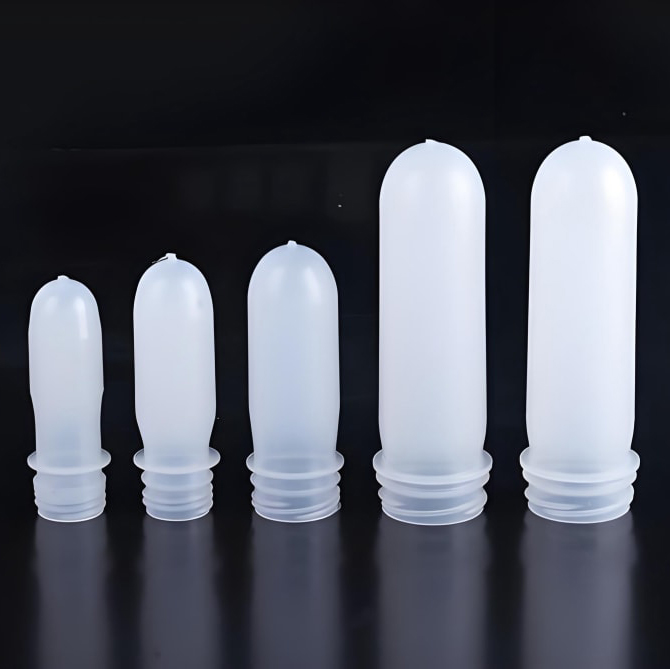

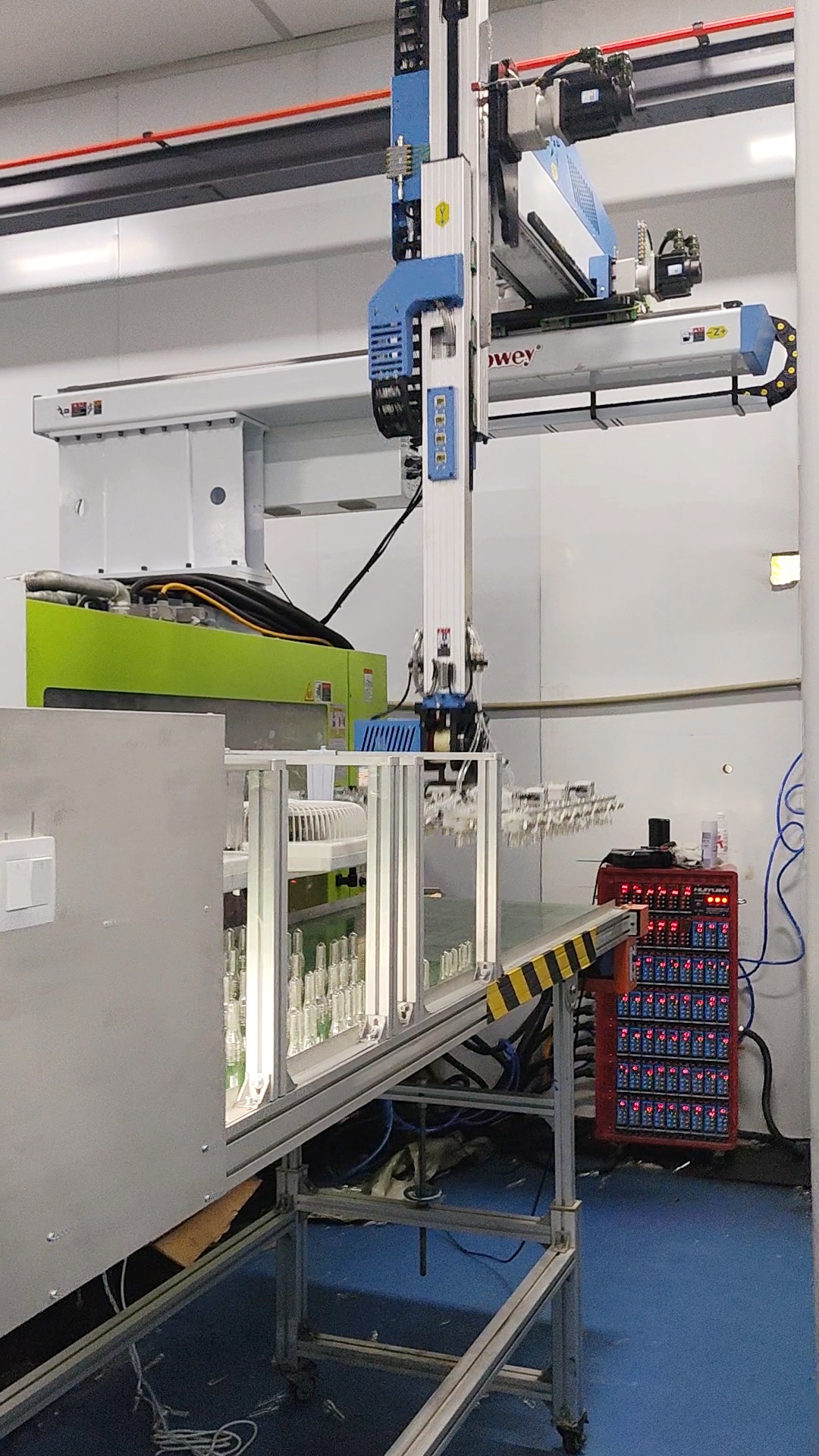

Heavy Duty Top Entry PET Preform Take out Robot (3)

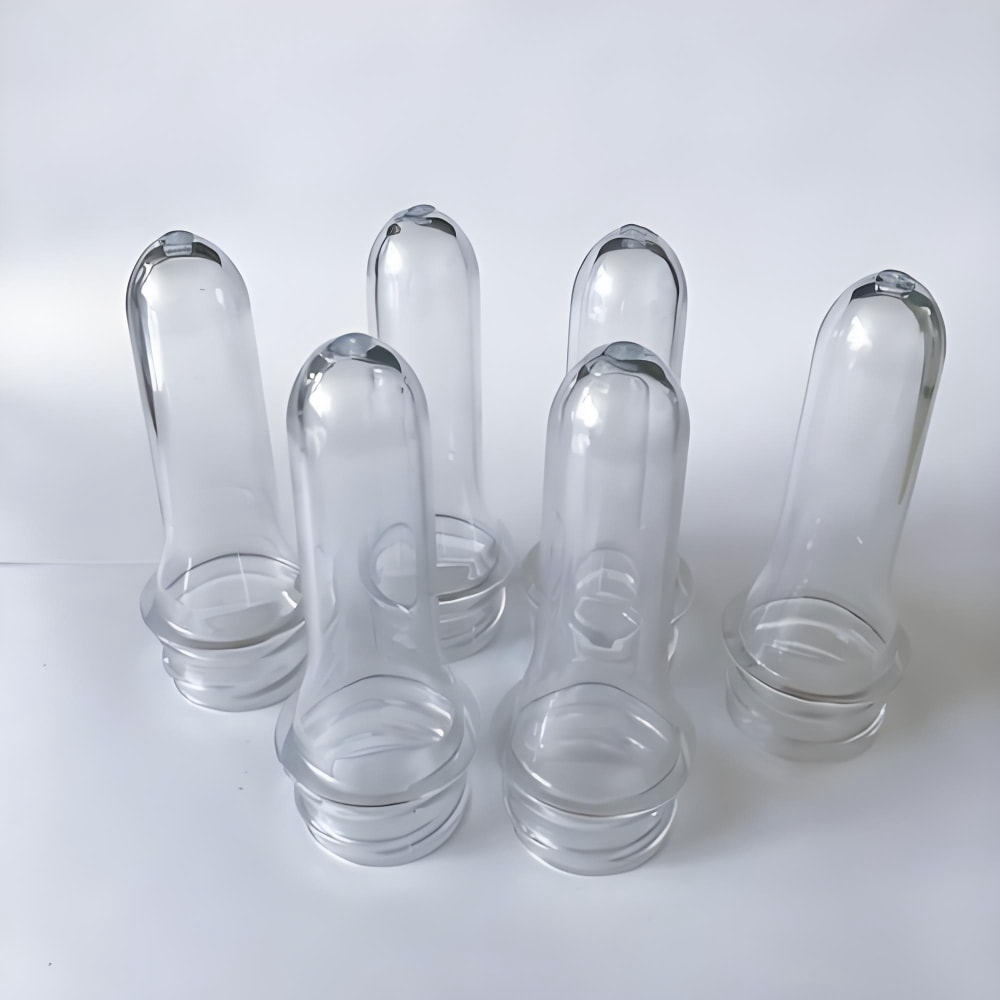

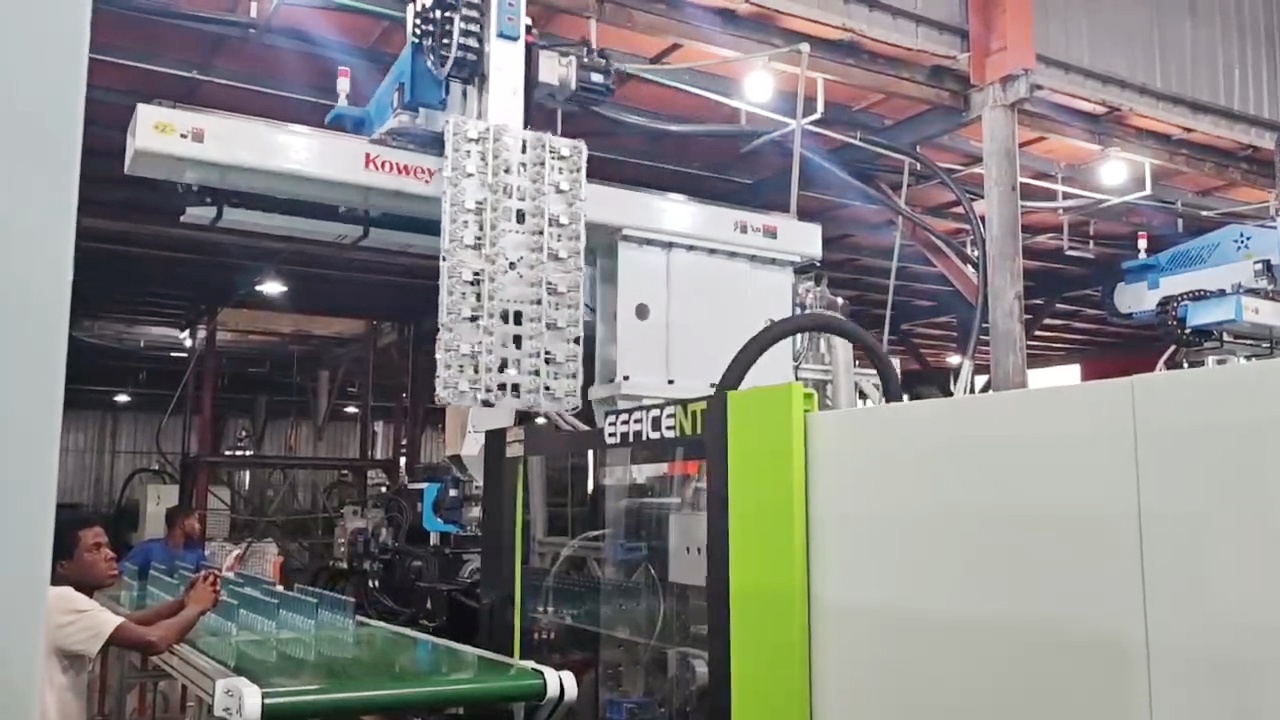

Heavy Duty Top Entry PET Preform Take out Robot (2)

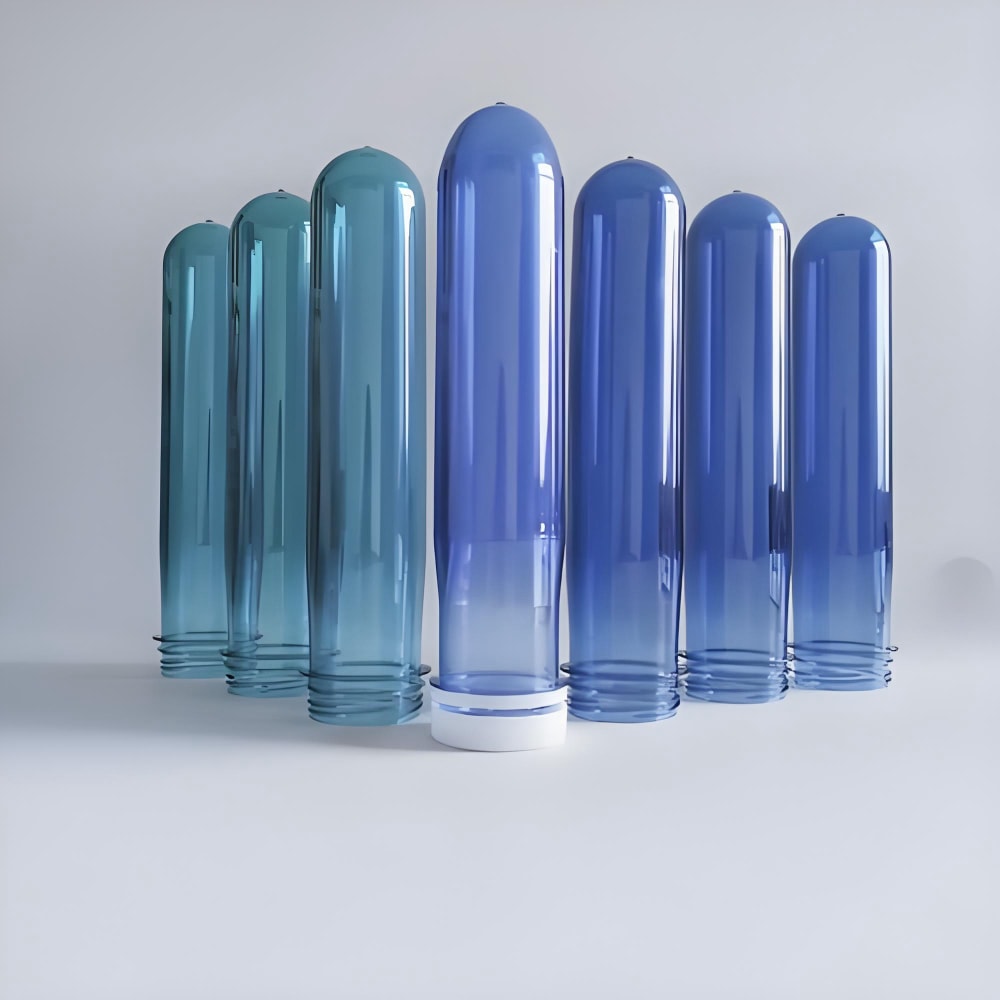

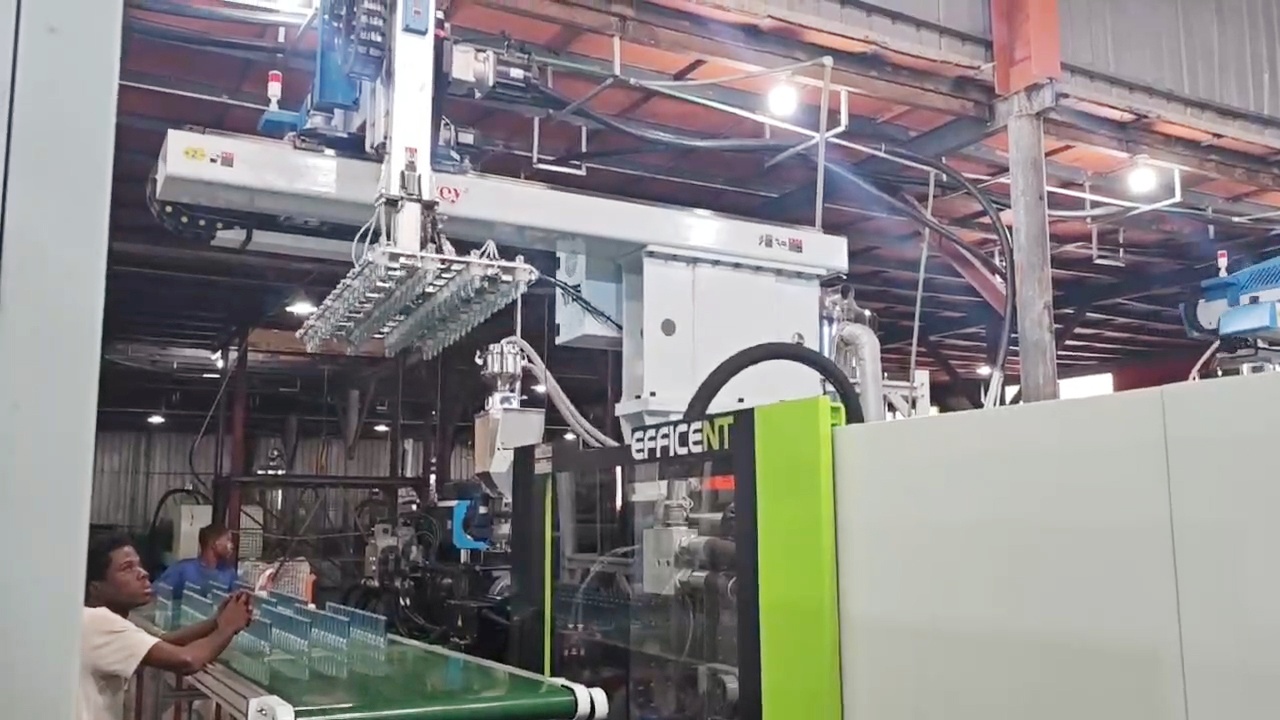

Heavy Duty Top Entry PET Preform Take out Robot (1)

Core Components

All core components are optimized for real-world production conditions for accurate application matching.

High-strength mechanical frame: the primary load-bearing foundation, specially reinforced for multi-cavity heavy-load take-out, featuring anti-deformation and wear-resistant performance for long-term stable operation.

High-precision motion system: accurately executes full-sequence motions including mold entry, top take-out, lifting, mold retraction and part dropping with smooth precise movements.

Intelligent control system: achieves accurate signal interlock between robot and injection molding machine with stable programming and fast response.

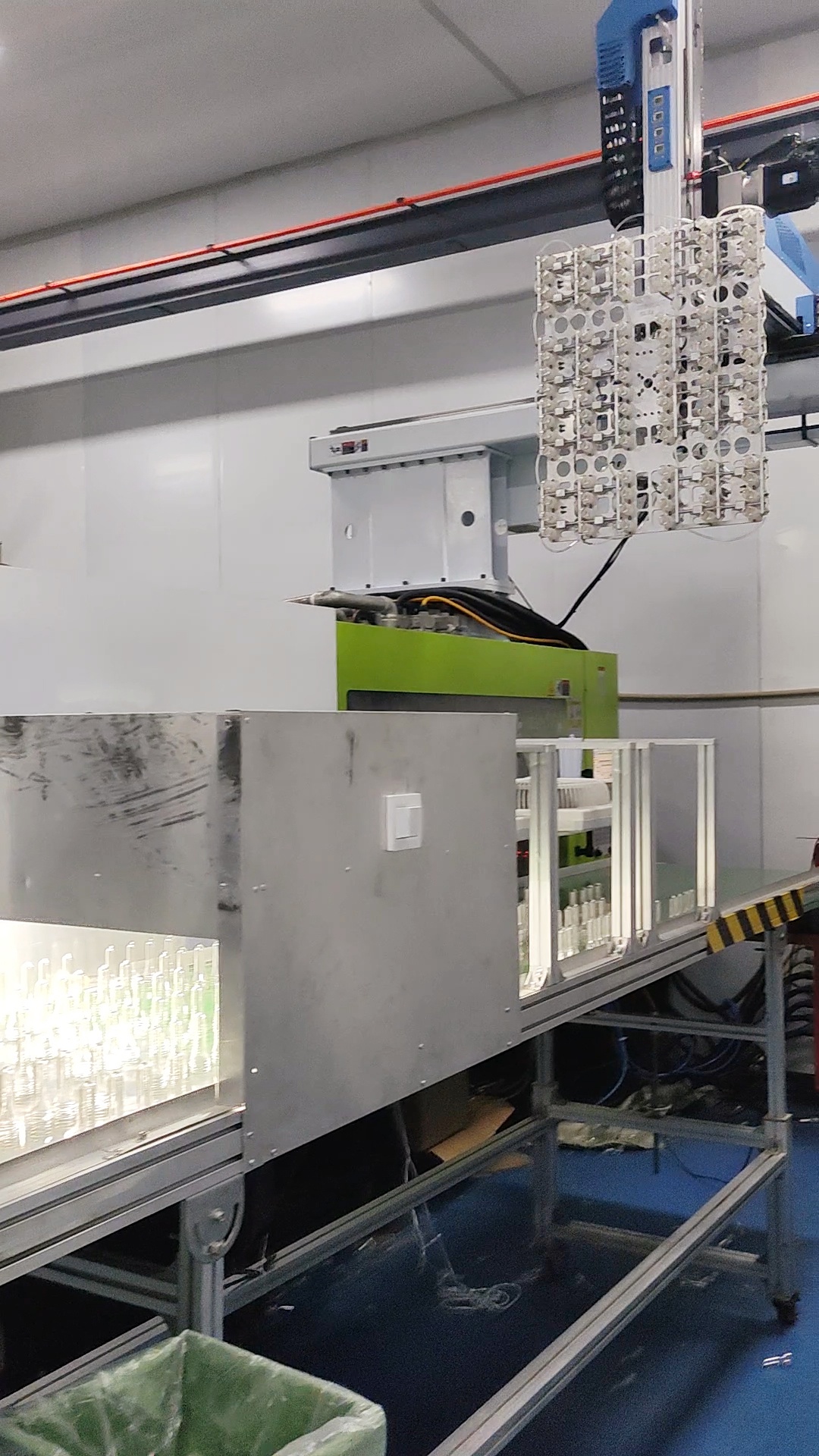

Dedicated PET end-of-arm tooling: configurable with grippers, suction cups and pneumatic circuits to realize synchronous take-out for 1-144-cavity preforms of varied layouts and weights.

Core Components

The main pain points in PET preform production centre on take-out stability under high-cavity heavy-load conditions. Customers prioritize complete multi-cavity synchronous picking, long-term stability under heavy payload, anti-vibration performance and structural durability. Traditional manual removal suffers from low efficiency, high labour intensity, poor precision, frequent preform damage and missing pick-ups.

This robot delivers fully-automated workflow: mold opening, mold entry, top take-out, lifting, mold retraction and part dropping. It replaces manual piece-by-piece handling with one-shot full-batch extraction of multi-cavity preforms. It resolves bottlenecks brought by high cavity count, heavy payload and continuous mass production, greatly boosting productivity and product yield, and supporting unmanned, stable large-scale manufacturing.

Why Choose KOWEY?

PET preform production imposes far higher requirements on robot load-bearing capacity, mechanical structure and stability than general injection-molded articles. KOWEY heavy-duty Top-Entry PET Preform Take-out Robot overcomes inherent drawbacks of universal robots. It targets PET preform production on 300-650 T injection molding machines. With full compatibility for 1-144 cavities, heavy-duty robust frame, lifting capacity above 25 kg and dedicated take-out end-effector, it addresses core industry pain points.

While ordinary robots can only handle small-quantity pick-ups, this unit reliably extracts dozens up to hundreds of preforms in a single cycle, perfectly adapting to high-cavity heavy-load mass-production. Thanks to outstanding stability, wide compatibility and long service life, it becomes the preferred core automation device for PET preform production lines.
