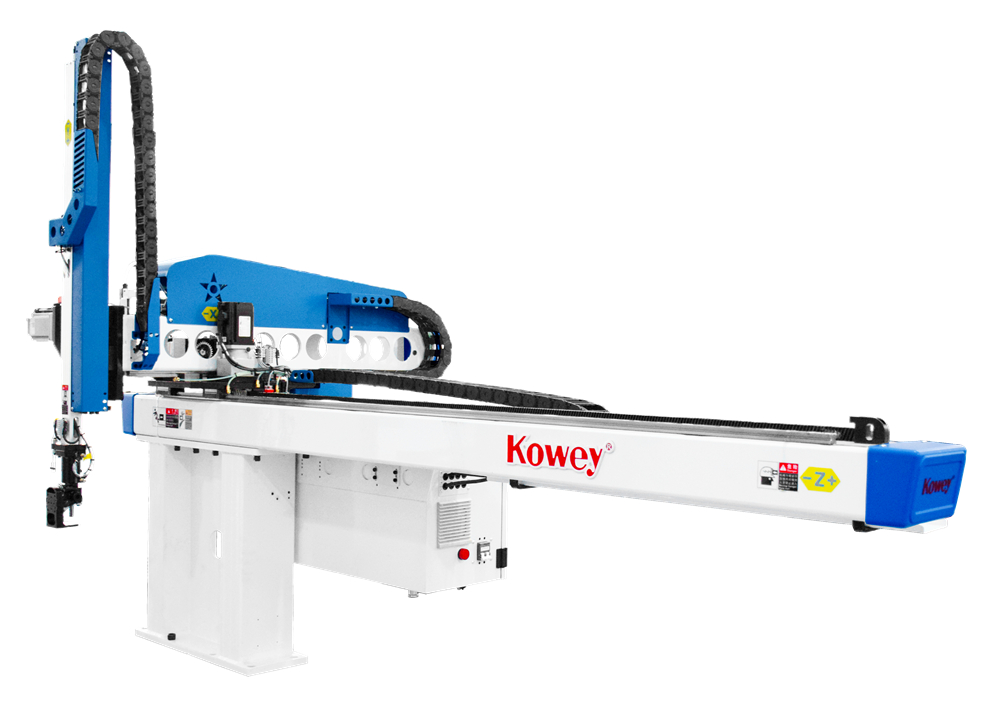

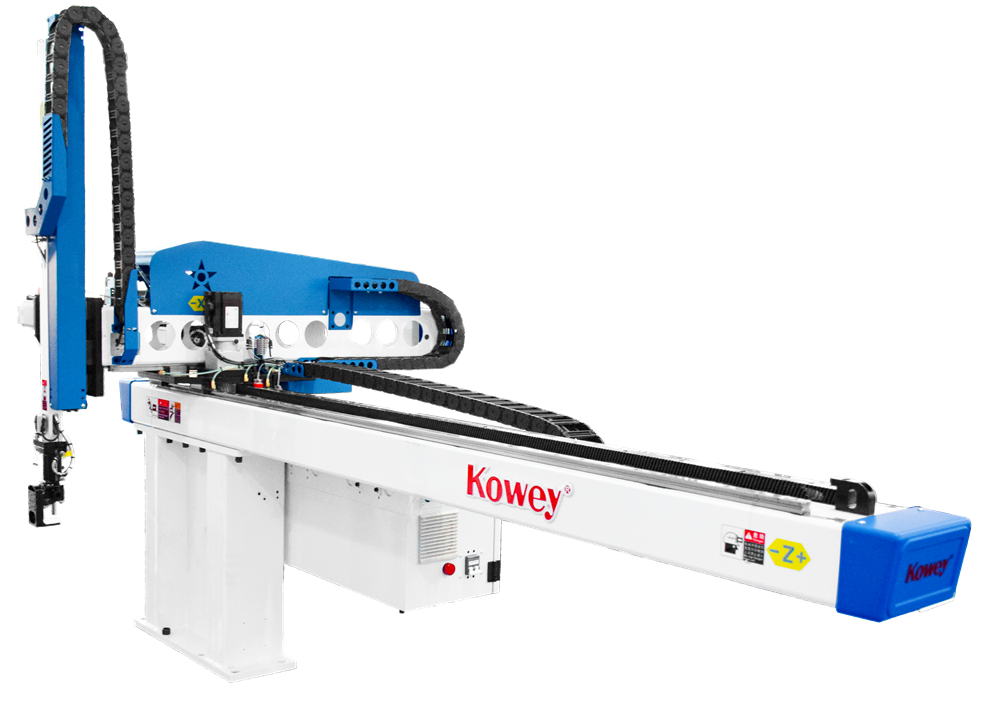

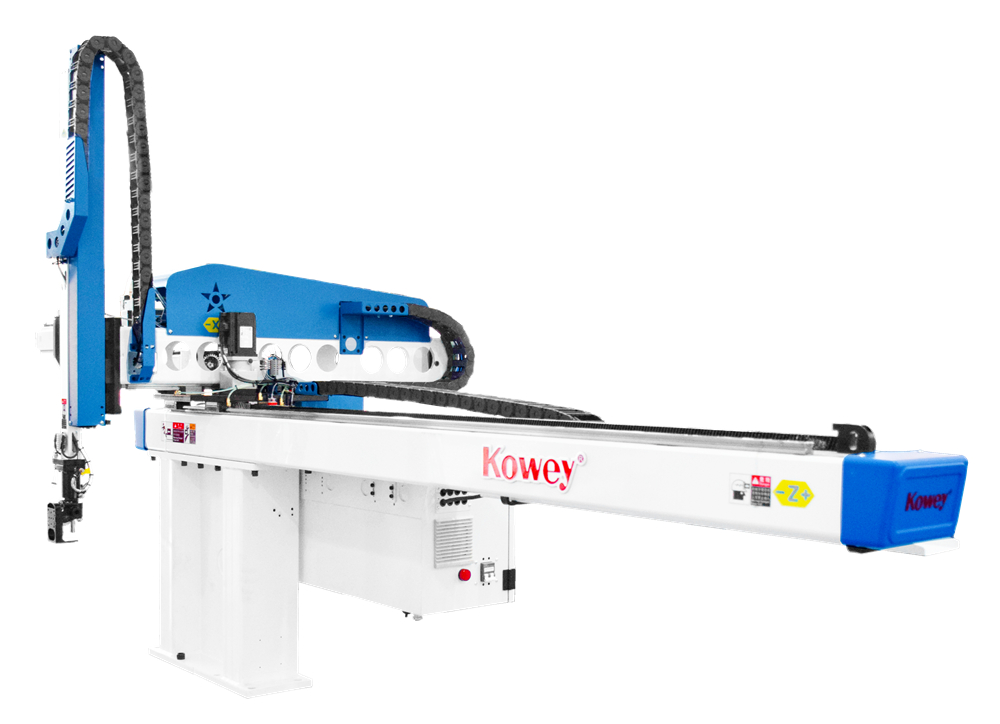

High Speed Bull Head Style 3 Axis Full Servo Injection Robot
Equipment Details
Professionals in thin-wall injection molding all know that the final competition of this industry lies in millisecond-level rhythm and day-in-day-out stability. Orders keep growing while profit margins keep shrinking. Many factories spare no effort to raise injection speed and adopt high-precision molds,yet get stuck at the final pick-up stage. Robot Vibration or delayed pick-up may cause scratched and scrapped parts in mild cases,or disrupt the whole production line in severe cases. Factories witness stagnant production capacity as defective products erode profits bit by bit. It is often those fractions of a second during pick-up that set enterprises apart from competitors. Speed itself is not the goal; consistent high-speed performance underpins profitable production.
Equipment Advantages

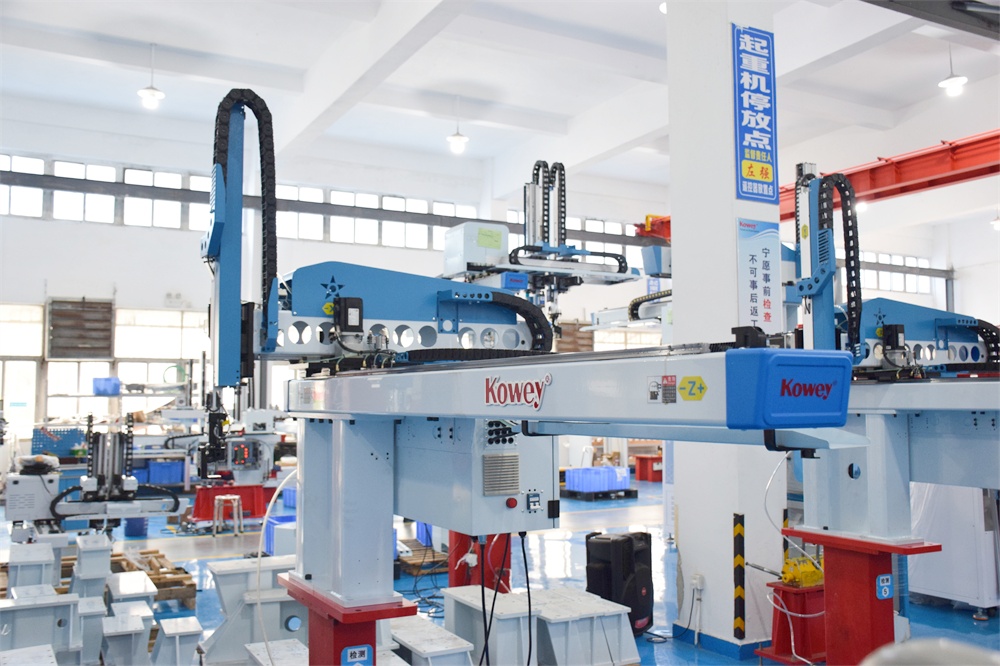

KOWEY High Speed Bull Head Style 3 Axis Full Servo Injection Robot fits 250-600T injection molding machines. It is tailor-made to solve thin-wall molding pain points,striking a perfect balance among speed,precision and stability. Practicality and durability are embedded in every structural detail to break efficiency bottlenecks for thin-wall injection production.
This robot delivers a minimum pick-up time of 0.5S and 2.6S idle cycle. It completes pick-up and transfer within milliseconds to seize every production beat,matching high-speed rhythm of thin-wall parts and avoiding slow pick-up holding back mold cycles. It fully releases the potential of high-speed injection molding machines and eliminates the awkward situation "fast machine,slow pick-up". Every second of cycle time is converted into tangible production benefits for factories.
Speed must go hand in hand with stability. High Speed Bull Head Style 3 Axis Full Servo Injection Robot Adopting separate main-unit design,this robot features simple and intuitive operation & commissioning,lowering on-site setup threshold for quick operator mastery.
The whole machine adopts high-rigidity yet lightweight structure with lower moving load. It guarantees structural strength while cutting power consumption. Continuous long-run production brings remarkable electricity-cost savings for mass manufacturing.
Equipped with high-rigidity precision linear guides and high-wear-resistant rack-and-pinion transmission. Centralized lubrication is applied to three-axis rack-and-pinion and guide sliders for accurate positioning and greatly extended service life. Vibration-free high-speed operation with gentle and firm pick-up prevents scratching and deformation of thin-wall parts,and has been widely deployed in thin-wall injection molding.
Core transmission consists of high-rigidity precision linear guides and high-wear-resistant rack-and-pinion. Centralized lubrication for three-axis rack-and-pinion and guide sliders ensures precise positioning and longer service life. No frame Vibration at high speed; thin-wall parts are free of scratches during fast pick-up to reduce defective losses. Most robots either Vibration at high speed or run slowly for stability. This unit achieves both high speed and stability,maintaining consistent precision and firm motions during long-hour non-stop mass production.
Equipment Parameters
Speed brings efficiency; stability brings profit. Specifications are not for show,but for day-to-day stable and high-efficiency production. Every cycle runs reliably. Efficiency lies in milliseconds,and profits stem from consistency. It practically helps factories boost output,stabilize yield rate and cut waste losses.
| High Speed Bull Head Style 3 Axis Full Servo Injection Robot | |||||
| Model description | Unit | KWIII-NH1000P | KWIII-NH1100P | KWIII-NH1200P | KWIII-NH1300P |
| I.M.M.Range | T | 200-260 | 300-360 | 380-420 | 450-550 |
| L | mm | 2250 | 2490 | 2670 | 2670 |
| W | mm | 1140 | 1200 | 1380 | 1380 |
| H | mm | 1560 | 1560 | 1680 | 1740 |
| X | mm | 470 | 530 | 710 | 710 |
| Y | mm | 1000 | 1100 | 1200 | 1300 |
| Z | mm | 1320 | 1560 | 1740 | 1740 |
| Gripper angle | ° | 90 | |||
| Max load | Kg | 5 | 5 | 6 | 6 |
| Minimum take out time | S | 0.5 | 0.5 | 0.55 | 0.6 |
| Drive system | V3-AC Servo Motor | ||||
| Working air pressure | Kgf/cm² | 5 | |||
| Air consumption | NL/cycle | 7 | 9 | 11 | 13 |
| Power | V | AC220V±10 50/60HZ Single Phase | |||
| Weight | Kg | 310 | 316 | 336 | 356 |

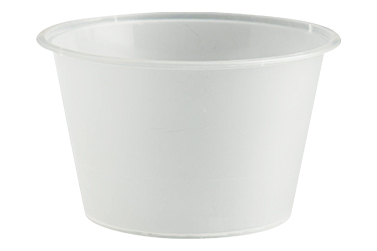

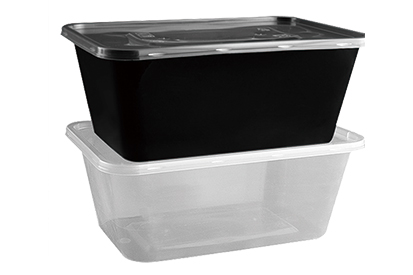

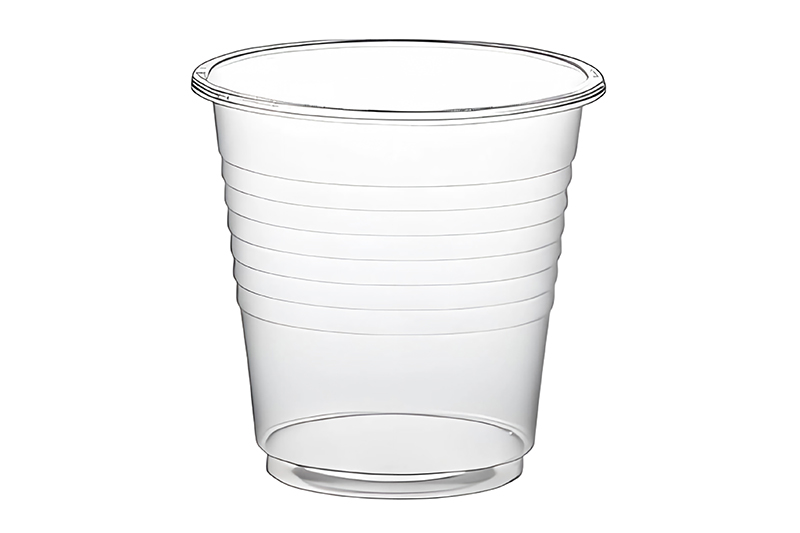

Applicable Products
Short cycle time,fast part-removal,high-cycle-rate,lightweight work-pieces for high-volume injection molding production.

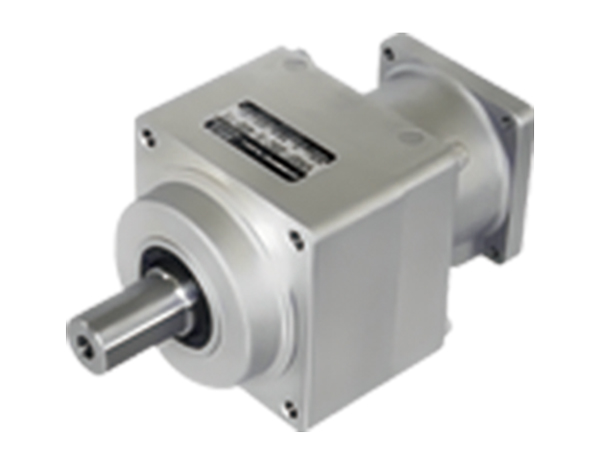

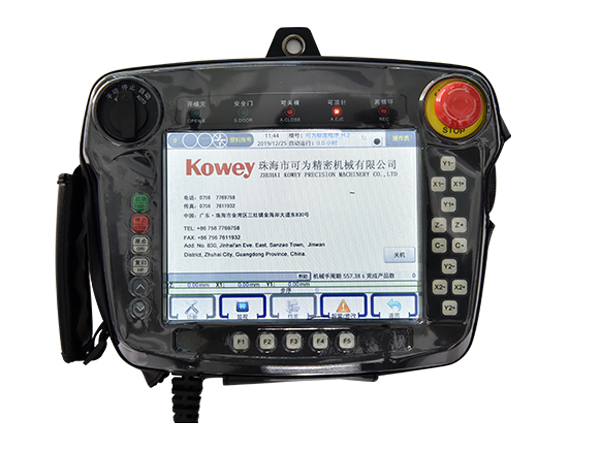

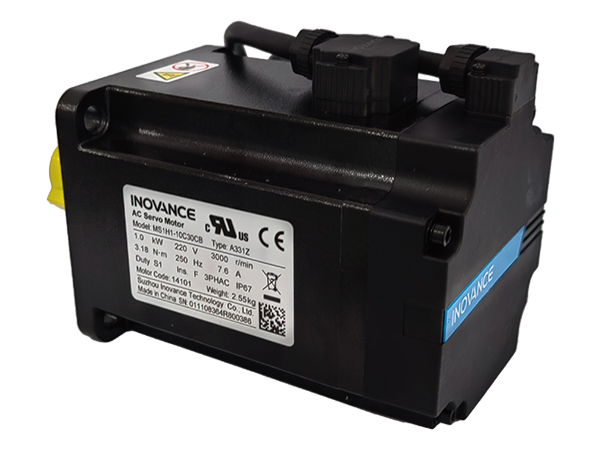

Core Components
For High Speed Bull Head Style 3 Axis Full Servo Injection Robot, main components are globally selected with strict multi-level quality control. Overall machine quality is guaranteed from the source to avoid unexpected downtime during mass production. Fully oriented to real-world workshop scenarios,it delivers stable output right after startup.

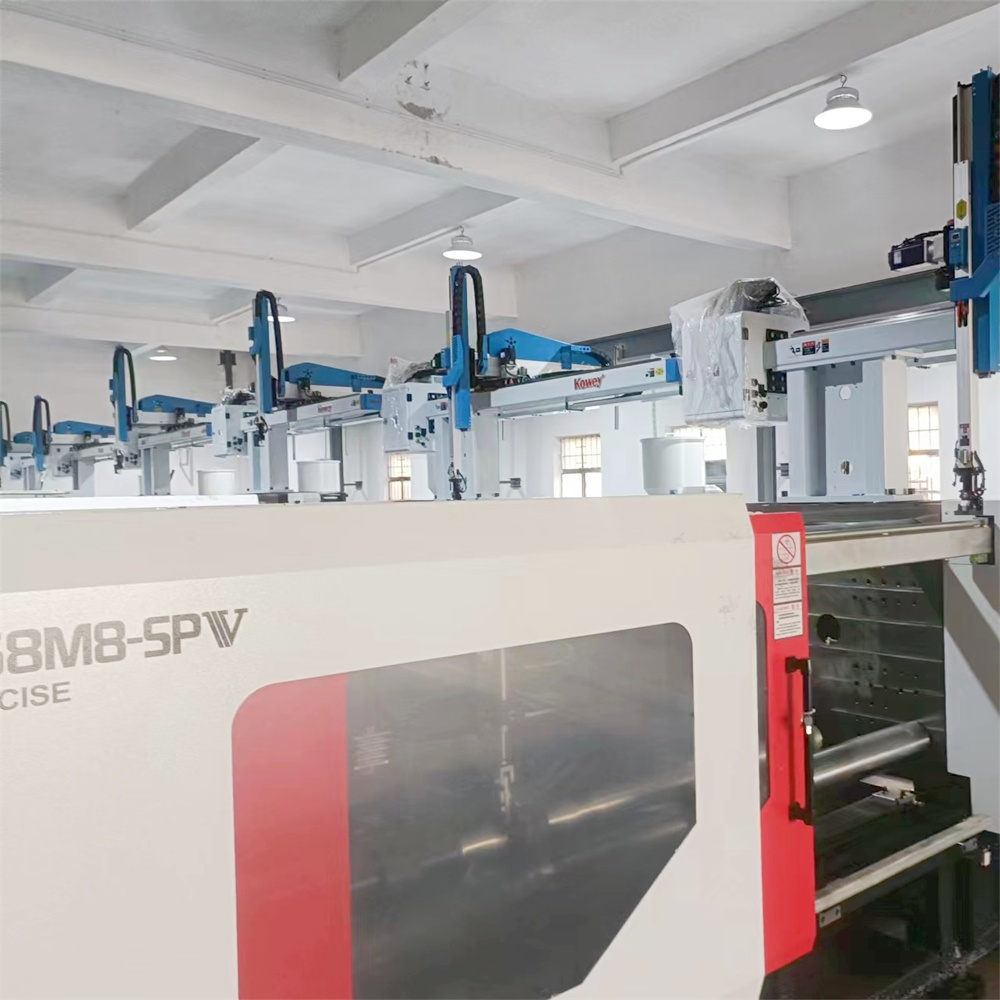

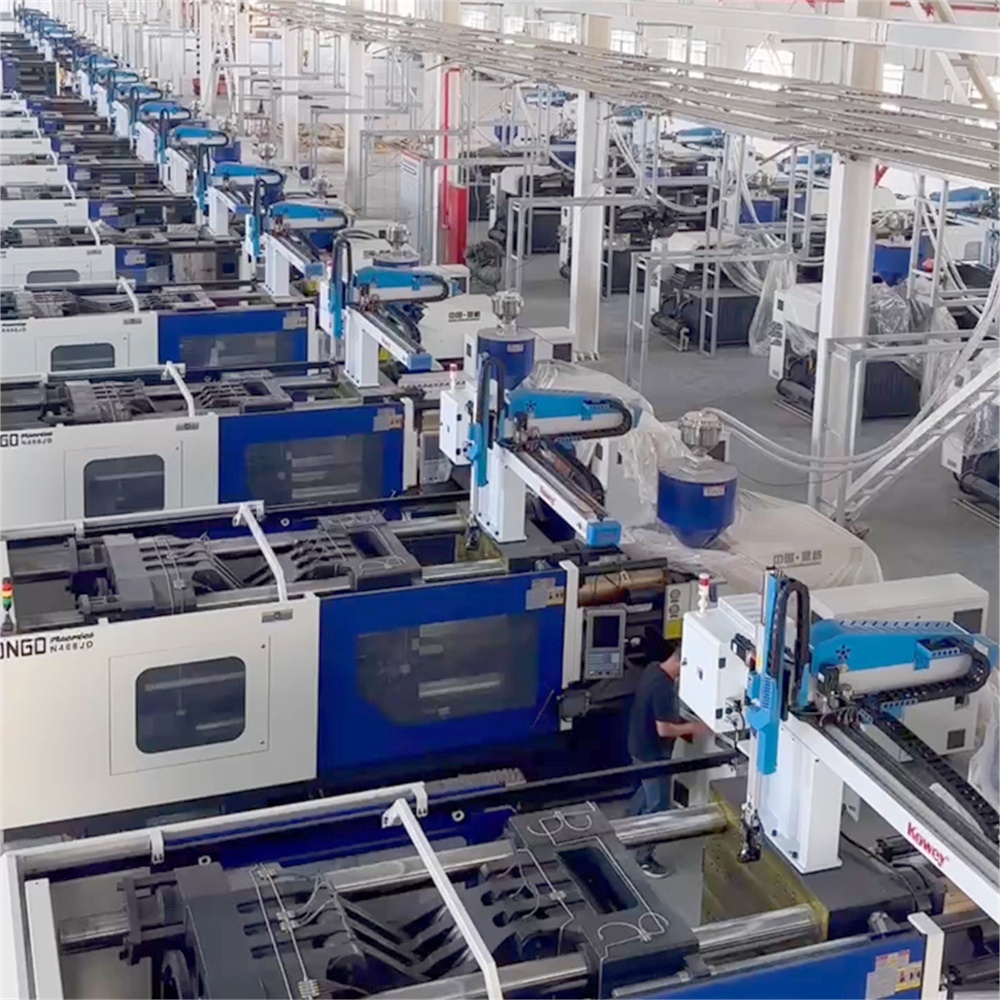

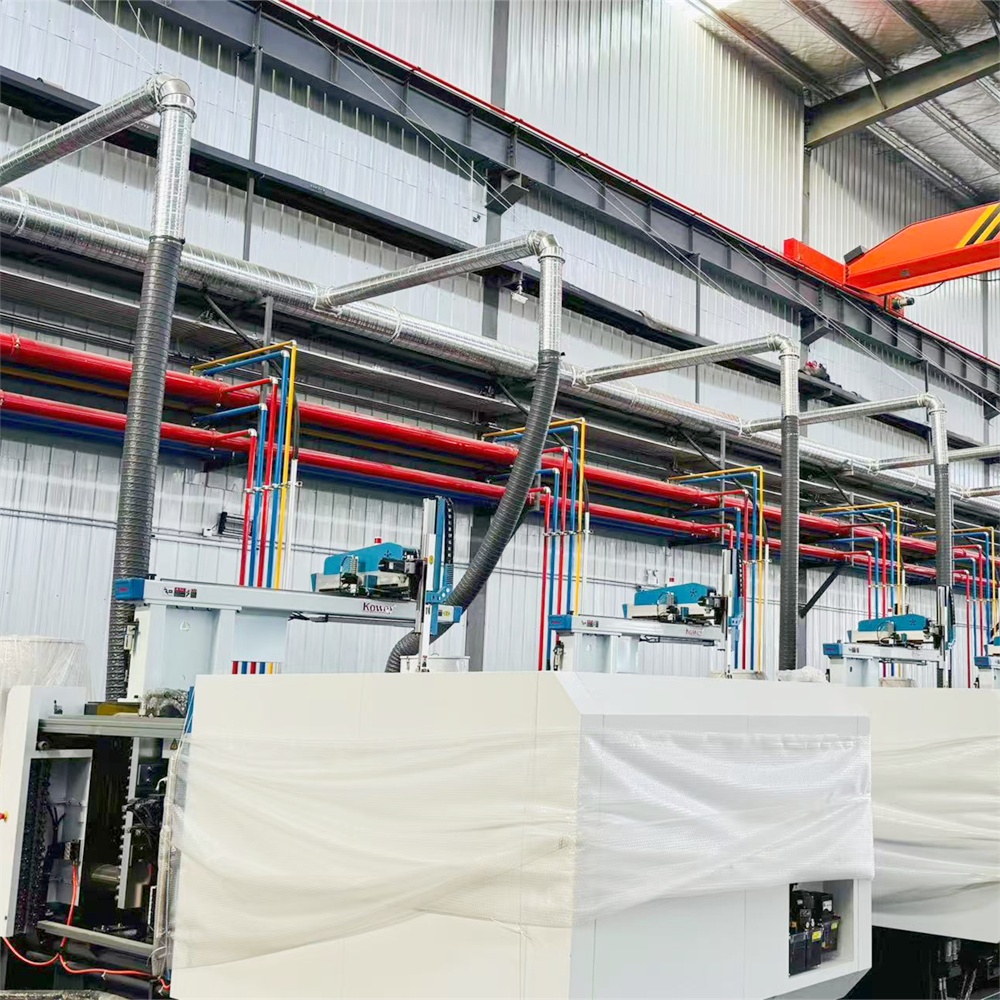

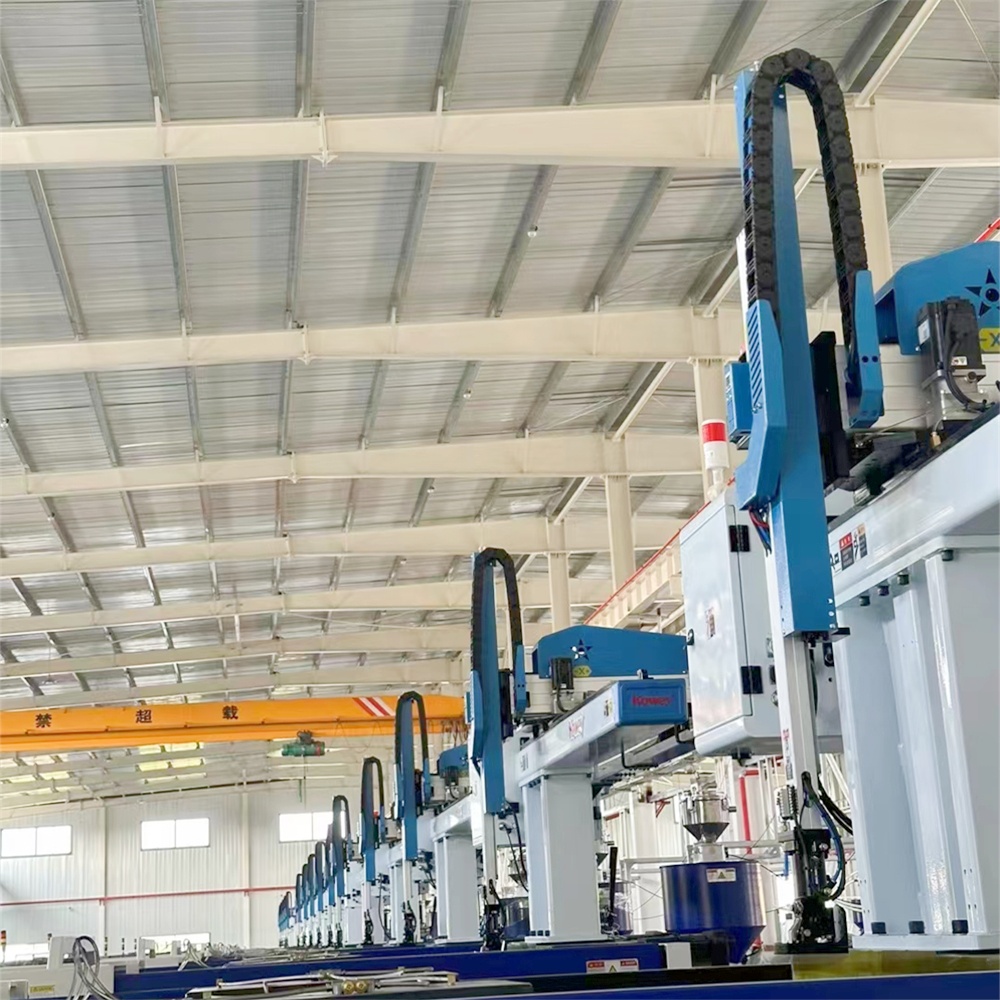

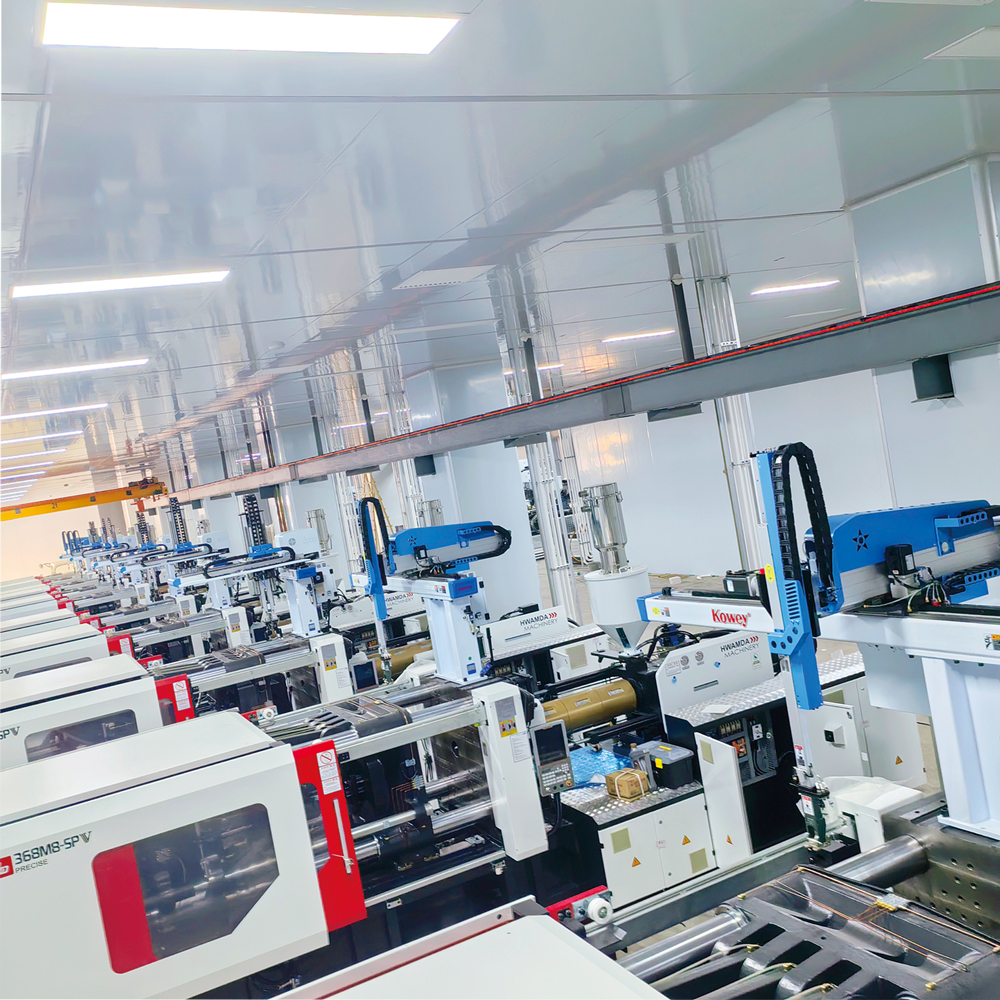

Application Site & Customer Feedback
At numerous customer sites,production lines for lunch boxes,thin-wall packaging and plastic products keep running continuously. Many customers report: after adopting this robot,cycle time is effectively shortened and yield rate rises significantly. Frequent disposal of Vibration-caused defective parts is eliminated. Operators no longer spend excessive time on machine tuning; one worker can manage multiple machines to optimize labor cost. The equipment runs reliably during peak order periods for secure delivery. With identical injection molding machines,molds and raw materials,robot performance directly determines factories' profit gap.

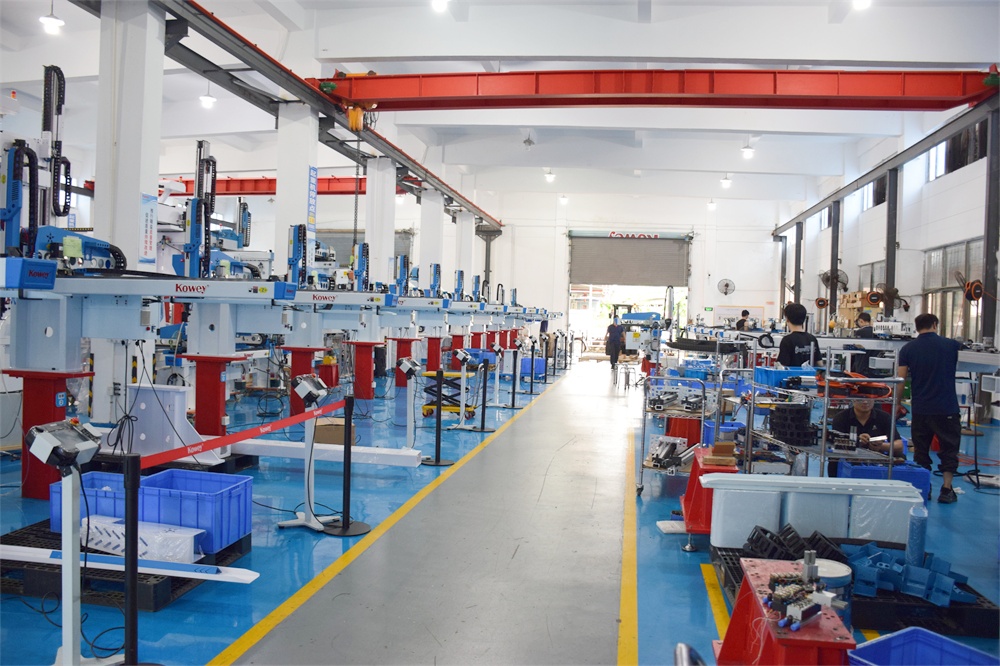

Why Choose KOWEY?
Choose a reliable High Speed Bull Head Style 3 Axis Full Servo Injection Robot to enable your thin-wall production lines for both high speed and stable quality,and turn every order into solid revenue. Secure your competitive edge amid fierce market competition. KOWEY is deeply rooted in injection automation. We understand workshop hardships and business owners' challenges. With reliable robots,we act as your quiet and dependable partner on production lines.
