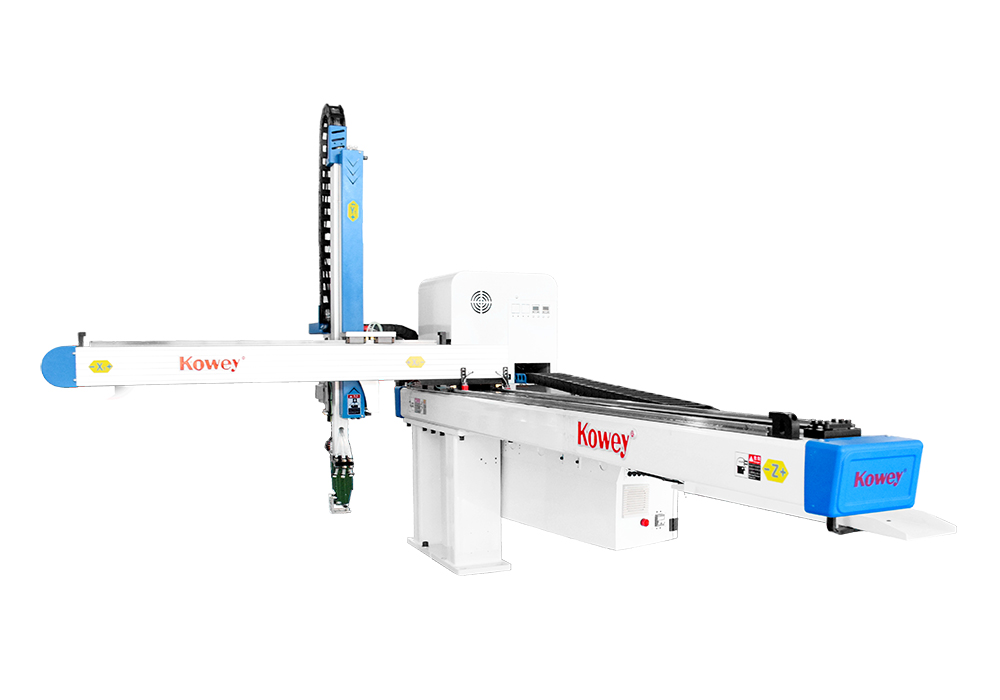

Light 3 Axis Full Servo Double Stage Single Arm Injection Robot
Equipment Details
The Light 3 Axis Full Servo Double Stage And Single Arm Injection Robot adopts traverse-type 3-axis servo drive architecture with double-stage telescopic single-arm structure. Compared with traditional robots, it delivers smoother telescopic movement and occupies less mold-side space. With modular integrated design, the machine body features compact and simplified structure for easy installation and commissioning, and can be quickly adapted to various horizontal injection molding machines of 400-650T. Independent 3-axis servo control enables accurate point-to-point positioning and flexible motion. Multi-segment speed and position parameters can be custom-adjusted to satisfy part-taking requirements for diverse mold structures and product specifications. It supports multiple working conditions including general plastic molding, precision small-part molding and thick-wall product molding with strong universality.
Equipment Advantages
Lightweight & Compact Design for Narrow Space: Optimized for overall lightweight performance, the robot abandons bulky traditional structures with small footprint for installation. The double-stage telescopic arm greatly reduces static body length without requiring extra large operating space. It perfectly suits production workshops with compact layout and narrow machine-to-machine gaps, effectively saving plant space and meeting renovation-upgrade demands of small-and-medium-sized injection-molding workshops.
Enhanced Structural Design for Stable Heavy-load Bearing: Core load-bearing sections are made of high-strength alloy with precision machining and reinforcement treatment for high structural rigidity and anti-deformation performance. Optimized mechanical support improves load stability to handle standard-working-condition loads steadily. It is suitable for picking medium-to-large injection-molded products with zero jitter or offset under long-term high-frequency operation, greatly boosting equipment durability.
High-precision Servo Control & Dynamic Response: Equipped with high-quality 3-axis servo motors and precision transmission components, it features quick response and accurate positioning with repeat positioning accuracy of ±0.05 mm. It realizes precise pick-and-place of precision plastic parts and avoids scratching, offsetting or dropping of products. It supports fast start-stop and flexible speed regulation with smooth dynamic operation, perfectly matching short-cycle and high-precision injection-molding requirements and lowering product defect rate effectively.
Stable-efficient Operation & Easy Maintenance: The simplified overall transmission structure lowers failure rate of core components. The robot runs with low noise and high stability for long-time continuous production, lifting injection-molding capacity by 10%-30%. Modular assembly design enables clear structure and easy disassembly & assembly. Only simple cleaning and lubrication are required for daily upkeep without complicated overhaul, greatly reducing post-operation-maintenance cost and downtime.
Equipment Parameters
Applicable Injection Molding Machine Tonnage: 400-650T; Effective Y-axis Stroke: 1300 mm; Driving Mode: 3-axis Full-servo Drive; Structure Type: Double-stage Telescopic Single Arm; Repeat Positioning Accuracy: ±0.05 mm; Maximum Picking Speed: Matches standard injection molding cycle; Applicable Working Condition: Normal continuous automated injection-molding production; Installation Mode: Machine-mounted Fixed Installation.
Light 3 Axis Double Stage And Single Arm Injection Robot | ||
Model description |
Unit |
KWⅢ-1300P |
I.M.M.Range |
（T） |
400-650 |
L |
mm |
2750 |
W |
mm |
1930 |
H |
mm |
1640 |
X |
mm |
1080 |
Y |
mm |
1300 |
Z |
mm |
1940 |
Gripper angle |
(°) |
90 |
Max load |
Kg |
10 |
Minimum take out time |
（S） |
2.2 |
Drive system |
V3-AC Servo Motor |
|
Working air pressure |
Kgf/cm² |
5 |
Air consumption |
NL/cycle |
10.5 |
Power |
V |
AC220V±10 50/60HZ Single Phase |
Weight |
Kg |
355 |
Applicable Products
The Light 3 Axis Double Stage And Single Arm Injection Robot is widely applicable to various plastic products produced by 400-650T injection molding machines, including home-appliance plastic accessories, small-and-medium-sized automotive plastic components, daily-use plastic articles, packaging plastic parts and industrial plastic structural components. It performs stable, fast and accurate automatic part-taking for both large-size standard plastic housings and well-structured medium-precision plastic parts, covering most civil and industrial plastic-molding production scenarios.
Core Accessories
All core accessories adopt high-quality industrial-grade components to guarantee long-term stable operation, mainly including brand-name servo motors, precision servo drivers, high-precision ball screws, linear guides, wear-resistant transmission gears, intelligent control system, inductive sensors, high-strength mechanical grippers, voltage-stabilized power-supply modules, etc. Featuring high accuracy, superior wear resistance and long service life, these core parts fundamentally secure the operating accuracy, stability and service life of the whole equipment.
On-site Application & Customer Feedback
The Light 3 Axis Double Stage And Single Arm Injection Robot has been widely deployed in plastic injection molding factories, home-appliance accessory plants and automotive-component manufacturers for various small-and-medium-sized automated injection-molding lines. Field practices prove its easy installation, simple commissioning and low operation threshold. It can be quickly integrated into existing injection-molding lines without major layout modification. Customers generally report stable operation and accurate part-taking. It thoroughly solves pain points such as low manual-picking efficiency, easy product scratching, high labor cost and potential safety hazards. It remarkably improves line automation degree and production capacity with steadily rising product yield, worry-free maintenance and outstanding cost-performance.
Why Choose KOWEY?
KOWEY Intelligent focuses on R&D, manufacturing and customized services for injection-molding automation equipment. With years-long industry experience, it owns mature technical R&D system and production processes. This robot has undergone multiple structural optimizations and performance upgrades to fit working conditions of domestic small-and-medium-sized injection-molding workshops with balanced quality and cost-performance. The brand provides one-stop full-range services covering equipment selection, installation & commissioning, technical training and after-sales maintenance with fast response and complete service system. Every unit undergoes strict factory inspection to meet high-industry standards in accuracy, stability and durability. It helps customers cut costs, raise efficiency and realize automation upgrading, making it the preferred equipment for small-and-medium-sized injection-molding enterprises to improve quality and productivity.
