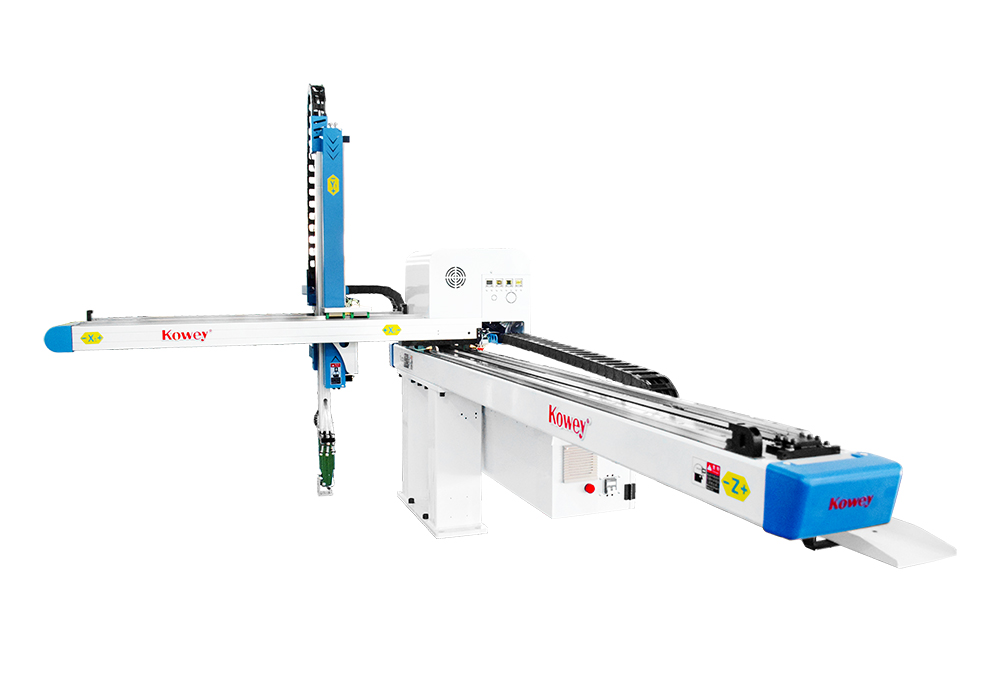

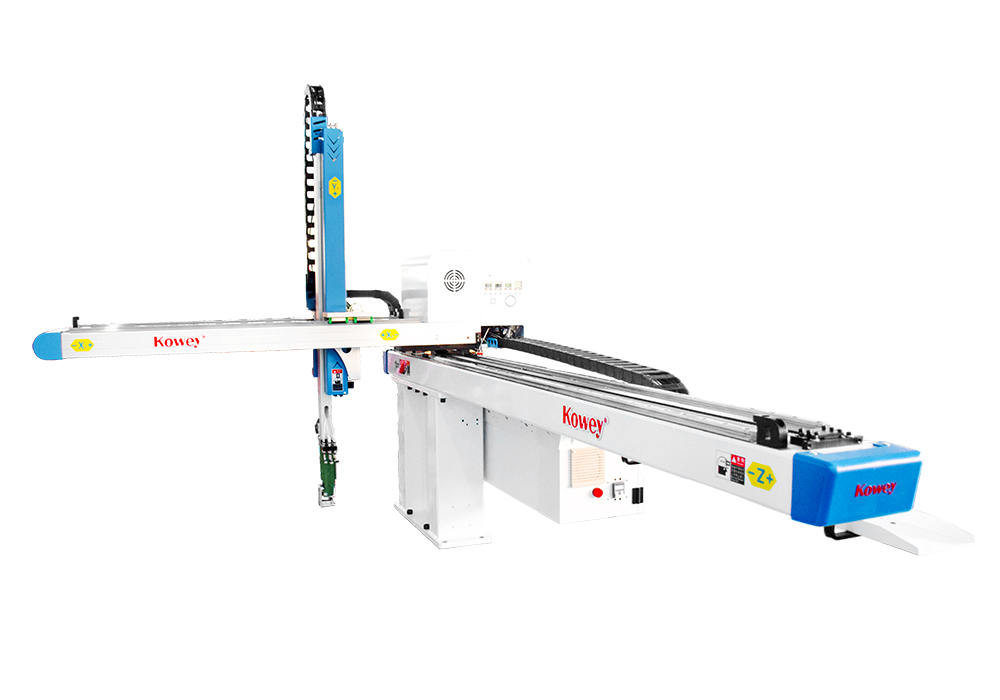

Light 3 Axis Pick and Place Injection Robot
Equipment Details
This Light 3 Axis Pick and Place Injection Robot adopts traverse-type 3-axis servo transmission structure. The traverse, kick-off and vertical axes are independently servo-controlled, paired with double-stage telescopic arm design for sufficient telescopic stroke and strong mold-opening-closing adaptability. The whole machine features modular integrated structure with lightweight forged material for the body. Compact, stable and easy-to-install, it requires no major modification to workshop premises. Equipped with an intelligent control system with concise and intuitive operation interface, it supports one-click parameter setting and multi-group program storage to meet production requirements of different molds and products. It also enables quick commissioning and cycle-time adjustment, compatible with various production modes including continuous mass production and intermittent production, suitable for most small-and-medium-sized injection molding working conditions.

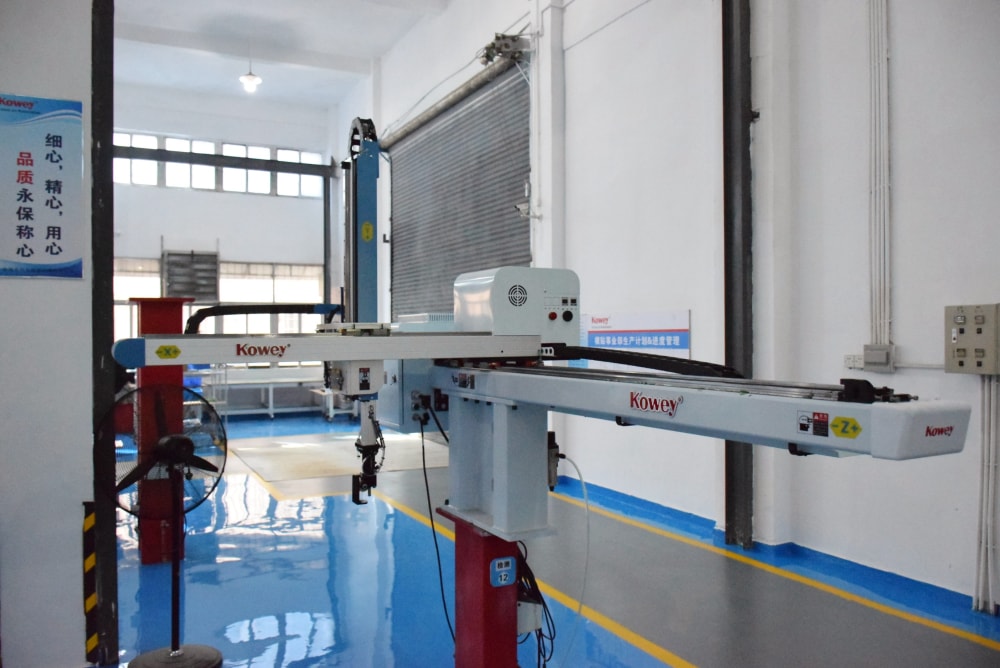

Equipment Advantages
Lightweight & Compact Design for Narrow Spaces
Featuring small overall dimension and light weight, the equipment greatly reduces floor space compared with traditional heavy-duty robots. It fits small-and-medium-sized injection workshops with dense workstations and compact equipment layout. The compact double-stage telescopic arm adapts to molds with narrow mold opening and avoids arm interference issues of traditional robots. Flexible for installation without site-space restrictions, it supports renovation and upgrade of old workshops and compact production lines.
Energy-saving, High-efficiency & Easy Maintenance
It adopts precise servo drive to output power on demand, eliminating continuous energy consumption of traditional pneumatic equipment and cutting operating energy consumption significantly. With simple structure and clearly-arranged modular accessories without redundant complicated components, it can run stably with only routine cleaning and rail lubrication. It features low failure rate and convenient disassembly & assembly for repair, effectively reducing equipment downtime and ensuring continuous production-line operation.
High-precision Servo Control & Dynamic Response
All three axes are fitted with high-precision servo motors and drive systems, together with precision linear guide transmission for smooth operation and fast dynamic response. Its repeat positioning accuracy reaches ±0.05 mm to realize accurate and offset-free material picking. It can quickly match injection molding cycle, shorten material-taking interval and improve overall production efficiency, eliminating defective products caused by manual picking deviation.
Cost-effective for Cost Reduction & Benefit Improvement
With customer-friendly pricing matching automation-upgrade budgets of small-and-medium-sized enterprises, it greatly cuts procurement cost versus imported equipment. Capable of stable non-stop 24-hour operation, it replaces manual repetitive material-taking work to lower labor cost. Meanwhile, it reduces reject rate and safety risks stemming from human operating errors, markedly lifting product yield and production capacity for quick payback and efficiency gain.
Equipment Parameters
Compatible injection-molding machine tonnage: 50-450T
Drive mode: 3-axis Full Servo drive
Operating system: Intelligent touch control system, supporting program storage & one-click commissioning
Working modes: Automatic, semi-automatic, manual commissioning
Applicable environment: Normal-temperature working conditions for standard injection workshops
| Light 3 Axis Double Stage And Single Arm Injection Robot | ||||
|
Model description |
Unit |
KWⅢ-700P |
KWⅢ-900P |
KWⅢ-1100P |
|
I.M.M.Range |
（T） |
50-200 |
200-350 |
300-450 |
|
L |
mm |
2050 |
2230 |
2530 |
|
W |
mm |
1570 |
1630 |
1810 |
|
H |
mm |
1360 |
1480 |
1600 |
|
X |
mm |
720 |
780 |
960 |
|
Y |
mm |
700 |
900 |
1100 |
|
Z |
mm |
1160 |
1340 |
1640 |
|
Gripper angle |
(°) |
90 |
||
|
Max load |
Kg |
4 |
6 |
8 |
|
Minimum take out time |
（S） |
1.2 |
1.6 |
1.8 |
|
Drive system |
V3-AC Servo Motor |
|||
|
Working air pressure |
Kgf/cm² |
5 |
||
|
Air consumption |
NL/cycle |
3.5 |
3.5 |
8.5 |
|
Power |
V |
AC220V±10 50/60HZ Single Phase |
||
|
Weight |
Kg |
286 |
298 |
310 |

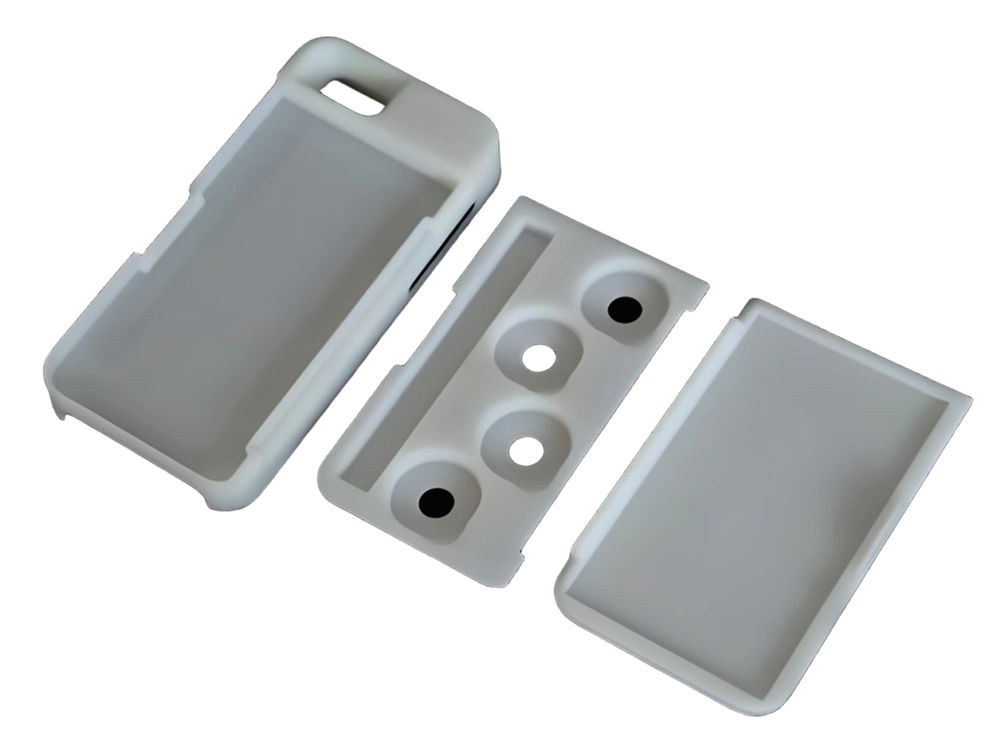

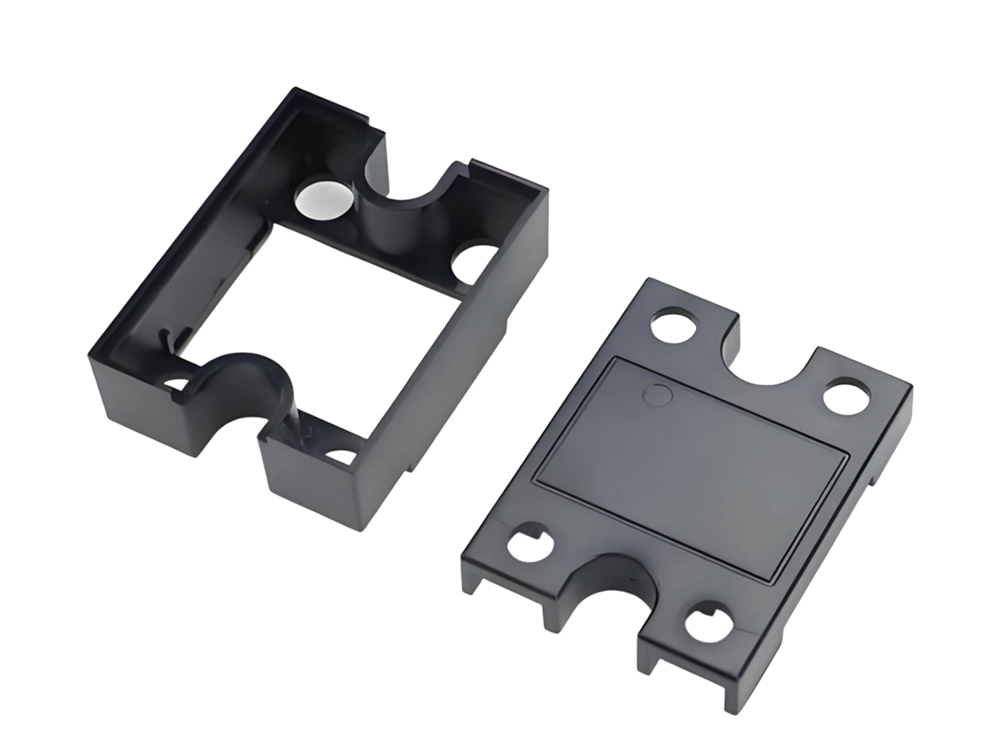

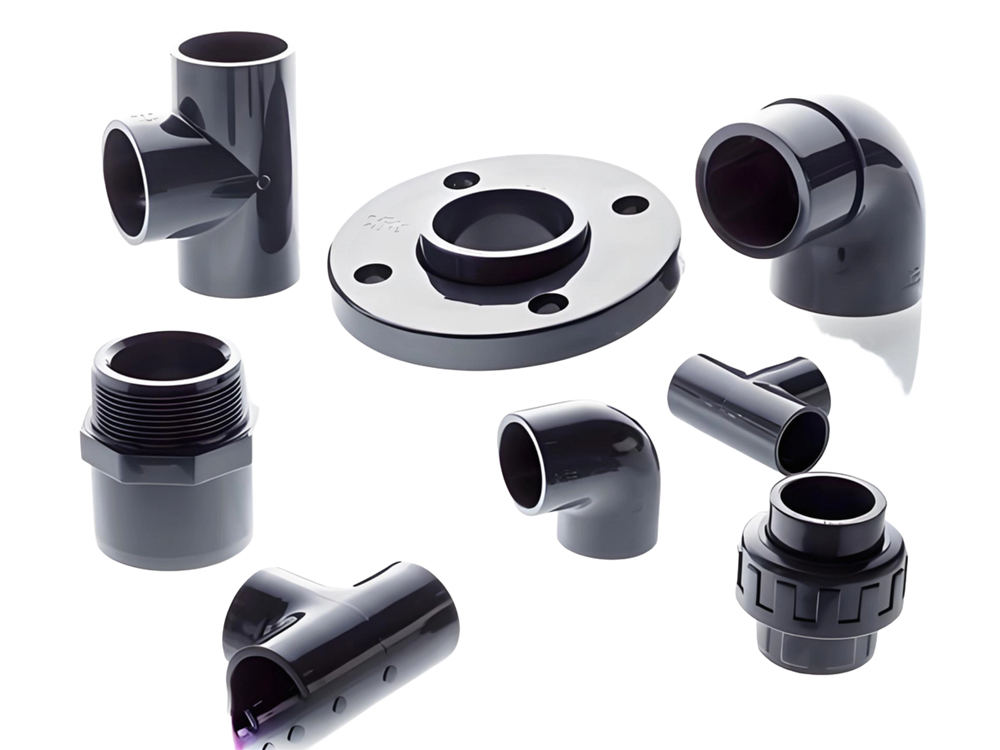

Applicable Products
This Light 3 Axis Full Servo Pick and Place Injection Robot is widely applied to production scenarios of various small-and-medium-sized injection-molded products, mainly including precision plastic components for 3C electronics, small home-appliance housings, small automotive interior parts, daily plastic articles, small medical-device accessories and plastic packaging parts. It can stably perform material picking, blanking and sorting for thin-wall precision small parts, conventional solid plastic parts as well as small-and-medium-sized housing products, satisfying multi-category, small-batch and large-batch mass-production requirements.
Core Components
High-quality industrial-grade components are adopted for all core parts to guarantee long-term stable operation. Core drive parts are well-known-brand servo motors and servo drivers for stable power output and sensitive response; transmission parts consist of precision linear guides and synchronous transmission modules for high wear resistance and accurate transmission; the control core is a dedicated intelligent control system with stable computation and strong anti-interference capability; executive parts include high-sensitivity pneumatic grippers and reed sensors for firm clamping and accurate detection; the machine body is made of high-strength aluminum alloy, realizing lightweight property together with high rigidity and anti-deformation performance.

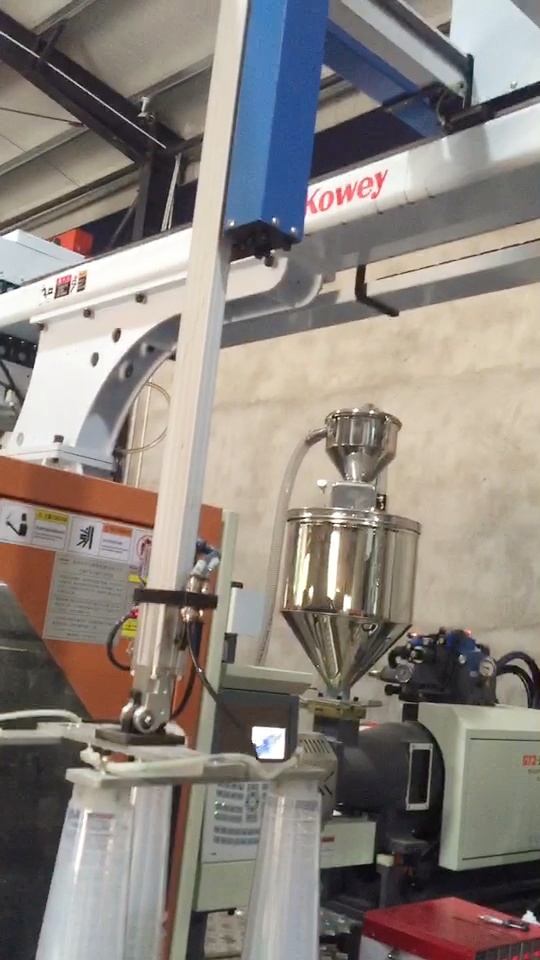

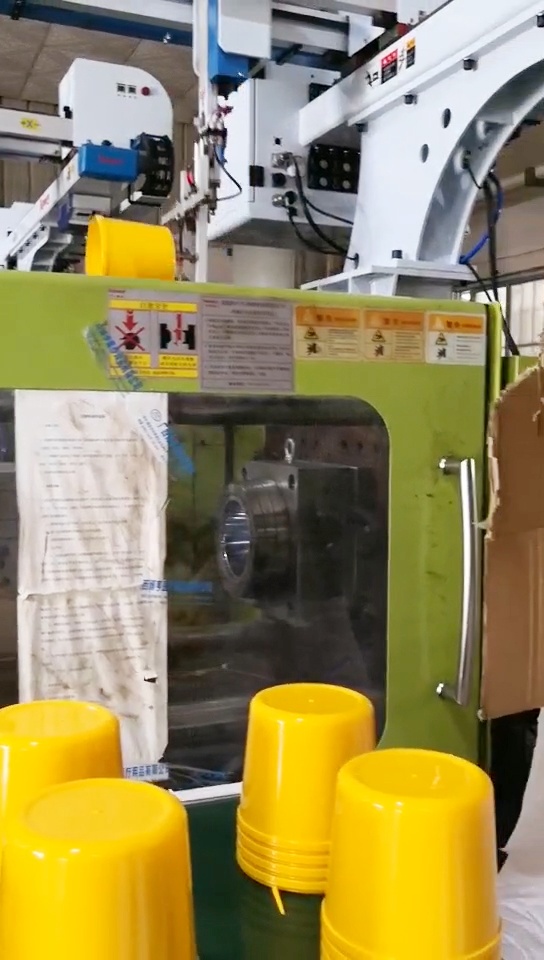

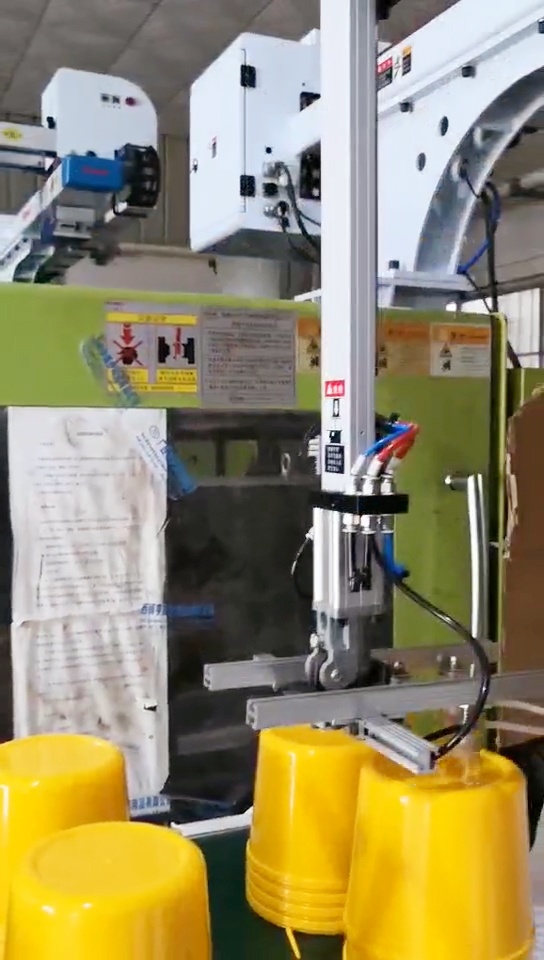

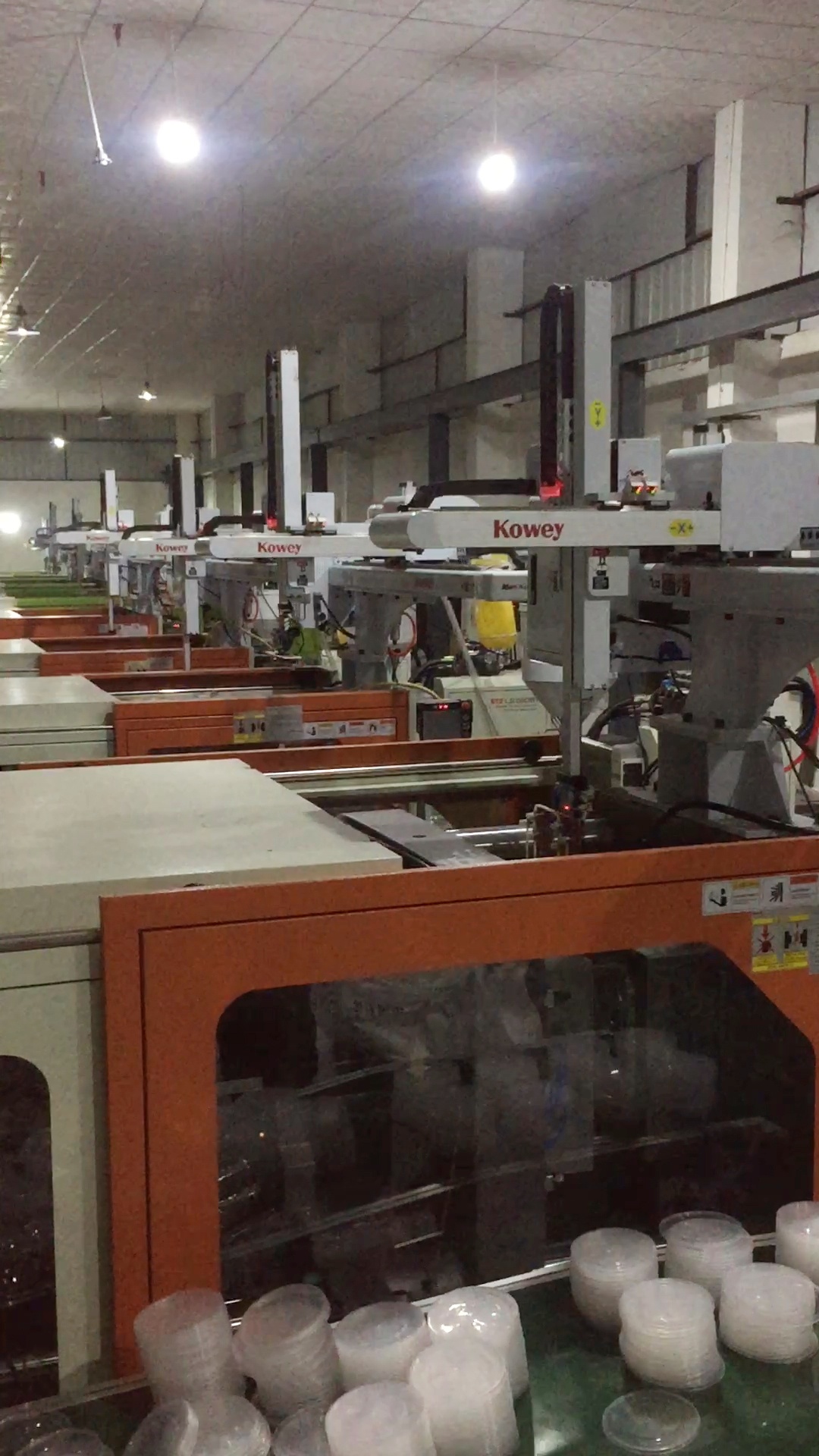

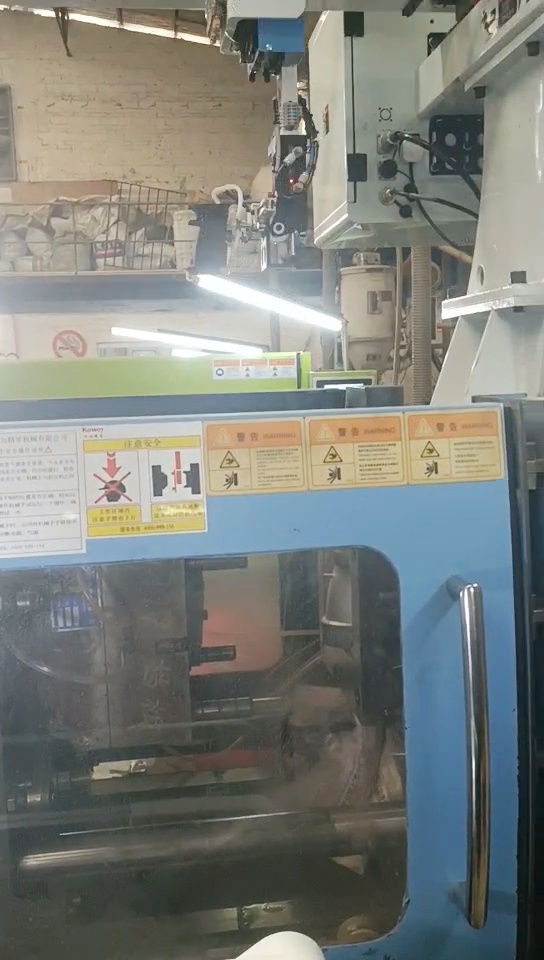

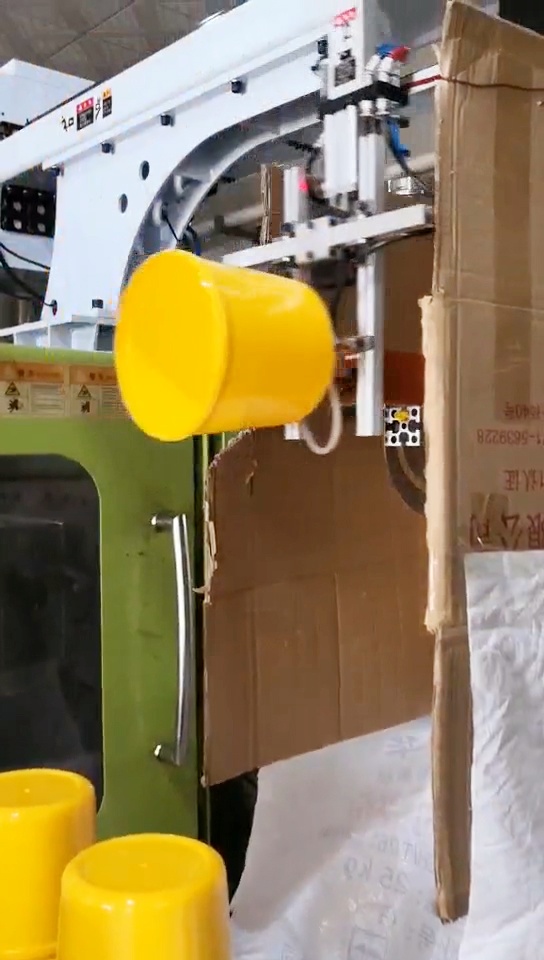

Application Site & Customer Feedback
This Light 3 Axis Pick and Place Injection Robot has been widely deployed in injection workshops of plastic processing, electronic manufacturing, auto-parts production and other industries, compatible with various small-and-medium-sized injection production lines. It runs stably on-site, perfectly fits compact workstation layouts and quickly adapts to production with diverse molds. Most customers report easy installation & commissioning and user-friendly operation, with barely any failure-caused downtime during mass production. It effectively addresses pain points including low manual picking efficiency, unstable yield and high labor cost. After manual labor is replaced by automated operation, production-line capacity rises by 15%-30%, product reject rate drops substantially, and workshop production standardization is greatly enhanced.
Why Choose KOWEY?
With years of deep engagement in injection automation equipment, KOWEY boasts mature capabilities in equipment R&D, manufacturing and customized services, together with a complete quality-control system. Every unit undergoes multiple rounds of accuracy and stability tests before delivery for reliable quality. Customized commissioning and adaptation solutions are available for customers with different production working conditions to balance universality and practicality. A professional pre-sales and after-sales team provides free on-site installation, commissioning and technical training to ensure stable equipment operation throughout the whole life-cycle. Compared with competing products, KOWEY equipment delivers high quality at competitive prices, featuring fast after-sales response and low maintenance cost, helping enterprises realize automation upgrade of injection production lines with low cost and high efficiency.
