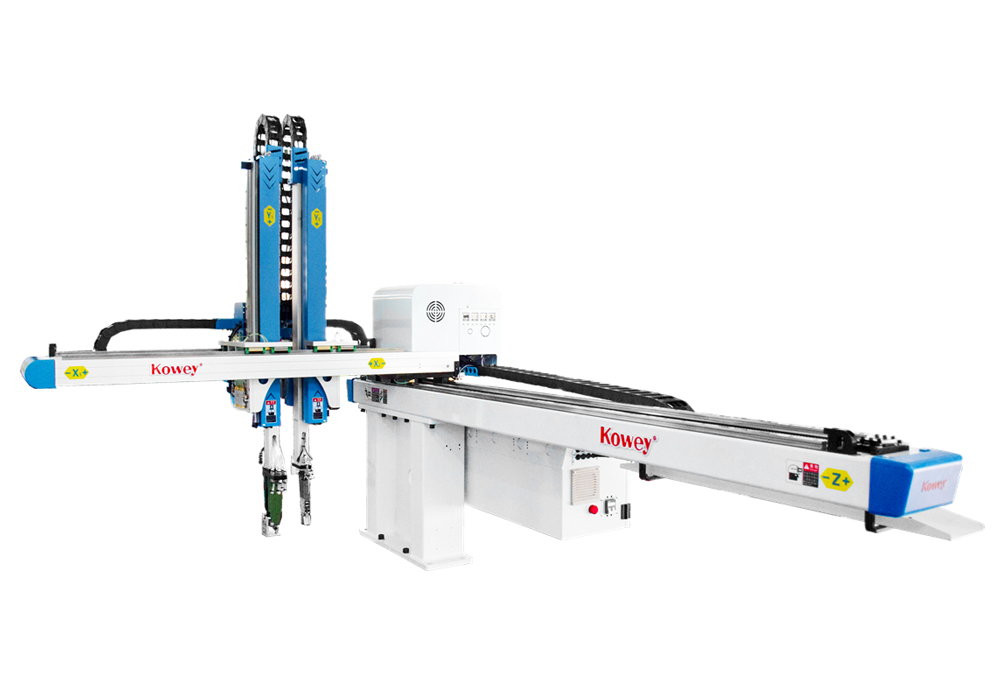

Light 5 Axis Double Stage And Double Arm Injection Robot
Equipment Details
This equipment adopts traverse-type 5-axis servo drive architecture,equipped with double-stage telescopic and double-arm cooperative working structure. The overall lightweight body design occupies little workshop space and enables convenient installation and commissioning.
Adopting full-process servo closed-loop control,the equipment runs smoothly without jitter. It can match horizontal injection molding machines,supports customized stroke and operation modes,and is compatible with multiple mold manufacturing processes including single mold,stack mold and three-plate mold. It adapts to diversified injection molding working conditions with great universality.

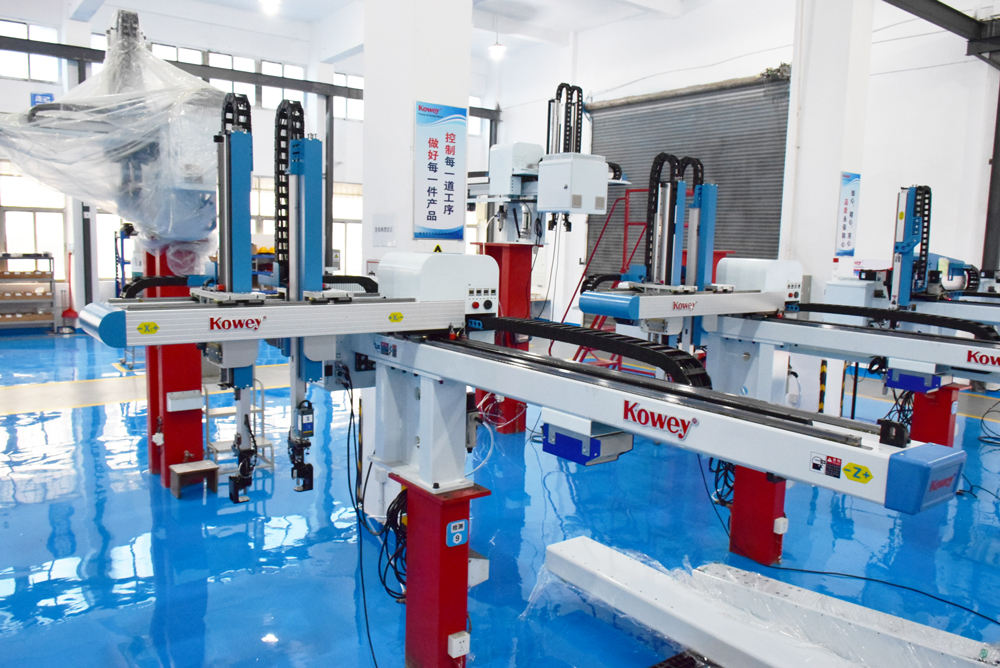

Equipment Advantages
5-Axis Degree of Freedom,Double-Stage & Double-Arm Design
With independent full-servo control for 5 axes,its degrees of freedom are flexibly adjustable to realize multi-angle and multi-dimensional complex motions. The double-stage telescopic structure delivers sufficient telescopic stroke and accurate operation spacing. Two arms can work cooperatively or independently: the main arm picks finished products while the auxiliary arm takes sprues,finishing two procedures simultaneously to greatly shorten production cycles,suitable for complex material-picking and insert-embedding scenarios.
High Flexibility & Cost-Performance
The equipment supports flexible programming and commissioning,enabling rapid product changeover for multi-variant and small-batch alternating production. Compared with multi-axis heavy-duty robots,it features lower procurement and operation-maintenance costs. Replacing manual work,it cuts labor expenses with low failure rate,offering far better long-term cost-performance than traditional automatic equipment and manual operation.
Lightweight,Energy-Saving & High-Efficiency
The body is made of high-strength lightweight materials for stable structure and lighter self-weight,effectively lowering operating load. The servo drive consumes energy on demand,greatly cutting energy loss versus conventional pneumatic and hydraulic robots. It features low running noise for energy conservation and environmental-friendliness. Meanwhile,the lightweight structure realizes faster start-stop response and remarkable improvement of working efficiency.
Strong Task-Processing Capacity & Wide Applicability
It can operate stably 7x24 hours non-stop with high repeat positioning accuracy,realizing stable picking without dropping or scratching products. It satisfies fast picking of standard plastic parts,as well as picking,stacking and sorting for precision small parts,large housings and special-shaped work-pieces. With comprehensive task-processing capacity,it fits most injection molding production scenarios.
Equipment Parameters
Compatible injection molding machine tonnage: 50-650T; Y-axis stroke: 700-1300MM; Equipped with integrated drive-control system featuring strong anti-interference performance and precise repeat positioning. It supports long-distance communication and function expansion for stable operation and easy maintenance.
| Light 5 Axis Double Stage And Double Arm Injection Robot | |||||
| Model description | Unit | KWV-700PR | KWV-900PR | KWV-1100PR | KWV-1300PR |
| I.M.M.Range | (T) | 50-200 | 200-350 | 300-450 | 400-650 |
| L | mm | 1970 | 2150 | 2450 | 2750 |
| W | mm | 1570 | 1630 | 1810 | 1930 |
| H | mm | 1280 | 1400 | 1520 | 1640 |
| X | mm | 560 | 620 | 800 | 920 |
| Y | mm | 700 | 900 | 1100 | 1300 |
| Z | mm | 1160 | 1340 | 1640 | 1940 |
| Gripper angle | (°) | 90 | |||
| Max load | Kg | 4 | 6 | 8 | 10 |
| Minimum take out time | (S) | 1.2 | 1.6 | 1.8 | 2.2 |
| Drive system | V5-AC Servo Motor | ||||
| Working air pressure | Kgf/cm² | 5 | |||
| Air consumption | NL/cycle | 4 | 4 | 9 | 11 |
| Power | V | AC220V±10 50/60HZ Single Phase | |||
| Weight | Kg | 330 | 345 | 360 | 370 |

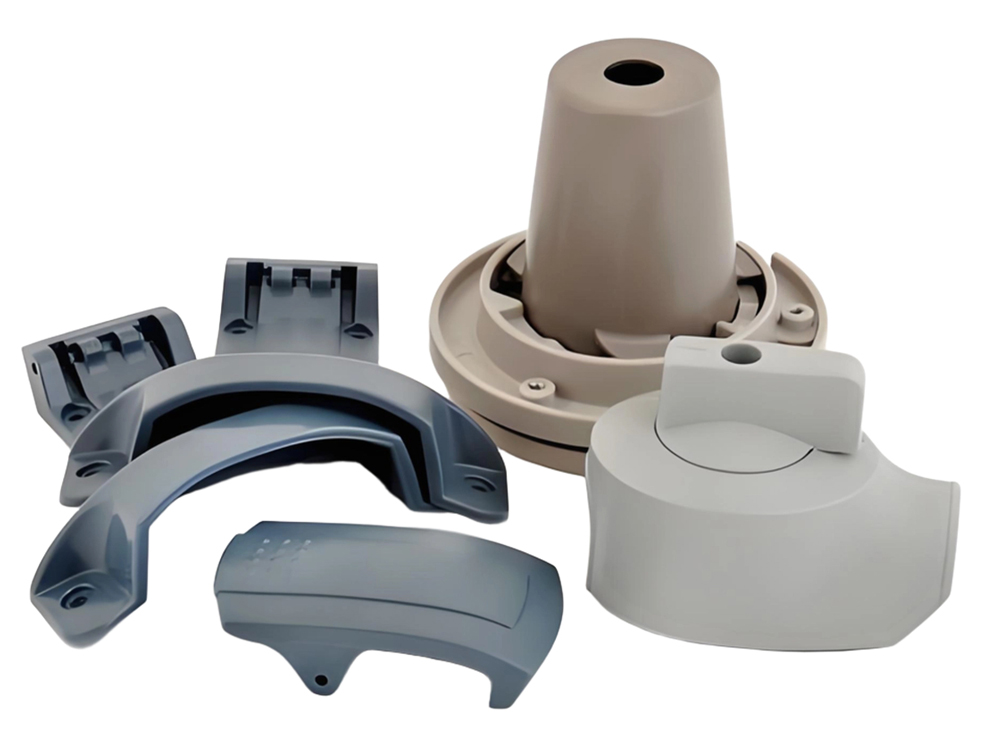

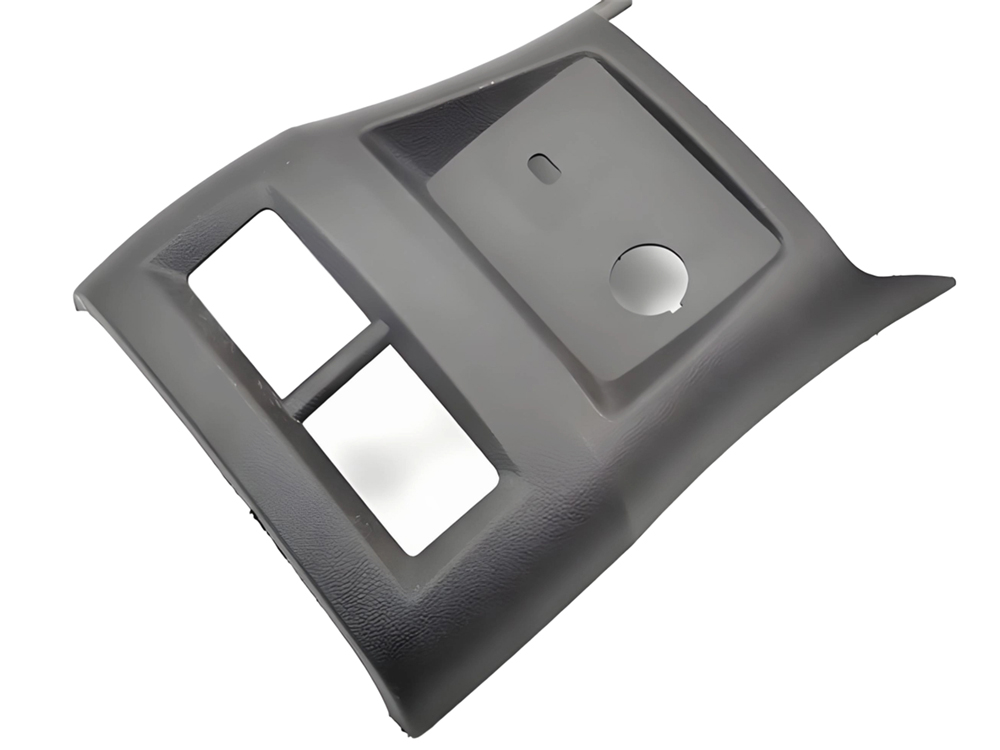

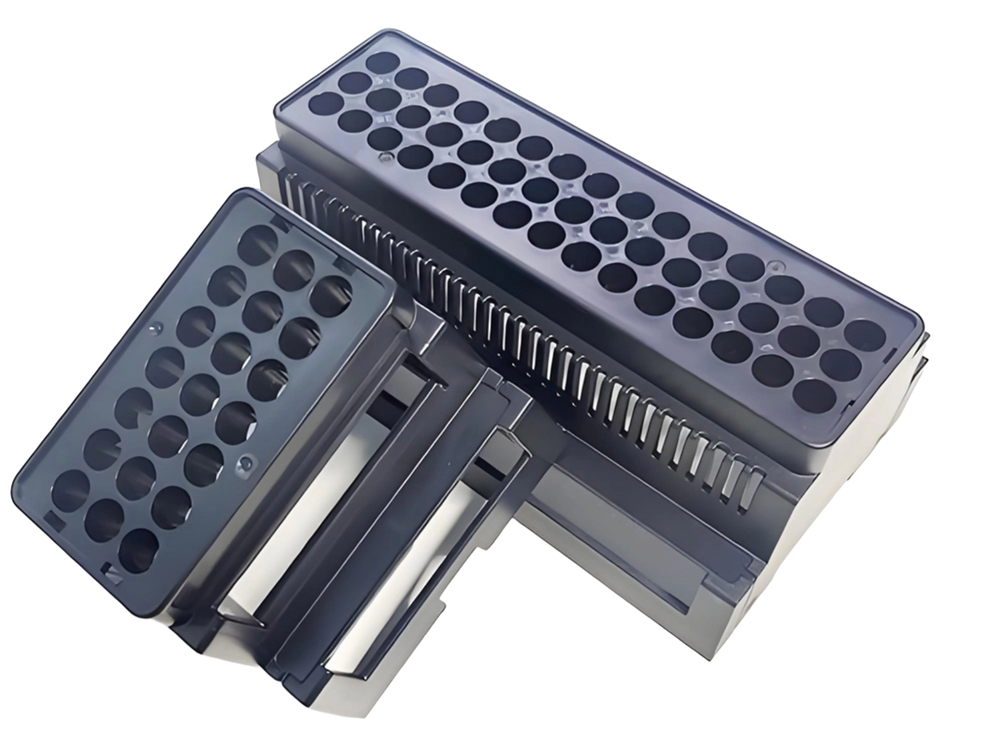

Applicable Products
Widely applicable to various injection-molded products including home-appliance plastic accessories,automotive interior small parts,electronic precision plastic components,daily-use product housings,medical-device plastic parts and plastic packaging goods. It meets automatic production demands for precision small parts,standard parts and large housing parts,serving injection-molding production in civil,industrial,medical,automotive and other fields.
Core Components
All core components adopt high-quality industrial-grade parts,including well-known-brand servo motors,integrated drive-control system,precision linear guide rails,high-strength double-stage telescopic arms,high-precision servo flip units,anti-slip vacuum suction cups and special fixtures. Durable and stable-precision components ensure long-term high-speed,accurate and stable equipment operation and reduce downtime risks caused by failures.

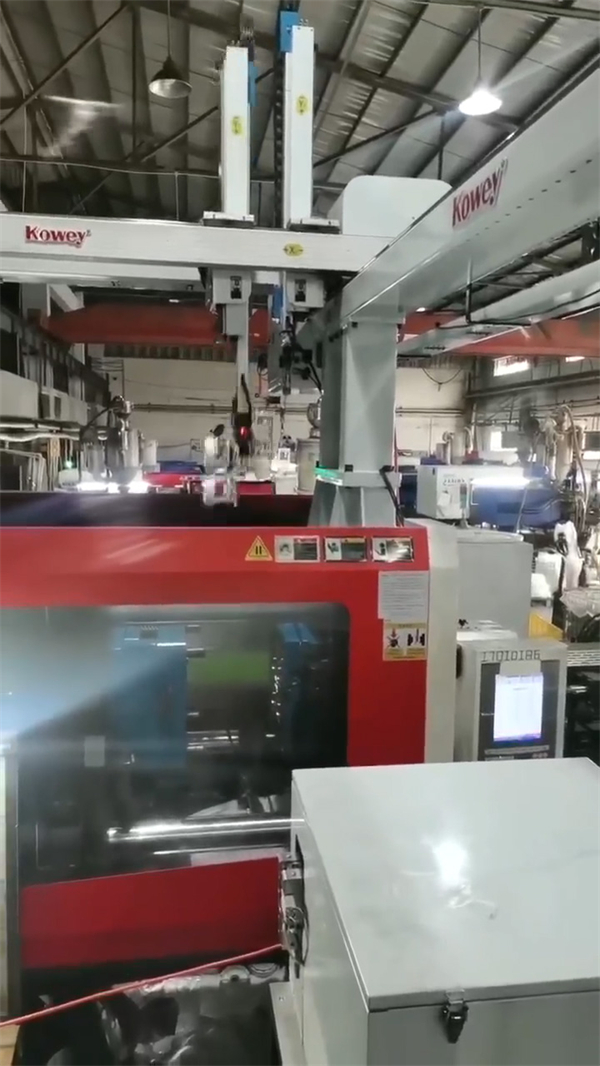

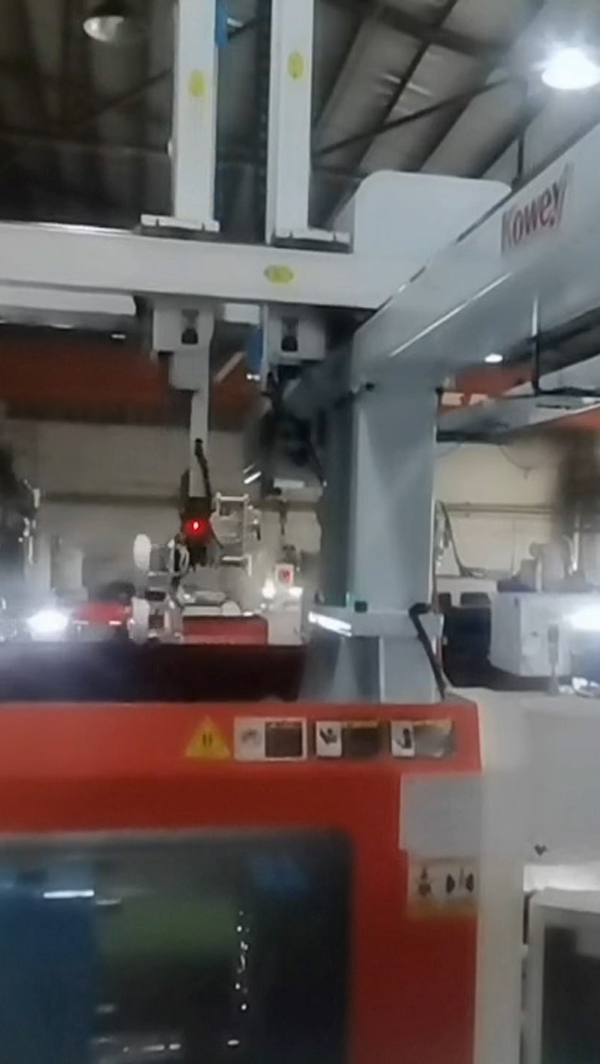

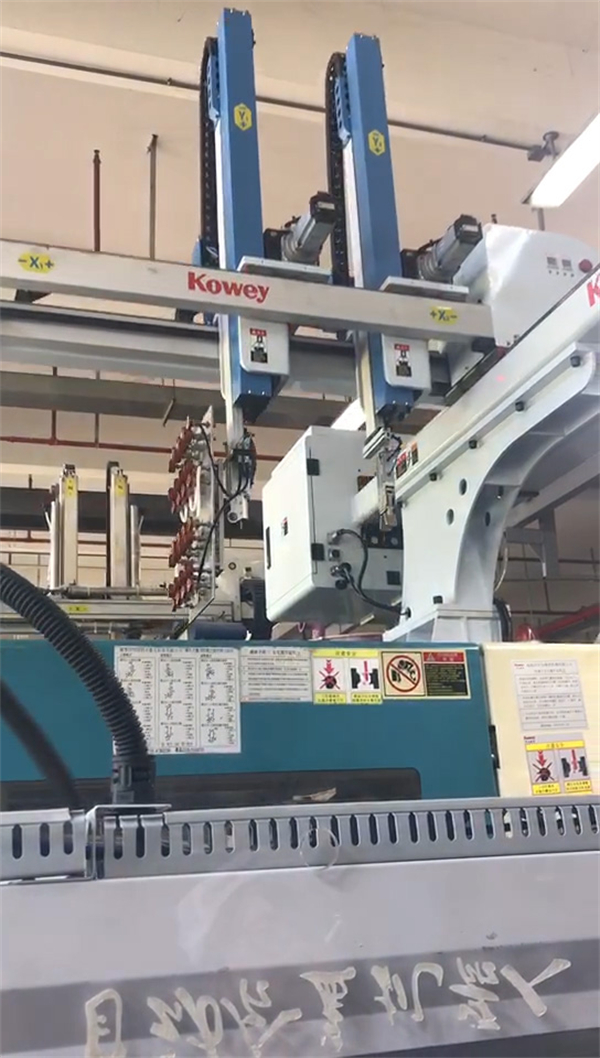

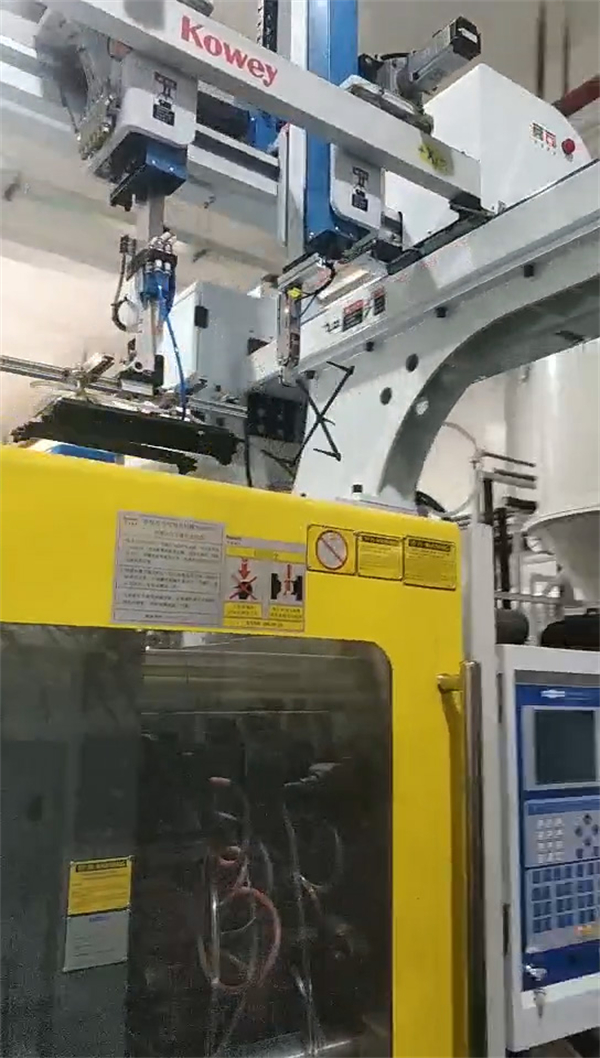

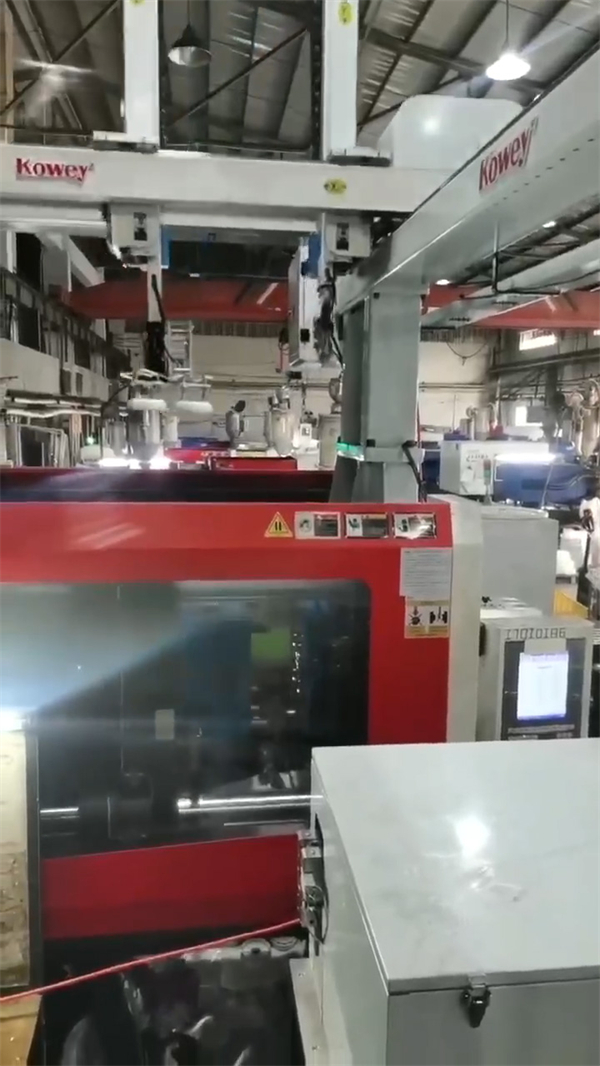

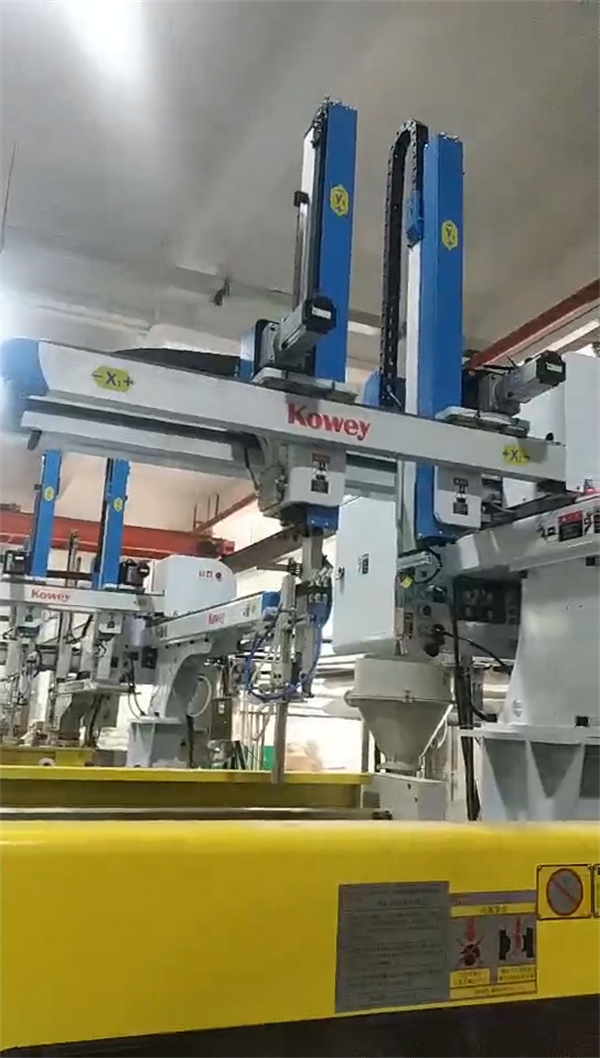

Application Site & Customer Feedback
The equipment has been widely deployed in various injection molding factories with excellent on-site adaptability,simple installation&commissioning and fast connection to existing production lines. On-site,it runs stably with precise picking,effectively eliminating collision,contamination and safety hazards caused by manual picking. One unit can replace multiple workers and greatly boost production efficiency.
Customers generally report low failure rate,easy operation-maintenance and remarkable energy saving,which effectively improve production-line automation level and product yield rate.

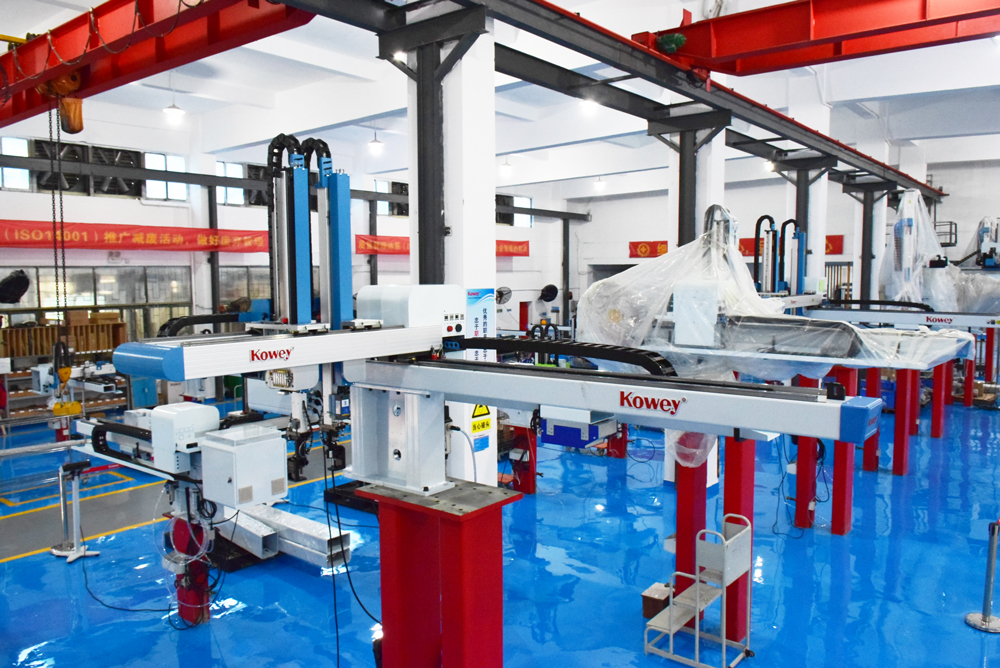

Why Choose KOWEY?
KOWEY focuses on R&D and manufacturing of injection-molding automatic equipment. With years of in-depth industry experience,we possess mature R&D and production systems. This robot has gone through multiple iterations and optimizations with mature craftsmanship and stable performance,balancing quality and cost-performance.
Meanwhile,we provide one-stop services including one-on-one model-selection matching,free commissioning,lifelong technical guidance and rapid after-sales response. Customized solutions are available according to customers' production-line working conditions,helping enterprises realize rapid automation upgrading,reduce costs,improve efficiency and enhance core competitiveness.
