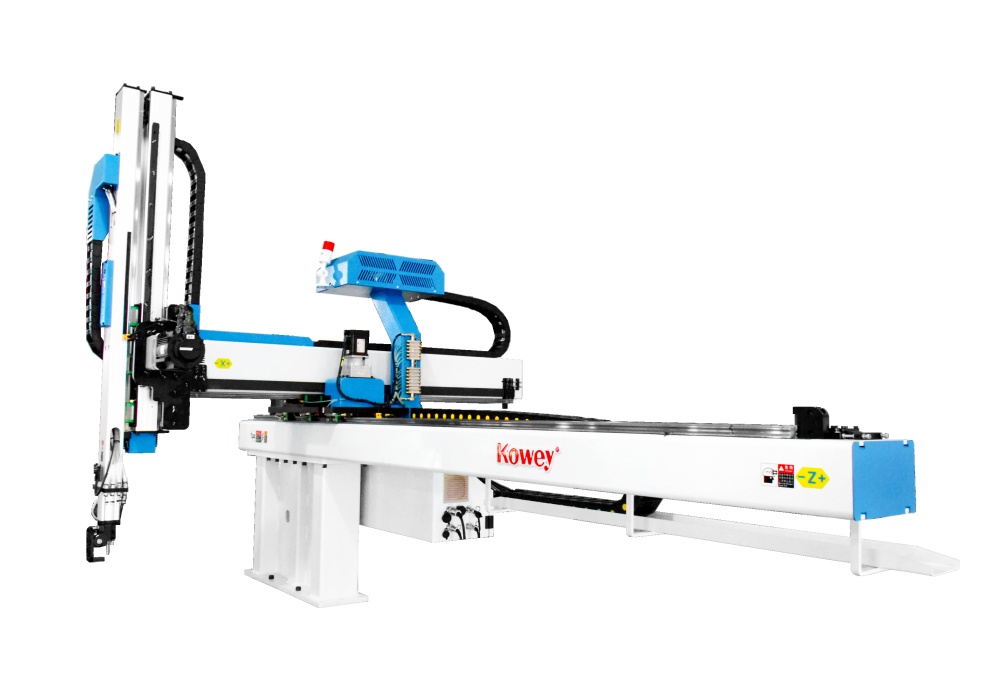

Light Bull Head 3 Axis Double Stage And Single Arm Injection Robot
Equipment Details
Adopting classic bull-head 3-axis servo drive structure with lightweight double-stage single-arm design, it balances structural rigidity and operational flexibility. The whole machine adopts drive-control integrated modular design. Full-range precise servo control on 3 axes ensures smooth and jitter-free motion transitions. Based on double-speed transmission principle, the double-stage arm reduces vertical footprint while speeding up pick-and-place cycles. Ideal for compact workshop layouts. It perfectly matches the cycle time of medium-large injection molding machines to realize automatic and unmanned cyclic operation.
Equipment Advantages
Designed for high-speed, high-frequency continuous production. It runs stably 24/7 and suits mass-production pipeline mode.
Dedicated bull-head main frame greatly enhances mechanical rigidity and running stability, effectively eliminating vibration and offset at high speed with extremely low failure rate.
Ultra-fast 3-axis servo response delivers fast part removal and short cycle time. It drastically improves productivity and cuts idle time compared with manual operation.
High repeat positioning accuracy enables high-precision tasks such as in-mold part picking and insert loading. Highly versatile for various injection-molding applications including daily goods, auto parts and home appliances.
3S centralized lubrication for all guide rails for easy maintenance.
Equipment Parameters
Compatible with 650-1600T injection molding machines; Y-axis stroke: 1500-1900 mm. Full 3-axis AC servo drive; standard repeat positioning accuracy: ±0.1 mm. Rated load for medium-large plastic parts with fast high-speed pick-up and efficient overall cycle time. Supports multi-point positioning & parking, mold data storage, multiple built-in standard programs and custom teach-in programs to adapt flexibly to diverse production processes.
| Light Bull Head 3 Axis Double Stage And Single Arm Injection Robot | ||||
|
Model description |
Unit |
KWⅢ-N1500P |
KWⅢ-N1700P |
KWⅢ-N1900P |
|
I.M.M.Range |
（T） |
650-1000 |
800-1300 |
1000-1600 |
|
L |
mm |
3230 |
3470 |
2670 |
|
W |
mm |
1980 |
2100 |
2100 |
|
H |
mm |
2060 |
2180 |
2300 |
|
X |
mm |
1160 |
1280 |
1280 |
|
Y |
mm |
1500 |
1700 |
1900 |
|
Z |
mm |
2240 |
2480 |
2720 |
|
Gripper angle |
(°) |
90 |
||
|
Max load |
Kg |
15 |
18 |
20 |
|
Minimum take out time |
（S） |
2.5 |
2.8 |
3.1 |
|
Drive system |
V3-AC Servo Motor |
|||
|
Working air pressure |
Kgf/cm² |
5 |
||
|
Air consumption |
NL/cycle |
27 |
31 |
35 |
|
Power |
V |
AC220V±10 50/60HZ Single Phase |
||
|
Weight |
Kg |
646 |
676 |
706 |

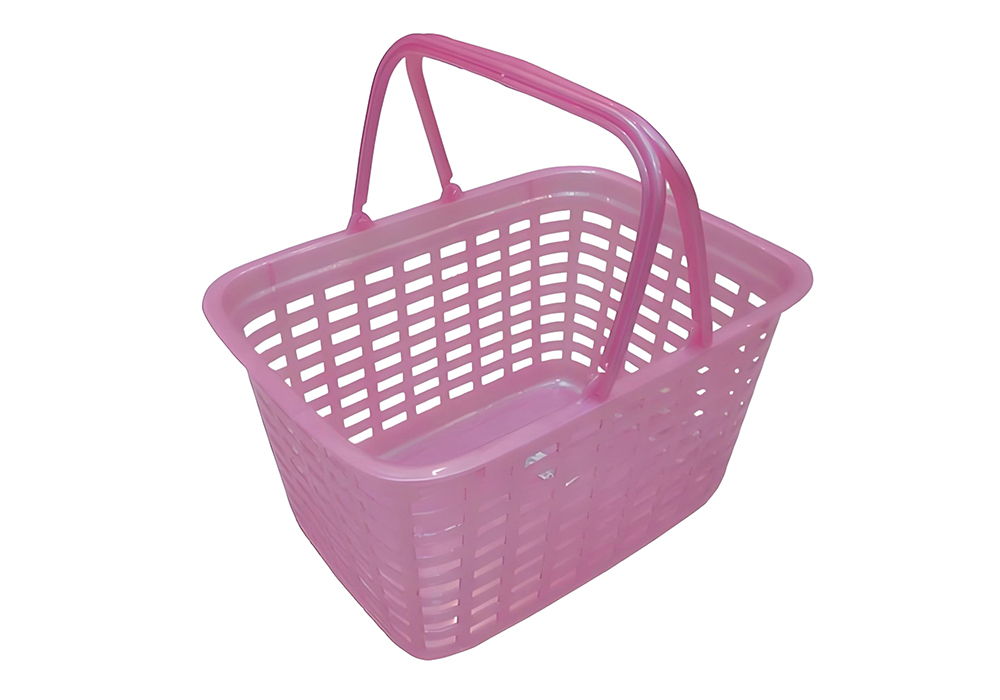

Applicable Products
Widely used for medium-large injection-molded products: home appliance housings, automotive plastic components, sanitary plastic parts, large daily-use plastic articles, industrial plastic sheets, etc. It handles compound processes such as in-mold inserting, IML (in-mold labeling), product sorting and neat stacking to meet multi-industry injection-molding requirements.
Core Components
Globally sourced high-stability core components. Premium industrial-grade parts are adopted, equipped with well-known brand servo motors for strong power, quick response and low-noise operation. High-precision linear guide rails and wear-resistant timing belts guarantee stable long-term high-speed operation. Equipped with intelligent touch-control system, dedicated precision grippers and sensors. Durable low-wear parts greatly reduce failure risk and after-sales maintenance cost.

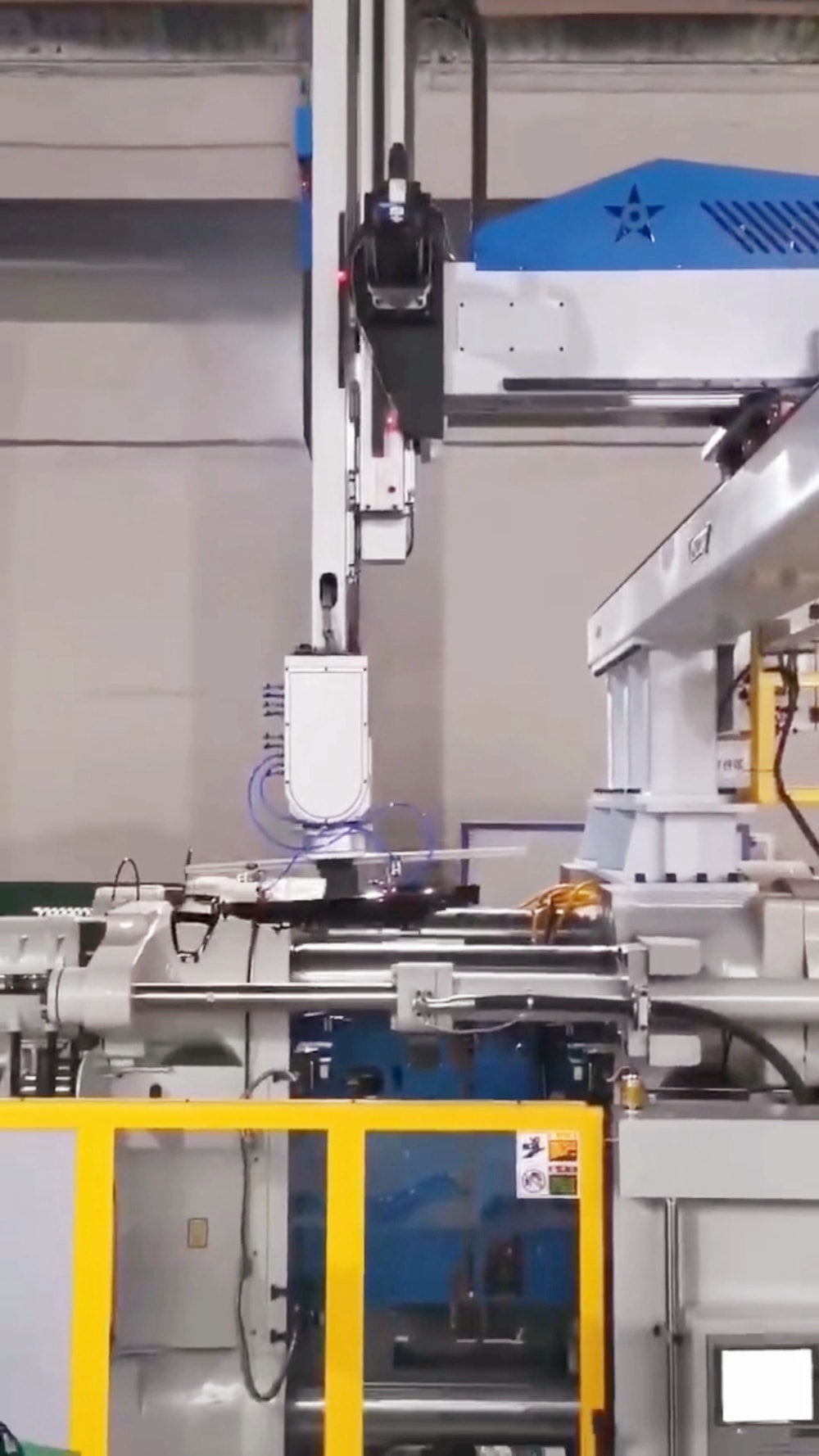

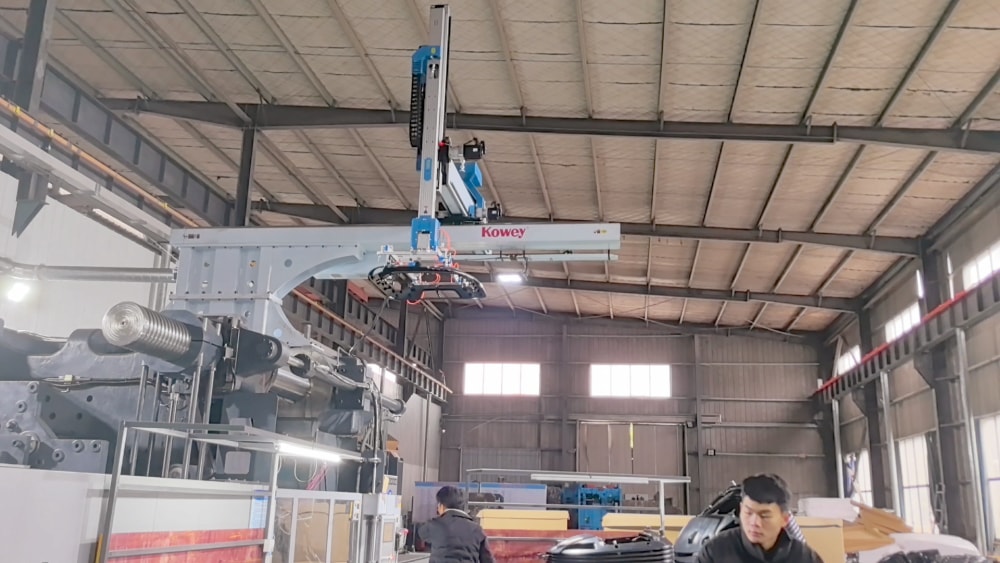

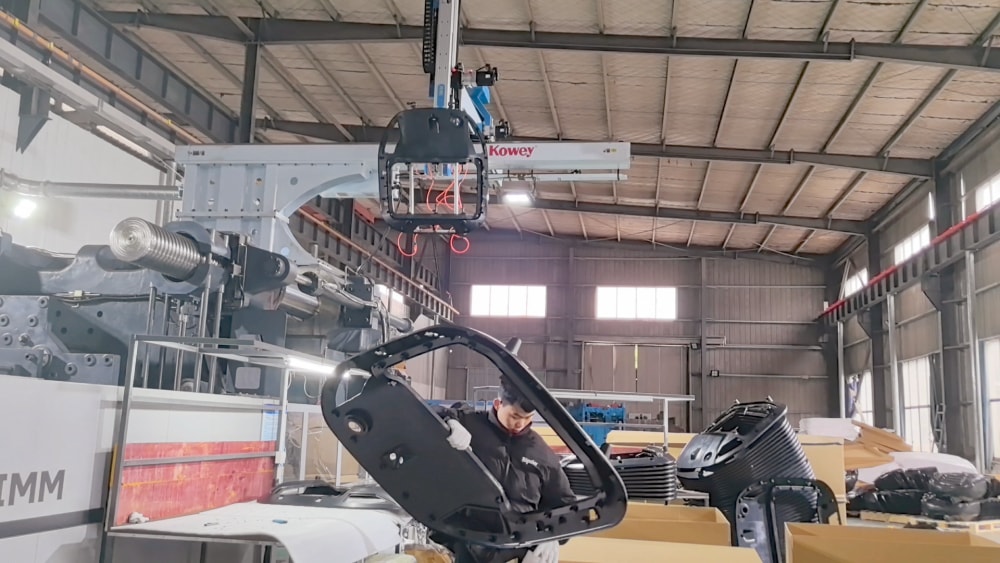

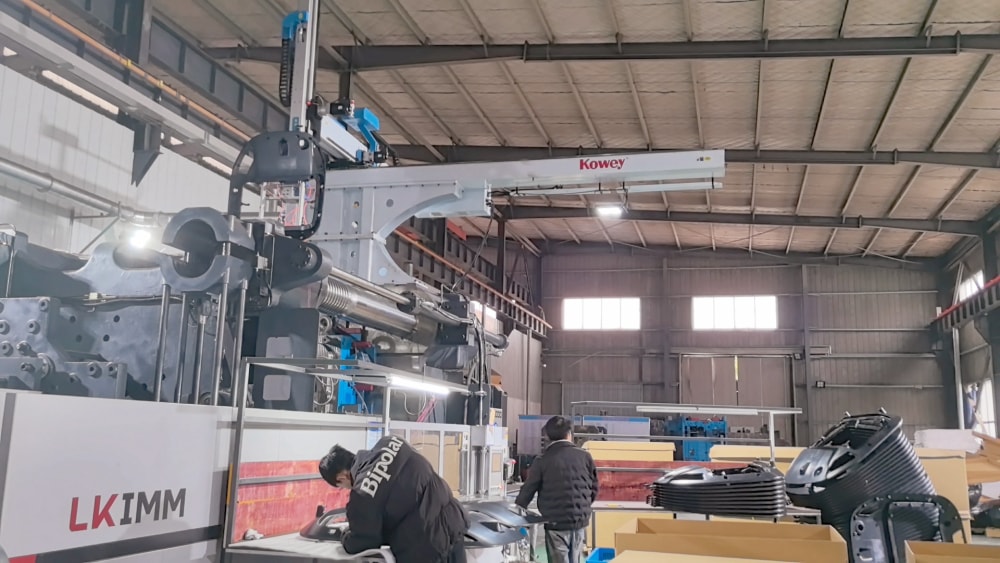

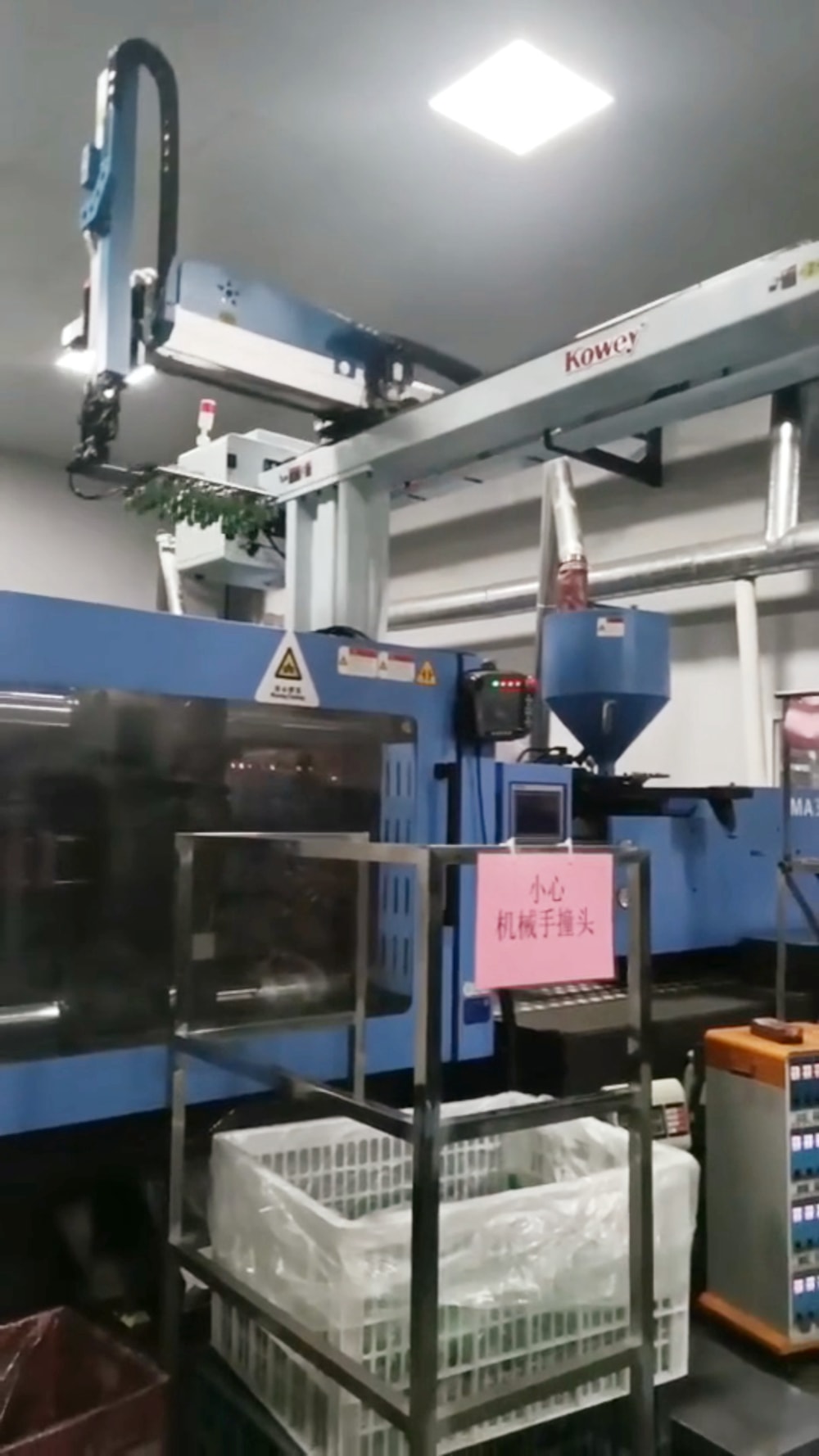

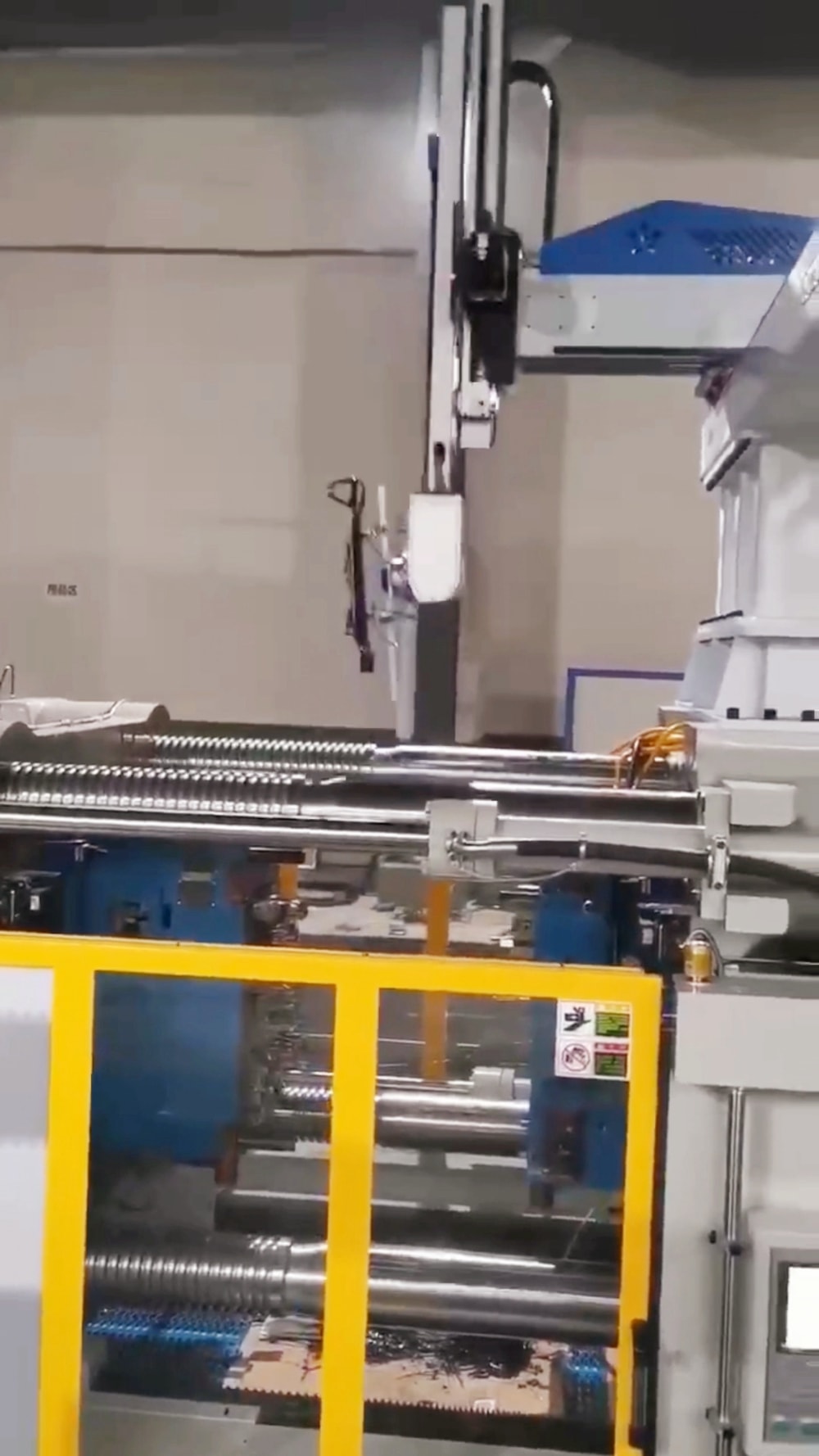

Application Site & Customer Feedback
Widely deployed in injection-molding manufacturers with excellent on-site compatibility for fast integration into existing production lines. Customers consistently report stable performance and low failure rate. It effectively replaces manual repetitive pick-up work, solving pain points of low manual efficiency, positioning deviation and high labor cost. Workshop automation level and output are greatly improved with steady rise of product yield.

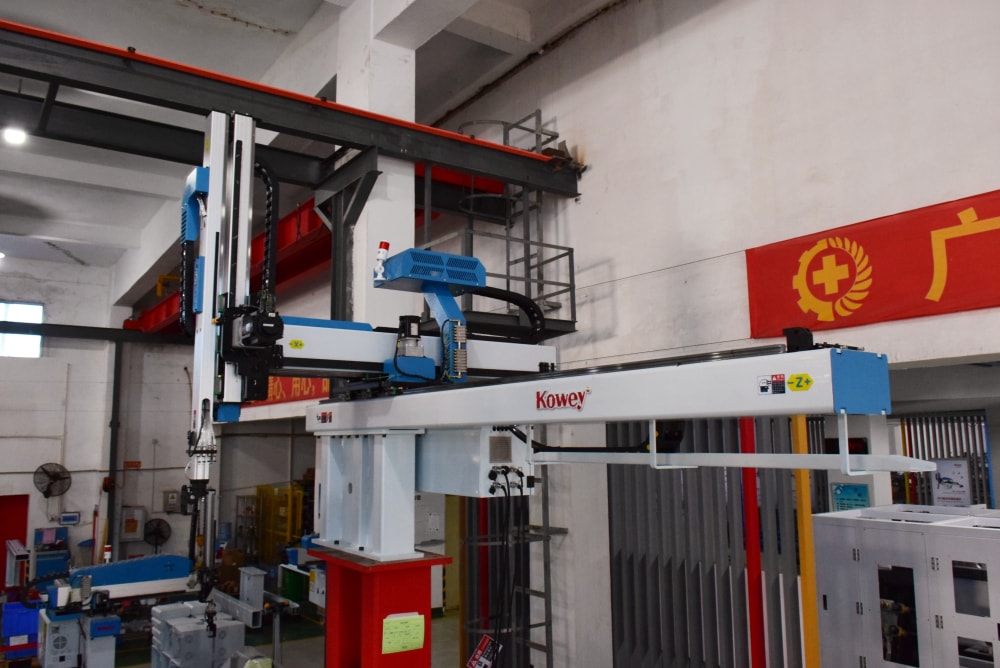

Why Choose KOWEY?
KOWEY has been specializing in R&D and manufacturing of injection automation equipment for years with mature technical system and production processes. This robot has undergone multiple iterations and optimizations, balancing quality, performance and cost-effectiveness with strict quality inspection and compliance. KOWEY provides one-stop services including equipment customization, on-site installation & commissioning, technical training and lifetime after-sales support. We respond rapidly to customer demands to help enterprises cut costs, boost efficiency and achieve intelligent manufacturing upgrade.
