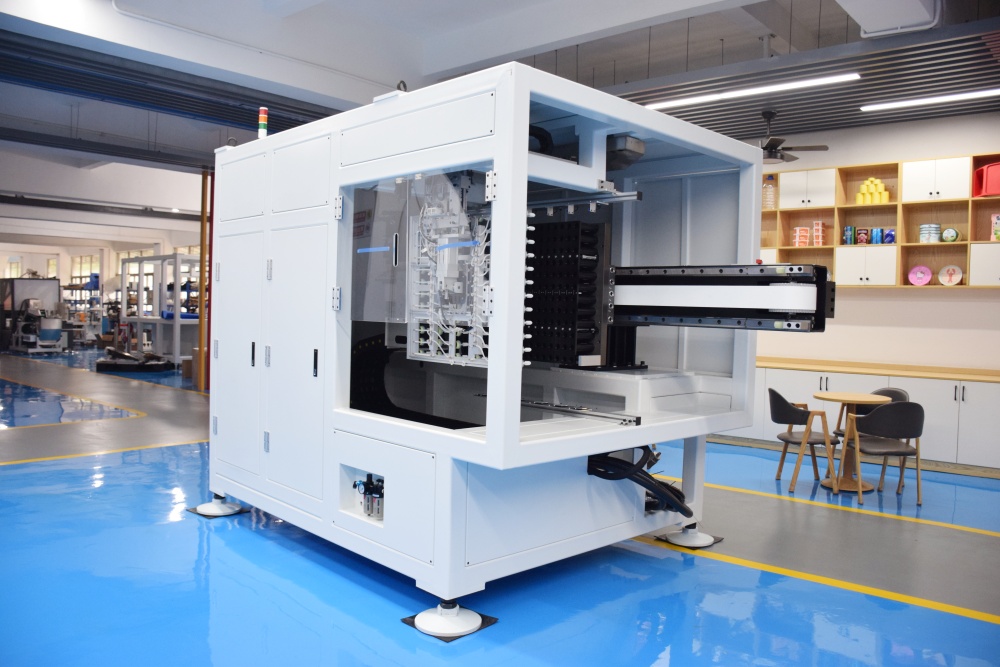

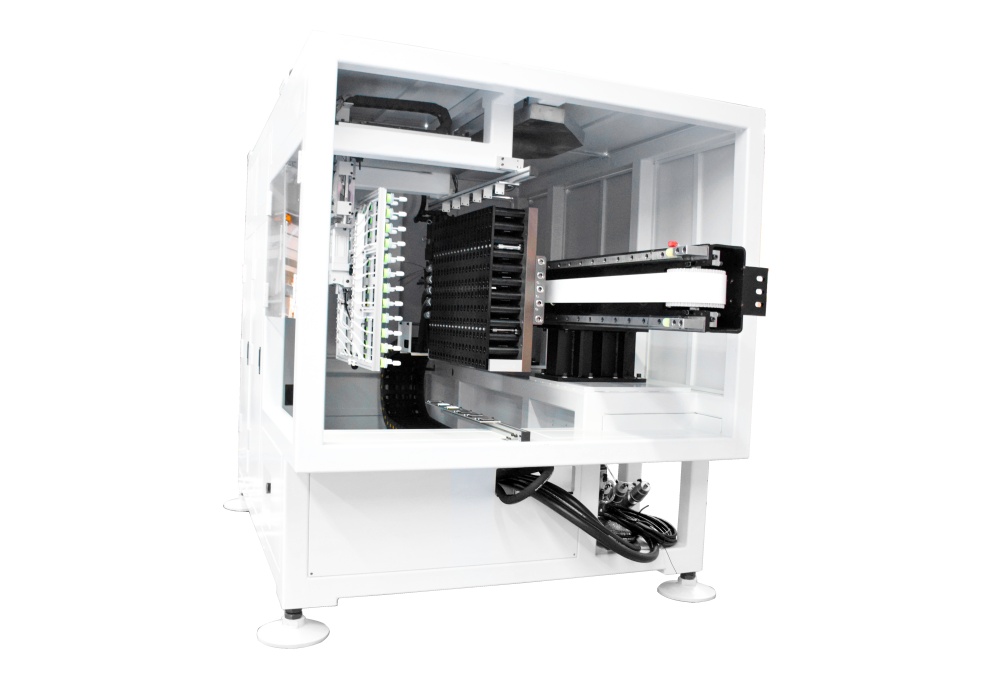

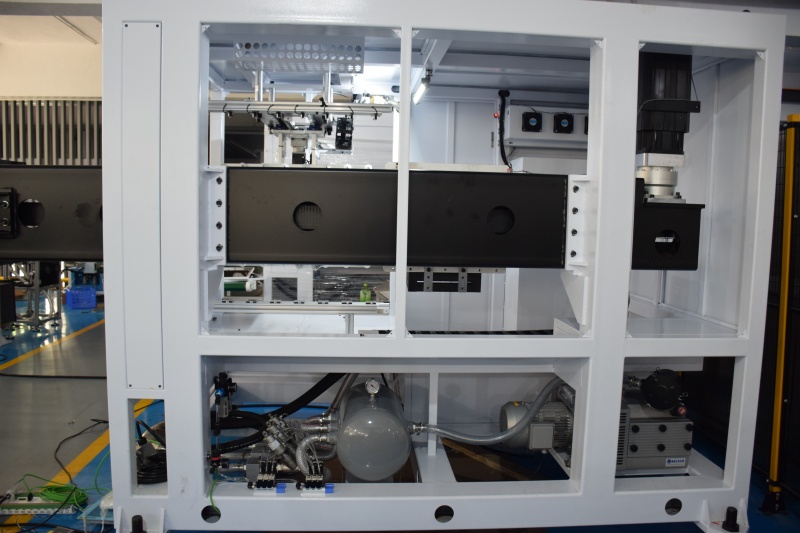

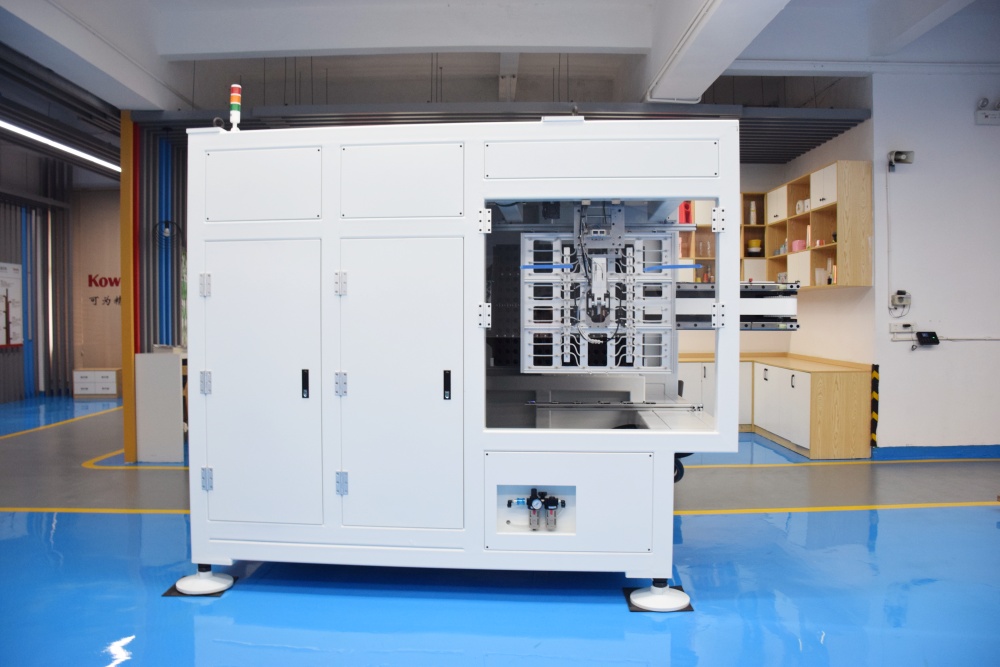

Side Entry PET Preform Take out Robot
Equipment Details

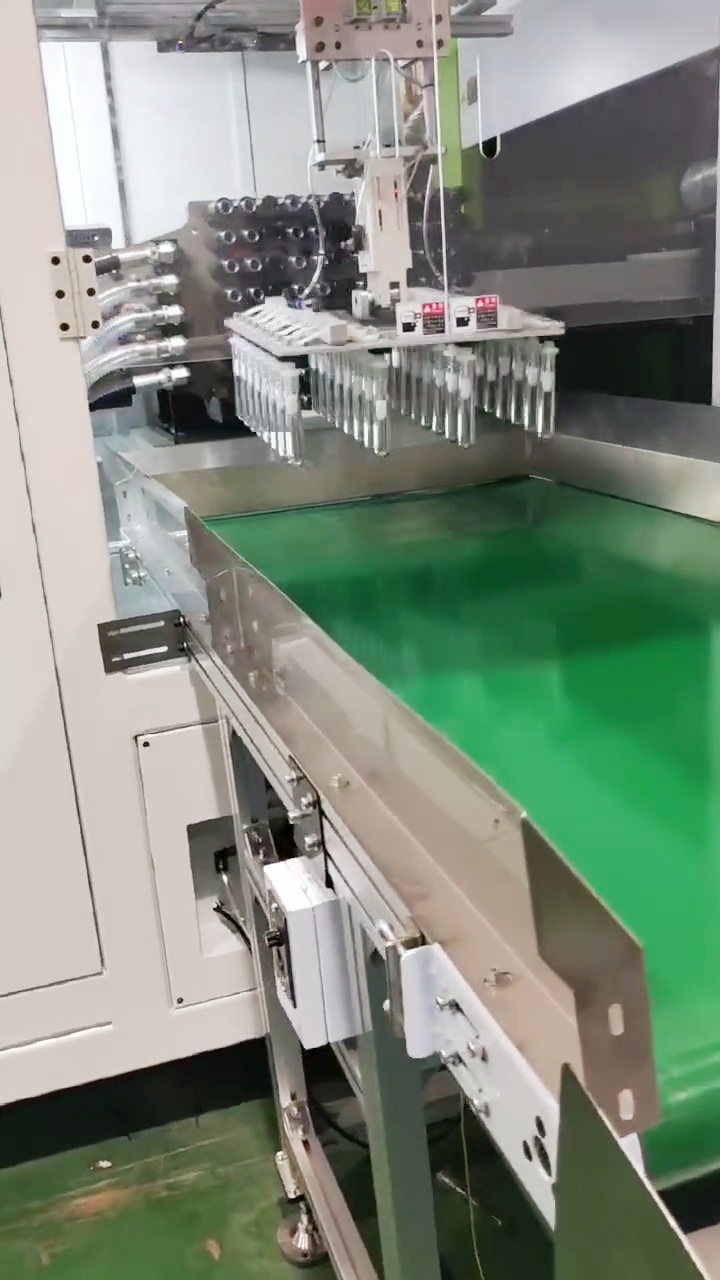

KOWEY Side Entry PET Preform Take‑out Robot adopts proven side‑entry servo‑driven architecture equipped with high‑precision transmission system for smooth motion and accurate positioning. It fully automatically completes the whole workflow including mold opening, preform picking, demolding, placement and resetting. Optimized picking fixtures are designed for thin‑walled and easily‑deformed PET preforms to avoid scratching, deformation and eccentricity during material handling. The machine program adapts to short‑cycle, high‑frequency preform injection‑molding production. It supports quick changeover of multi‑specification molds and is compatible with multiple processes such as in‑mold cooling and post‑mold delayed cooling, suiting continuous and standardized factory injection‑molding production lines.
Equipment Advantages
Suitable for multi‑cavity & thick‑wall products: Optimized mechanical structure enables compatibility with multi‑cavity molds as well as thick‑wall, heavy‑weight PET preform picking. Uniform force prevents preform damage, effectively solving uneven picking in multi‑cavity production and demolding jamming of thick‑wall preforms, greatly improving adaptability for various preform specifications.
Easy‑to‑operate:Equipped with visual intuitive control system with multiple pre‑set programs dedicated to preform production for one‑click activation and fine parameter adjustment. Simple commissioning allows fast adaptation after mold change without complicated operations by specialized technicians. General operators can perform operation, routine commissioning and troubleshooting after basic training, significantly lowering operation barriers and labor costs.
Compact design with small footprint:Compact side‑mounted structure eliminates the overhead space requirement of conventional top‑entry robots. Installed alongside the injection molding machine, it occupies no extra vertical or horizontal workshop space. Ideal for compact layouts of small‑to‑medium injection‑molding workshops, it helps optimize plant layout and improve space utilization.
Boost overall efficiency for long‑term heavy‑duty production:Fast response and short pick‑out cycle precisely match injection machine cycle rhythm, replacing repetitive manual work and raising overall line capacity. Constructed with high‑strength wear‑resistant materials and robust transmission assemblies for anti‑fatigue and durable performance. It supports non‑stop 24‑hour heavy‑duty continuous operation with low failure rates, minimizing downtime losses and satisfying large‑scale mass‑production requirements.
Equipment Parameters
Compatible Injection Molding Machine: 350‑600T
Drive Type: Full servo drive
Picking Accuracy: ±0.05 mm
Applicable Cavity Quantity: 1‑48 cavities, customizable
Single Pick‑out Cycle: Matches standard preform injection‑molding cycle
Power Supply: 220V/380V
Machine Material: Aerospace‑grade aluminum alloy + high‑strength steel structure, wear‑resistant, corrosion‑resistant and long service life
| Side Entry PET Preform Take out Robot | ||
| Project | (Unit) | (Reference) |
| I.M.M.Range | Ton | 350~600 |
| Max line speed | m/sec | 2m/s |
| Max acceleration speed | m/s^2 | 0.2m/s^2 |
| Product arm max load (include gripper) | Kg | 200~500KG* |
| In mold (dry cycle) time | sec | ≤3sec |
| External dimension | mm | 3000x1800x2300* |
| Max stroke into the mold | mm | 1700* |
| Calculate total cycle time | sec | ≤7sec |

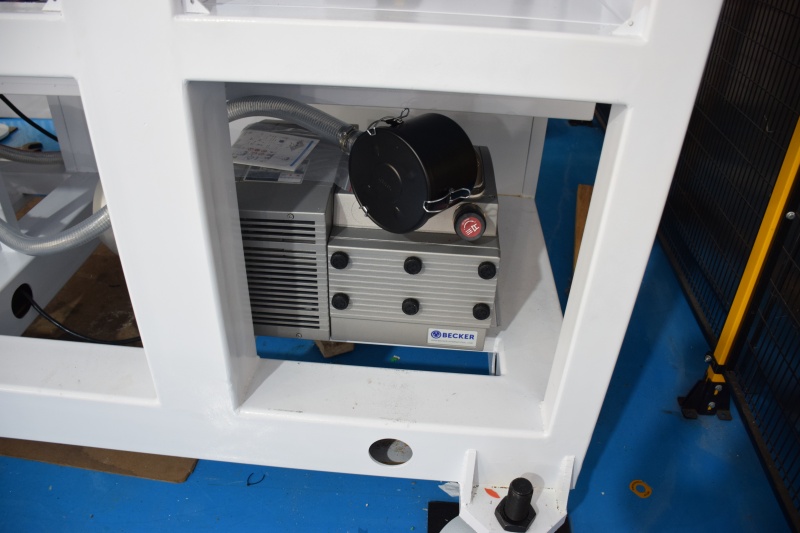

| Air consumption | NL/cycle | According to the pump |
| Working air pressure | Kg/cm² | 6±0.5 |
| Total power | KW | 10~15KW* |
| Repositioning accuracy | mm | 0.05 |
| Weight | Kg | 3T |
| *：According to requirements and product differences, there may be slight changes in the content, and the final product will be based on the actual situation | ||

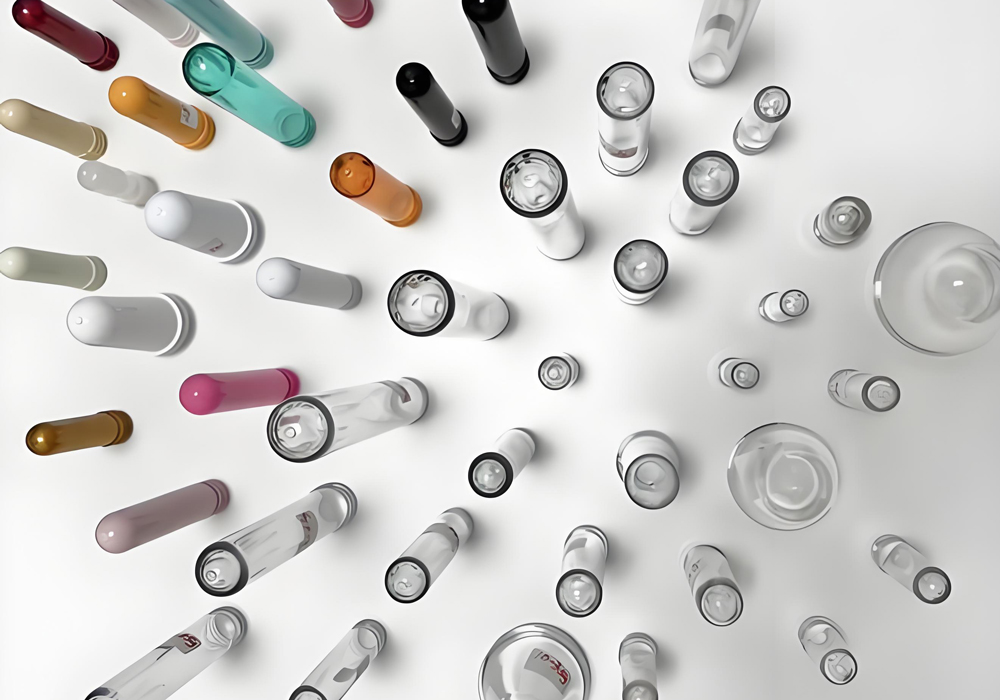

Applicable Products

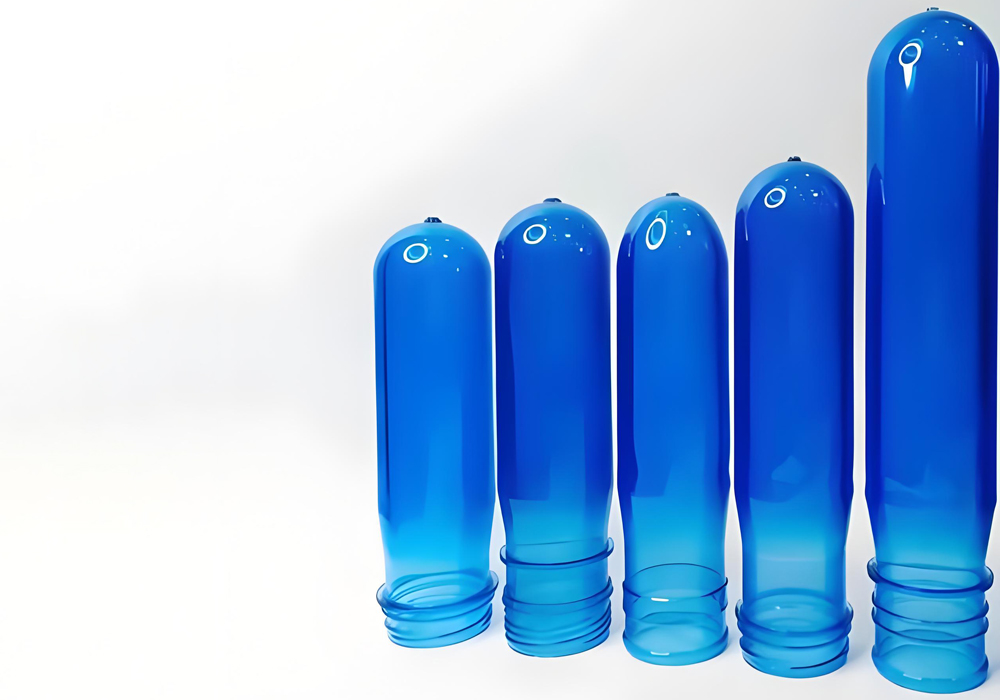

KOWEY Side Entry PET Preform Take‑out Robot works with various PET preforms, including preforms for drinking‑water bottles, carbonated‑drink bottles, edible‑oil bottles, daily‑chemical containers and pharmaceutical packaging bottles. It handles picking tasks for thin‑wall, thick‑wall, light‑, medium‑ and heavy‑weight preforms, covering preform production in food, daily‑chemical, pharmaceutical and packaging industries.

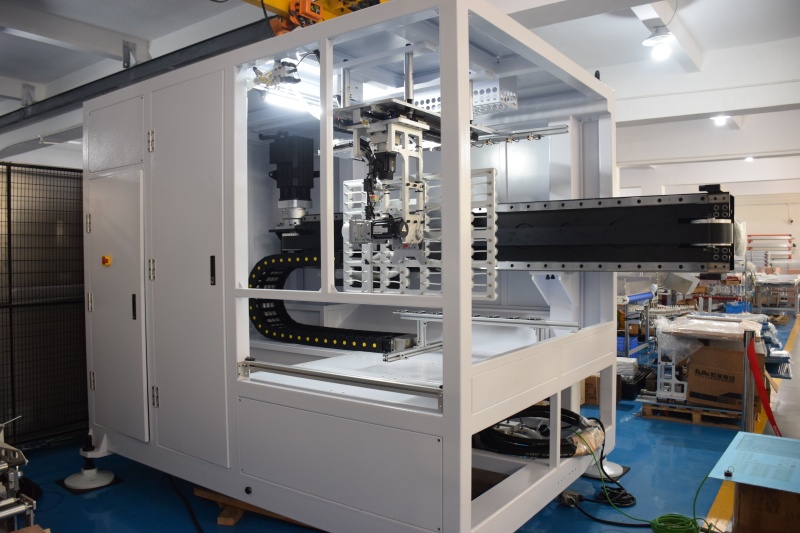

Core Components

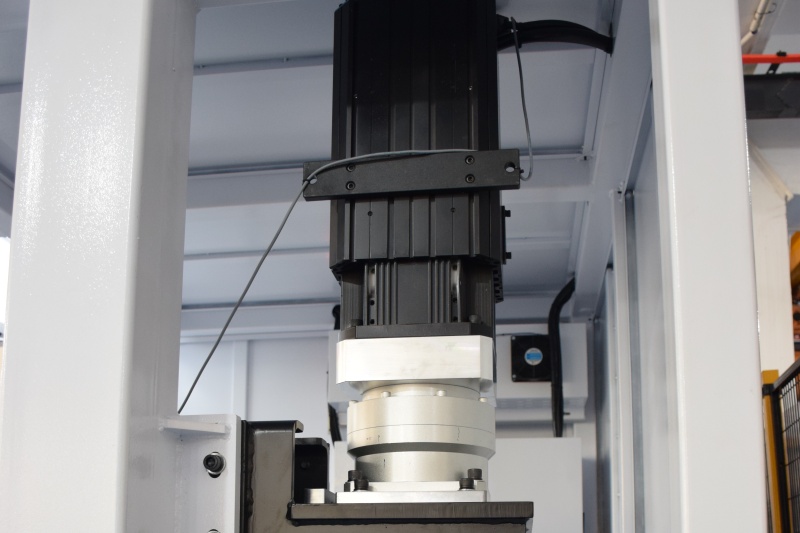

All core parts adopt high‑quality industrial‑grade components to guarantee stable machine performance. It is fitted with well‑known‑brand servo motors and precision reducers for accurate and quiet transmission; custom anti‑slip and anti‑scratch preform‑picking fixtures for multi‑specification preforms; original intelligent PLC control system with fast response and stable computation; high‑strength wear‑resistant linear guides and precision gear‑rack assemblies that resist wear and deformation without accuracy degradation over long‑time operation. Core hardware ensures long‑term reliable equipment performance.

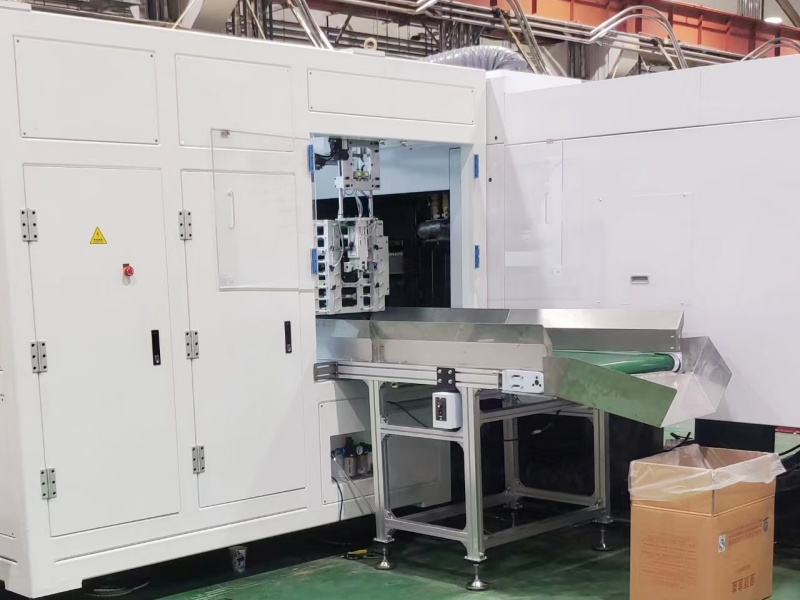

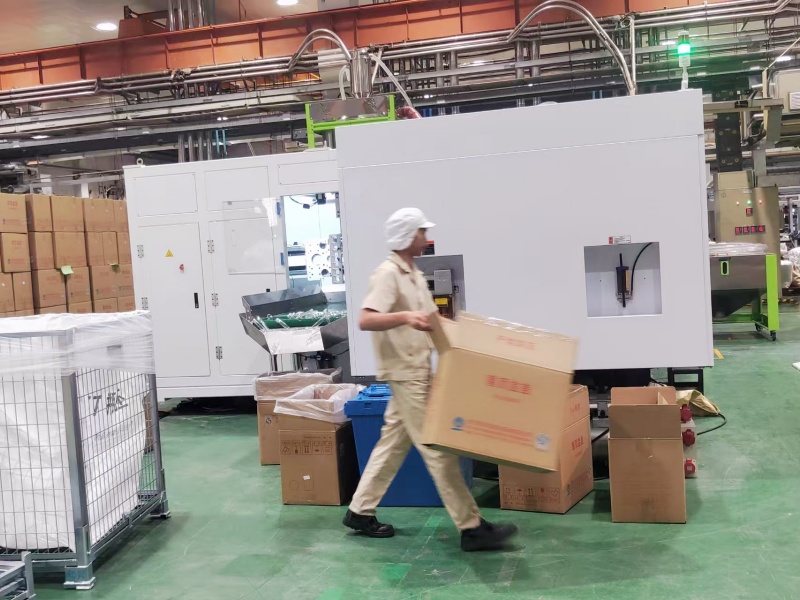

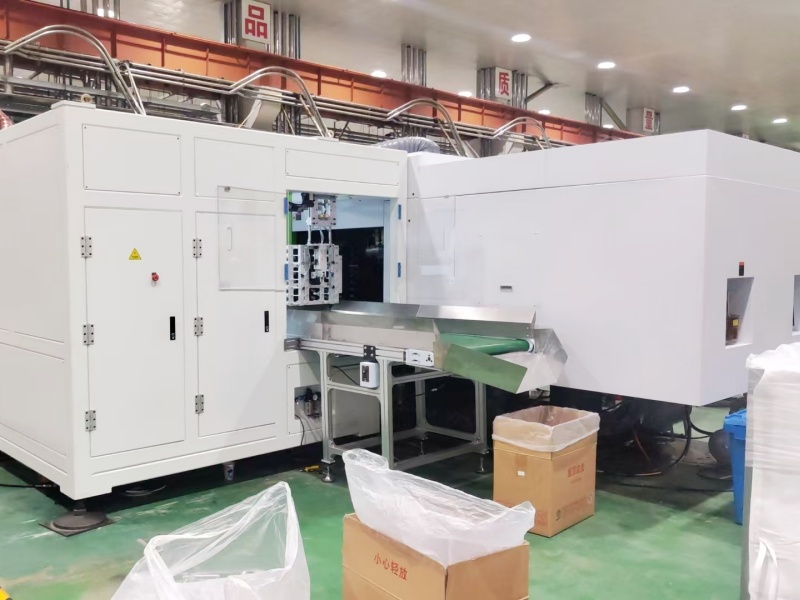

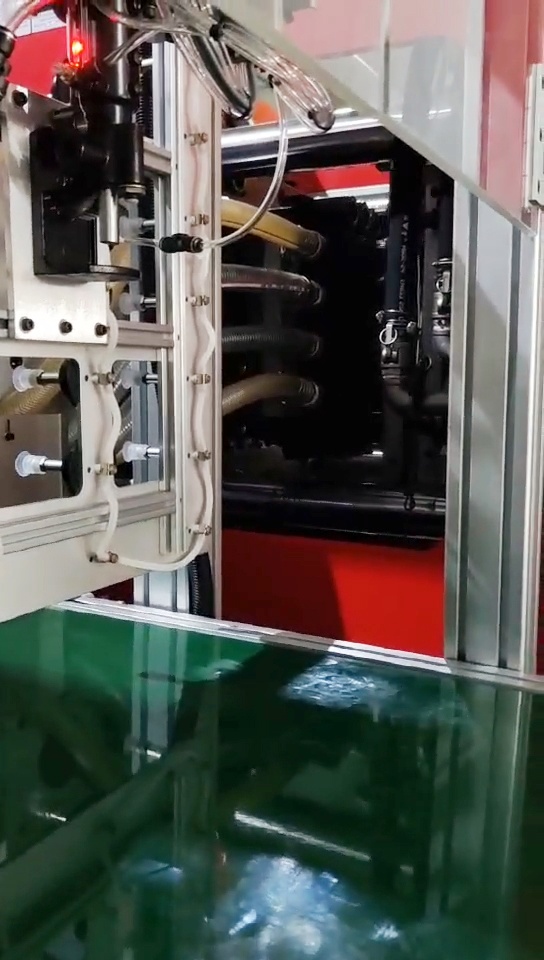

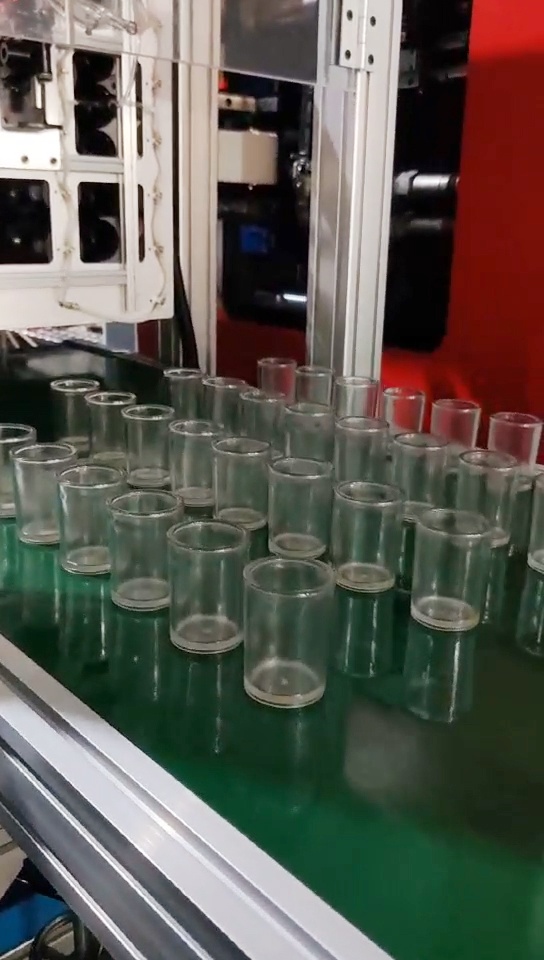

On‑site Application & Customer Feedback
KOWEY Side Entry PET Preform Take‑out Robot has been widely deployed among major domestic preform injection‑molding manufacturers with excellent field adaptability. On‑site operation shows outstanding performance in multi‑cavity mass production with zero scratching and zero deformation on preforms, greatly raising product yield. Customers consistently report high automation level that effectively replaces manual labor and cuts manpower input, lifting overall line efficiency by 20%‑30%. Featuring stable operation, low failure rate and easy daily maintenance, the robot shows negligible performance drop under prolonged heavy‑duty production, greatly reducing production and maintenance costs with remarkable mass‑production results.
Why Choose KOWEY?
KOWEY has years of experience in R&D, manufacturing and customized service for injection‑molding robots, with deep expertise in PET preform automated production and proven equipment development & implementation experience. Compared with competing products, KOWEY side‑entry preform robots are purpose‑built for preform‑production pain points with optimized structure, higher accuracy and broader compatibility. We deliver one‑stop full‑range professional services covering model selection, on‑site installation & commissioning, technical training and after‑sales support. With high cost‑performance and robust durability, KOWEY provides personalized customization according to customer mold specifications and production requirements, helping enterprises realize automation upgrade for preform production, achieve cost reduction & efficiency improvement and strengthen market competitiveness.
